470415YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

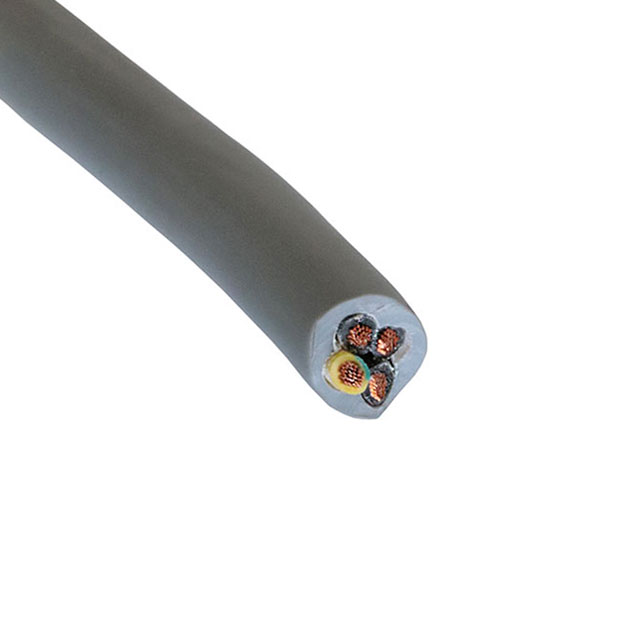

CABLE 4COND 15AWG GRAY 100M
| Part | Conductor Strand [custom] | Conductor Strand [diameter] | Features | Jacket Color | Voltage | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Number of Conductors | Wire Gauge | Conductor Insulation | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 28 | 0.0098 in | Chemical Resistant Oil Resistant UV Resistant | Gray | 300 VDC | Poly-Vinyl Chloride (PVC) | 328.1 ft | 100 m | 0.0315 in | 0.8 mm | 4 | 15 AWG | Poly-Vinyl Chloride (PVC) | Industrial | 7.32 mm | 0.288 " | Copper Bare | Multi-Conductor | 80 °C | -40 C | ||
ALPHA WIRE | 28 | 0.0098 in | Chemical Resistant Oil Resistant UV Resistant | Gray | 300 VDC | Poly-Vinyl Chloride (PVC) | 984.3 ft | 300 m | 0.0315 in | 0.8 mm | 4 | 15 AWG | Poly-Vinyl Chloride (PVC) | Industrial | 7.32 mm | 0.288 " | Copper Bare | Multi-Conductor | 80 °C | -40 C | 1 m 20 m | 3.28 ft 65.62 ft |
