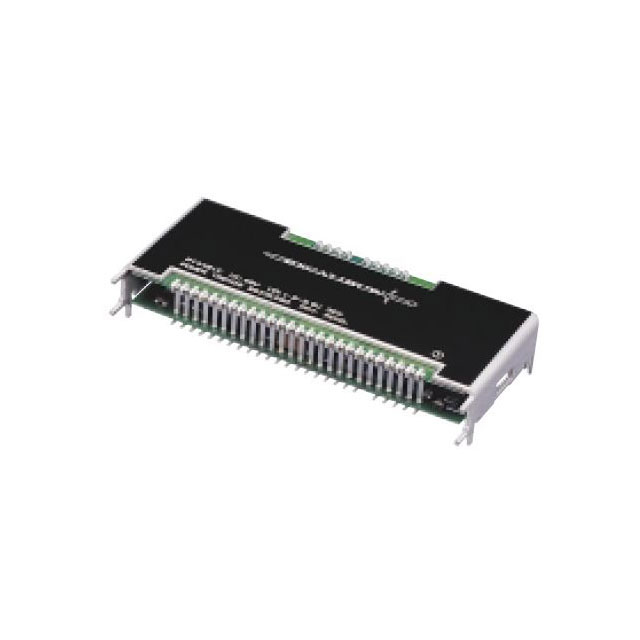

PT4482 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 1.3-3.5V 100W
| Part | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Mounting Type | Features | Applications | Package / Case | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Number of Outputs | Control Features | Power (Watts) | Voltage - Isolation | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 30 A | 36 V | Surface Mount | OCP OTP OVP Remote On/Off UVLO | ITE (Commercial) | 26-SMD Module | Isolated Module | 85 °C | -40 °C | 1.3 V | 3.5 V | 1 | Active Low Enable | 100 W | 1.5 kV | 75 V | 1.62 in | 0.5 in | 41.1 mm | 3.61 " | 91.7 mm | 12.7 mm | 89 % |
Texas Instruments | 30 A | 36 V | Through Hole | ITE (Commercial) | 26-SIP Module | Isolated Module | 85 °C | -40 °C | 1.3 V | 3.5 V | 1 | 100 W | 1.5 kV | 75 V | 89 % |
