EG21 Series

Manufacturer: Quectel

Catalog

RF TXRX MOD CEL/NAV CARD

Part	Utilized IC / Part	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Protocol	Package / Case	Power - Output	Mounting Type	Antenna Type	Serial Interfaces	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]
Quectel EG21GGB-MINIPCIE	MDM9207-1	-110.5 dBm	75 ░C	-30 ░C	Cellular Navigation	BeiDou EDGE Galileo GLONASS GNSS GPRS GPS GSM HSPA+ LTE UMTS WCDMA	Module	33 dBm	Card Edge	Antenna Not Included	I2C PCM UART USB	42 Mbps	3.6 V	3 V
Quectel EG21GGB-128-SGNS	MDM9207-1	-110.5 dBm	75 ░C	-30 ░C	Cellular Navigation	BeiDou EDGE Galileo GLONASS GNSS GPRS GPS GSM HSPA+ LTE UMTS WCDMA	Module	33 dBm	Card Edge	Antenna Not Included	I2C PCM UART USB	42 Mbps	3.6 V	3 V

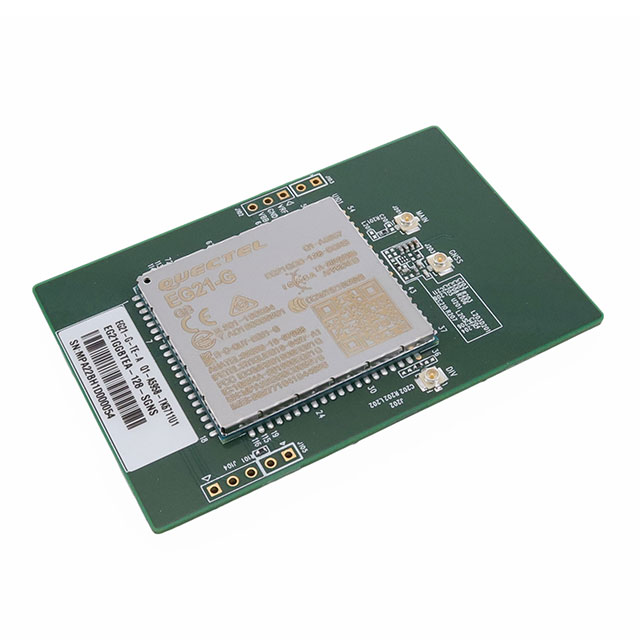

Quectel EG21GGBTEA-128-SGNS		-110.5 dBm	75 ░C	-30 ░C	Cellular Navigation	BeiDou EDGE Galileo GLONASS GNSS GPRS GPS GSM HSPA+ LTE UMTS WCDMA	Module	33 dBm	Card Edge	Antenna Not Included	I2C PCM UART USB	42 Mbps	3.6 V	3 V
Quectel EG21GGB-MINIPCIE-S	MDM9207-1	-110.5 dBm	75 ░C	-30 ░C	Cellular Navigation	BeiDou EDGE Galileo GLONASS GNSS GPRS GPS GSM HSPA+ LTE UMTS WCDMA	Module	33 dBm	Card Edge	Antenna Not Included	I2C PCM UART USB	42 Mbps	3.6 V	3 V
