R12507 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

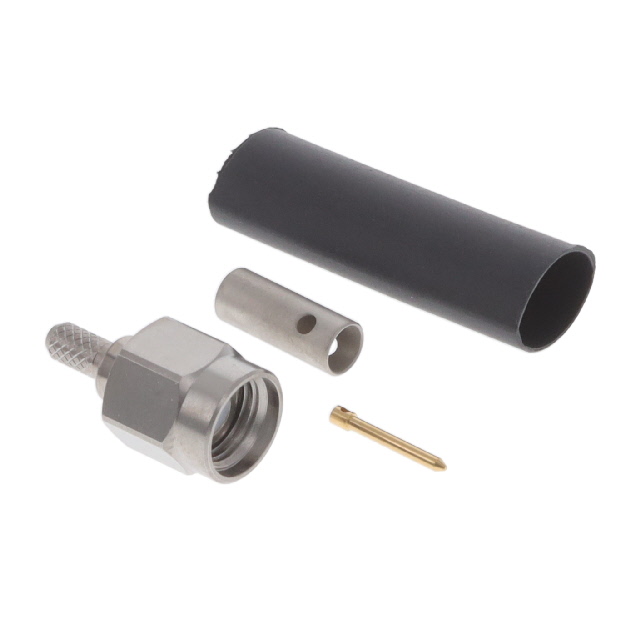

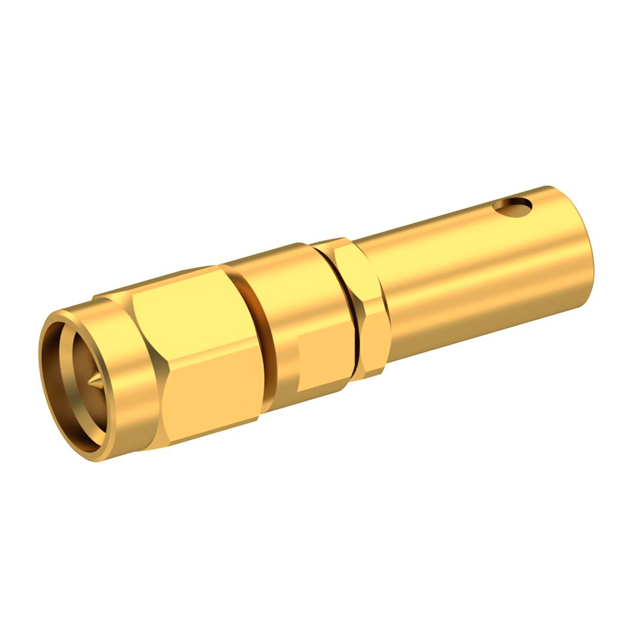

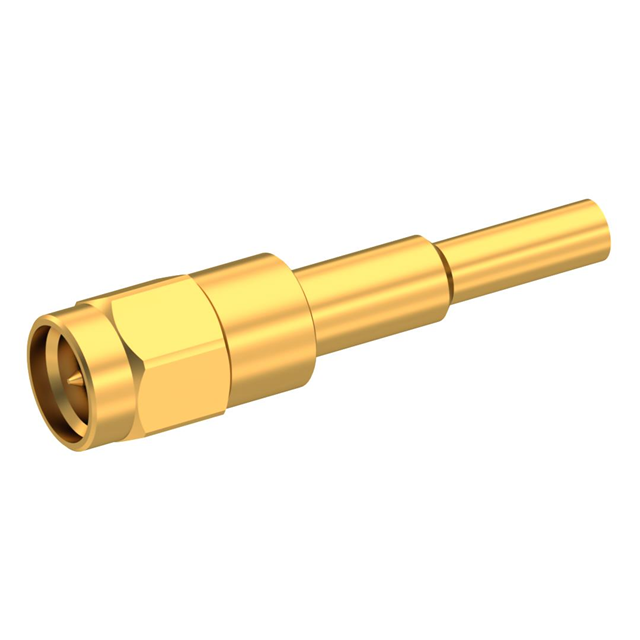

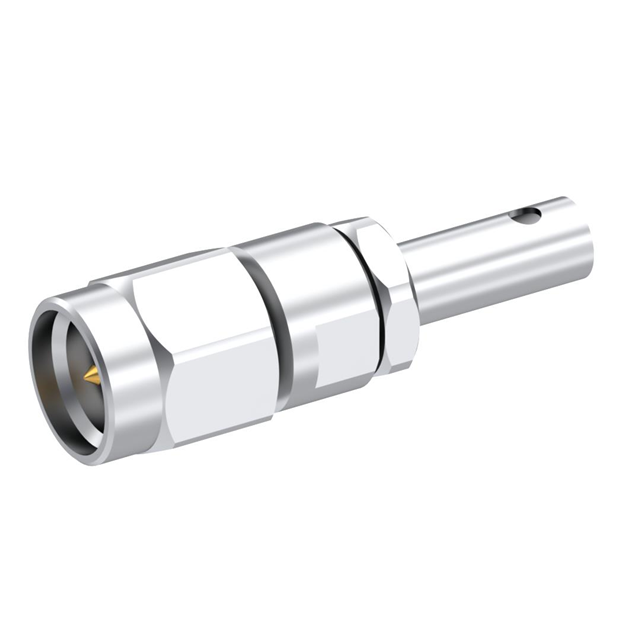

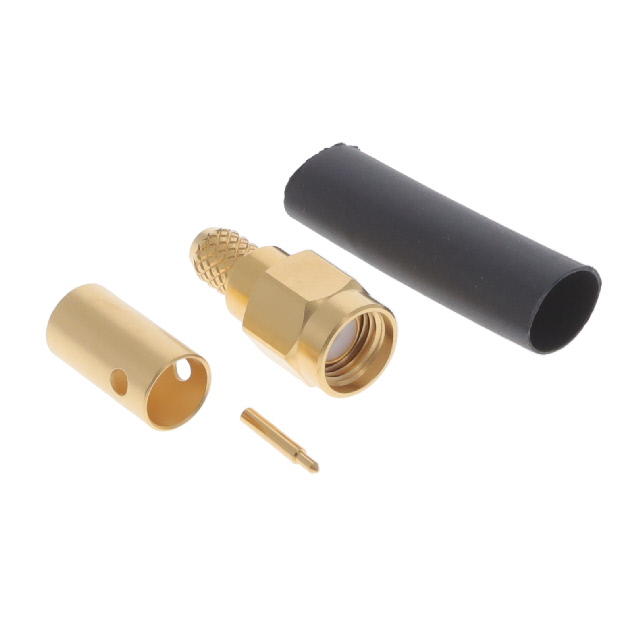

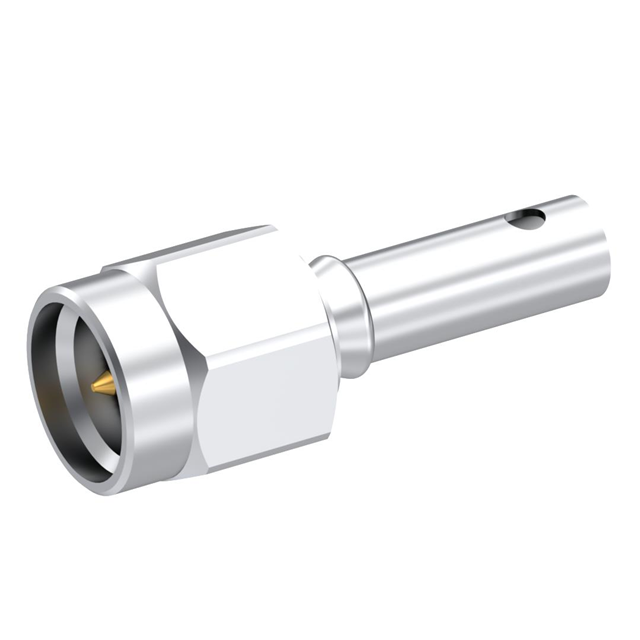

SMA / STRAIGHT PLUG FULL CRIMP T
| Part | Center Contact Plating | Dielectric Material | Body Material | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Frequency - Max [Max] | Connector Style | Impedance | Connector Type | Mounting Type | Shield Termination | Center Contact Material | Housing Color | Cable Group | Contact Termination | Number of Ports | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | -65 ░C | 165 °C | 250 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | Gold | RG-316 Double Braid | Crimp | 1 | Threaded | |
Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | -65 ░C | 165 °C | 250 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | Gold | RG-316 Double Braid | Crimp | 1 | Threaded | |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | -65 ░C | 165 °C | 250 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | Silver | RG-316 Double Braid | Crimp | 1 | Threaded | ||
Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | -65 ░C | 165 °C | 250 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | Gold | RG-174 | Crimp | 1 | Threaded | 316 |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | -65 ░C | 165 °C | 335 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Solder | Brass | Gold | RG-58 | Crimp Solder | 1 | Threaded | 141 |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | -65 ░C | 165 °C | 500 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Clamp | Brass | Gold | RG-58 | Crimp Solder | 1 | Threaded | 141 | |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | -65 ░C | 165 °C | 250 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | Gold | RG-316 Double Braid | Crimp | 1 | Threaded | |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | -65 ░C | 165 °C | 250 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | Silver | RG-174 | Crimp | 1 | Threaded | 316 | |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | -65 ░C | 165 °C | 250 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Clamp | Brass | Silver | 316 RG-188 | Crimp Solder | 1 | Threaded | ||
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | -65 ░C | 165 °C | 170 V | 12.4 GHz | SMA | 50 Ohms | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | Silver | RG-174 | Crimp | 1 | Threaded | 316 |
