19200320 Series

Manufacturer: HARTING

Catalog

HAN A HOOD SIDE ENTRY HC 2 LEVERS M32 ROHS COMPLIANT: NA

Part	Housing Finish	Size	Housing Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Lock Location	Thread Size	Connector Type	Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
HARTING 19200320537	Powder Coated	32 A	Gray	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Locking Clip (2) on Hood	M32	Hood	Side Entry	56 mm	82 mm	2.205 in	79 mm	3.228 "	3.11 in

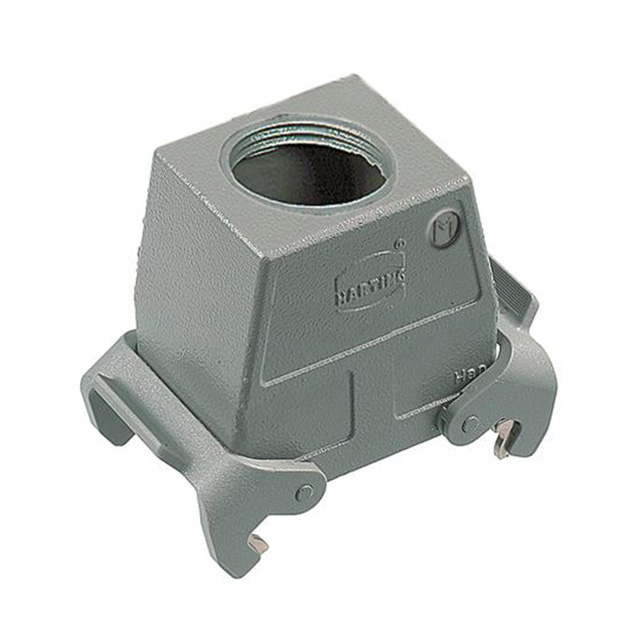

HARTING 19200320437	Powder Coated	32 A	Gray	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Locking Clip (2) on Hood	M32	Hood	Top Entry	56 mm	82 mm	2.205 in	79 mm	3.228 "	3.11 in

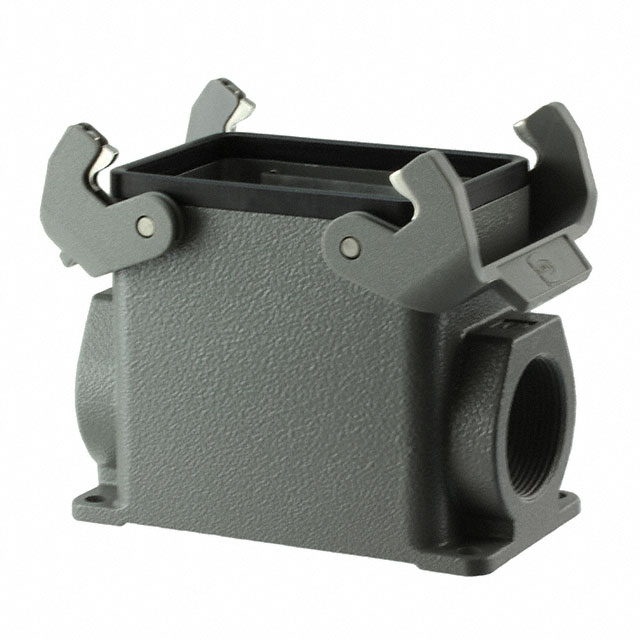

HARTING 19200320272	Powder Coated	32 A	Gray	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Locking Clip (2) on Base Bottom	M32	Base - Box Mount	Side Entry			57 mm		106 mm	81.8 mm	Feed Through	2.244 "	4.173 "	3.22 "

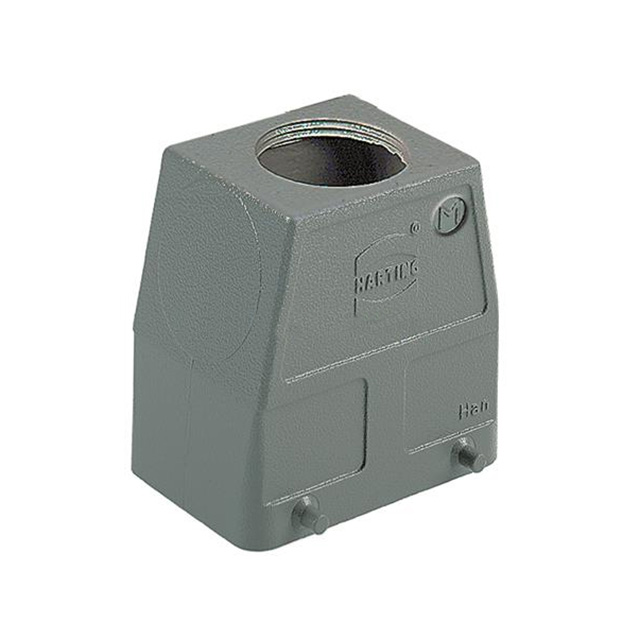

HARTING 19200320426	Powder Coated	32 A	Gray	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Locking Clip (2) on Base Bottom	M25	Hood	Top Entry	56 mm	82 mm	2.205 in	79 mm	3.228 "	3.11 in

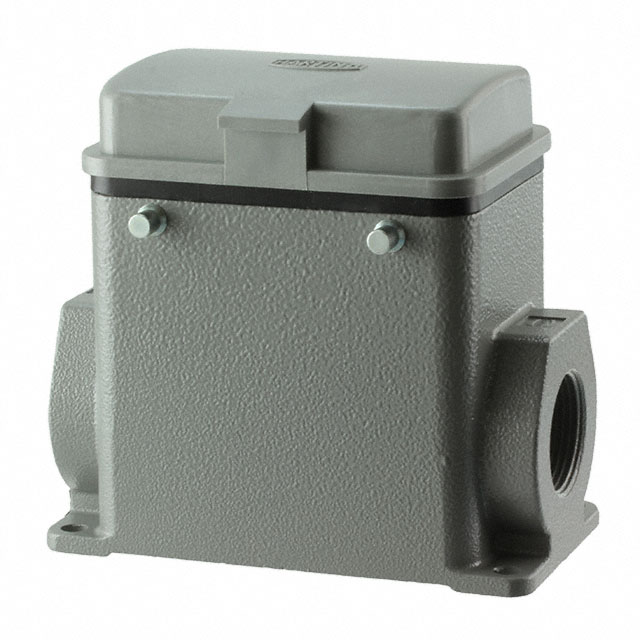

HARTING 19200320226	Powder Coated	32 A	Gray	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Locking Clip (2) on Hood	M25	Base - Box Mount	Side Entry			57 mm		106 mm	81.8 mm	Cover	2.244 "	4.173 "	3.22 "

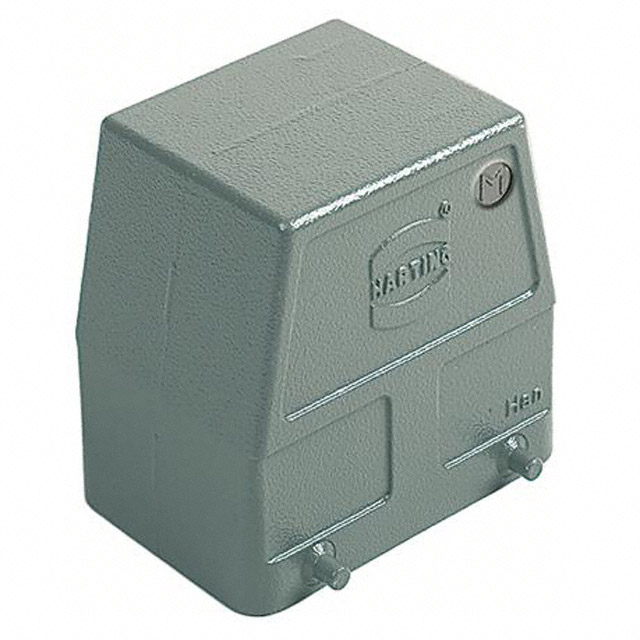

HARTING 19200320527	Powder Coated	32 A	Gray	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Locking Clip (2) on Base Bottom	M32	Hood	Side Entry	56 mm	82 mm	2.205 in	79 mm	3.228 "	3.11 in
