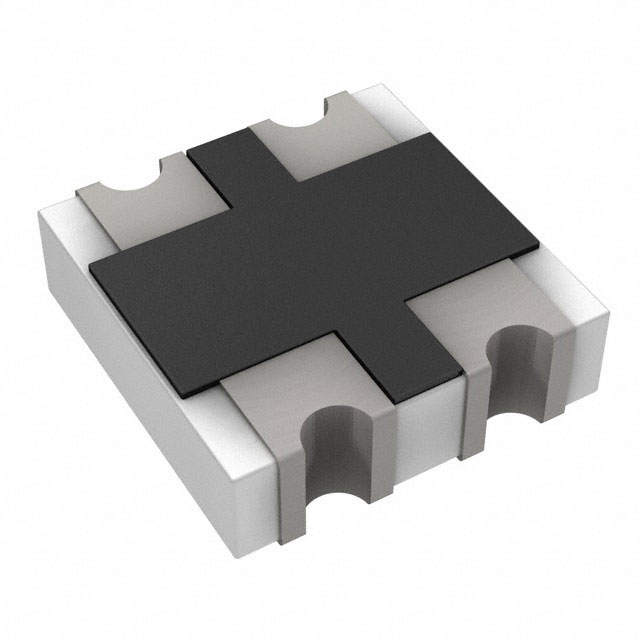

TC122-JR Series

Manufacturer: YAGEO

Catalog

RES ARRAY 2 RES 1K OHM 0404

Part	Resistance	Qualification	Number of Pins	Tolerance	Applications	Number of Resistors	Circuit Type	Grade	Package / Case	Size / Dimension Length	Size / Dimension Width	Mounting Type	Power Per Element	Height - Seated (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Temperature Coefficient	Package Name
YAGEO TC122-JR-071KL	1 kOhm	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
YAGEO TC122-JR-0739RL	39 Ohm	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
YAGEO TC122-JR-07220RL	220 Ohm	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
YAGEO TC122-JR-072K2L	2.2 kOhm	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
YAGEO TC122-JR-0730RL	30 Ohm	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
YAGEO TC122-JR-0715RL	15 Ohm	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
YAGEO TC122-JR-1310RL	10 Ohms		4	5 %	DDRAM SDRAM	2	Isolated		0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C	0404
YAGEO TC122-JR-0747RL	47 Ohms	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
YAGEO TC122-JR-1330RL	30 Ohm		4	5 %	DDRAM SDRAM	2	Isolated		0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C	0404
YAGEO TC122-JR-0775RL	75 Ohm	AEC-Q200	4	5 %	DDRAM SDRAM	2	Isolated	Automotive	0404 (1010 Metric) Concave	0.039 in	0.039 in	Surface Mount	62.5 mW	0.016 in	125 °C	-55 °C	200 ppm/°C
