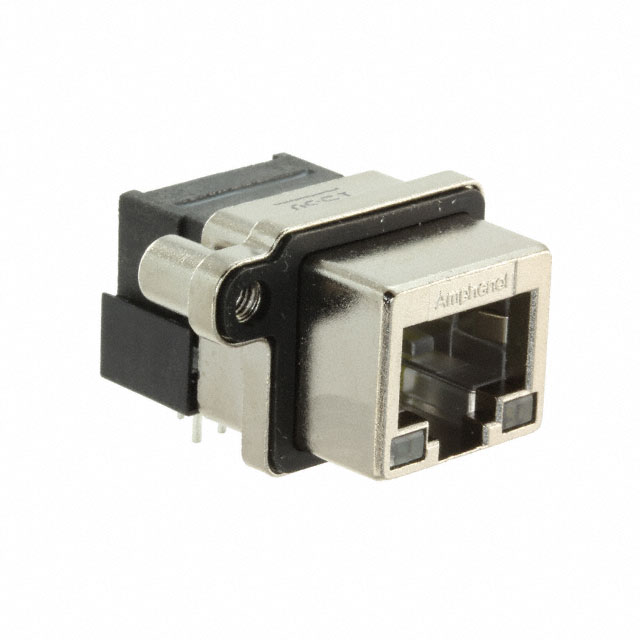

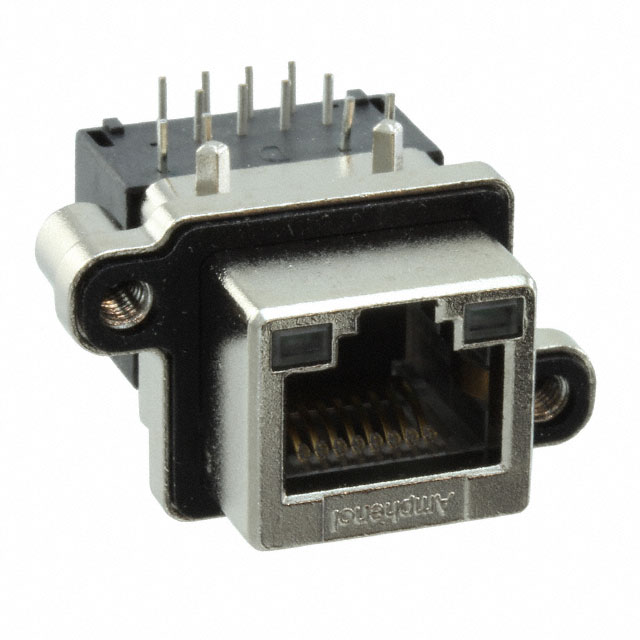

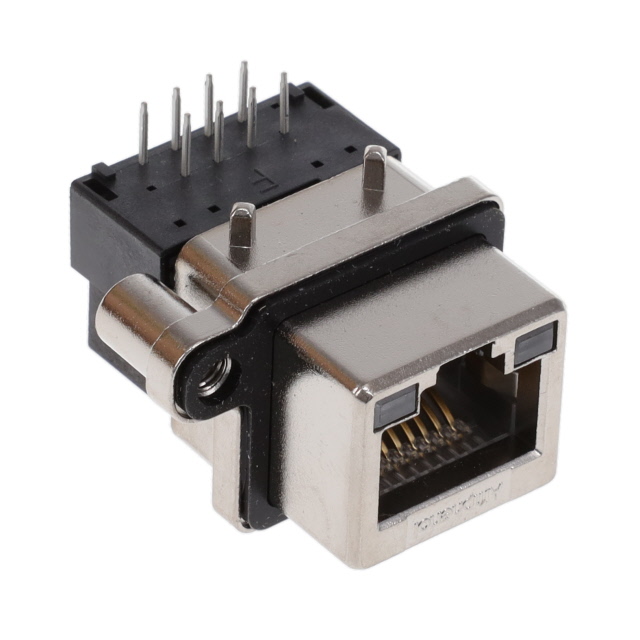

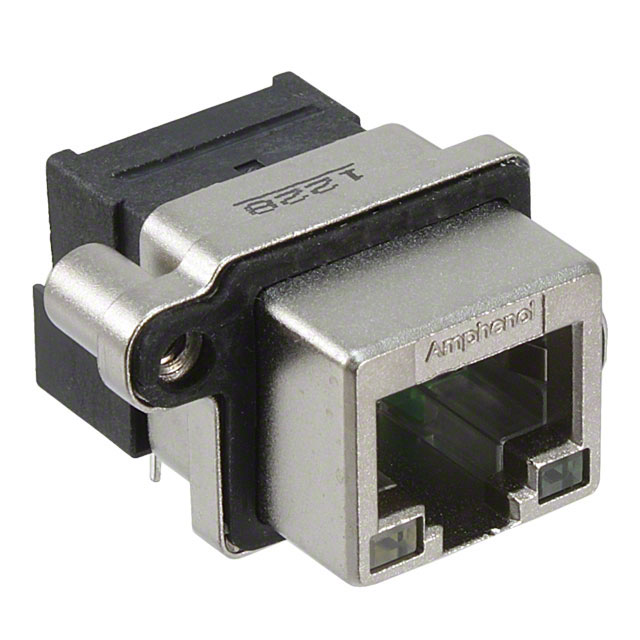

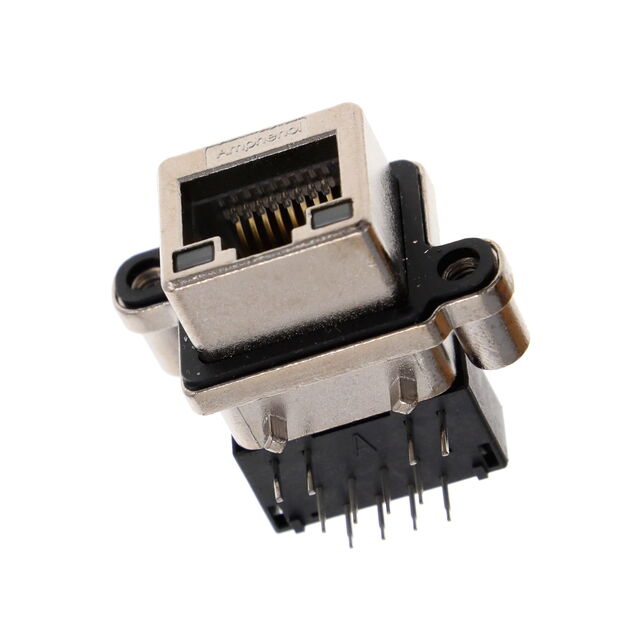

MRJ538 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN MOD JACK 8P8C R/A UNSHLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Contacts | Number of Rows | Shielding | Termination | Orientation | Contact Finish | Number of Ports | LED Color | Contact Material | Tab Direction | Ingress Protection | Features | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Yellow - Green | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Green - Green | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Green - Yellow | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Green - Yellow | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Yellow - Green | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Does Not Contain LED | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Green - Yellow | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | -40 C | 105 ░C | Polycarbonate (PC) | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Solder | 90 ° | Gold | 1 | Does Not Contain LED | Phosphor Bronze | Down | IP67 - Dust Tight Waterproof | Board Guide | Flange (2 Hole) Panel Mount Through Hole | Jack |
