333-021 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 21POS 0.156

Part	Material - Insulation	Termination Rows	Number of Rows	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Card Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Contact Type	Contact Material	Gender	Number of Positions	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 333-021-500-608	Diallyl Phthalate (DAP)	1	1	Single	-40 C	105 ░C	Solder Eyelet(s)	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21

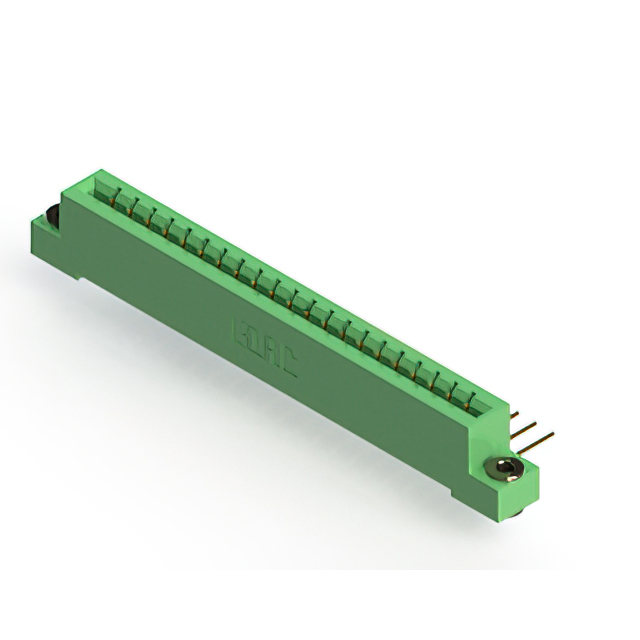

EDAC Inc. 333-021-559-103	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Wire Wrap	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	Right Angle Through Hole	Green	Cantilever	Copper Alloy	Female	21	21	0.116 "	2.95 mm

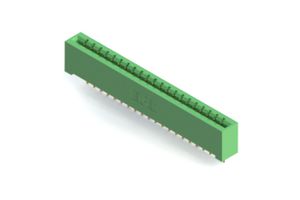

EDAC Inc. 333-021-542-101	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Wire Wrap	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge		0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21

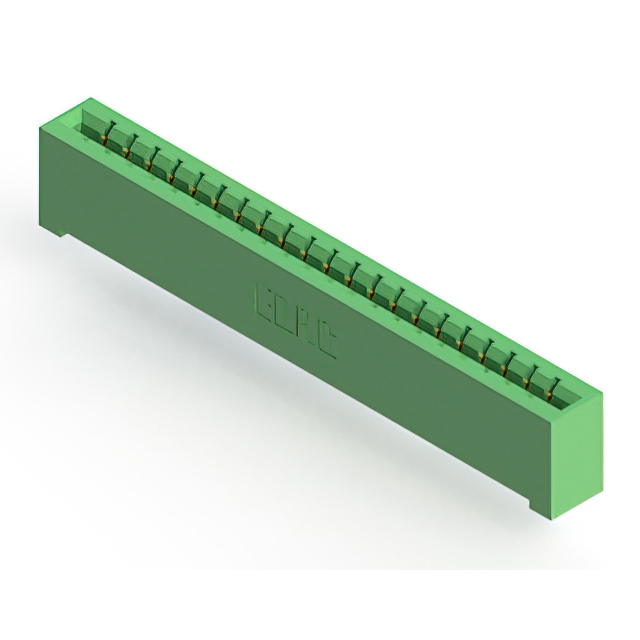

EDAC Inc. 333-021-521-101	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Solder	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge		0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21
EDAC Inc. 333-021-523-103	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Solder	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21	0.116 "	2.95 mm

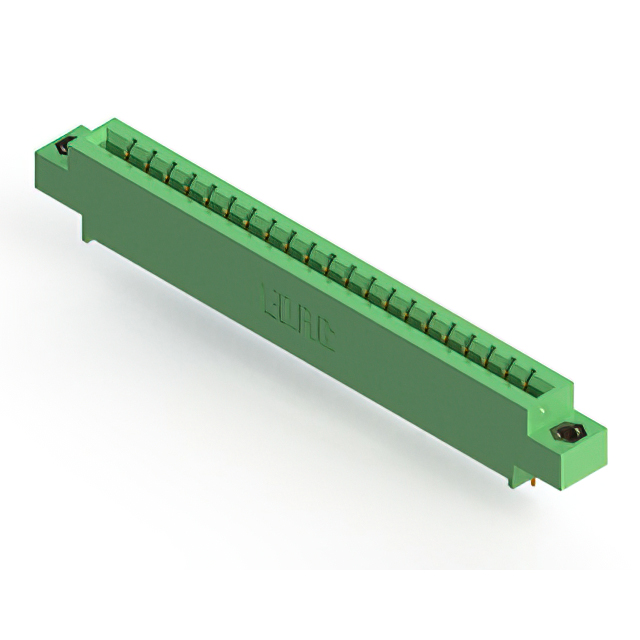

EDAC Inc. 333-021-520-607	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Solder	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	M3 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21

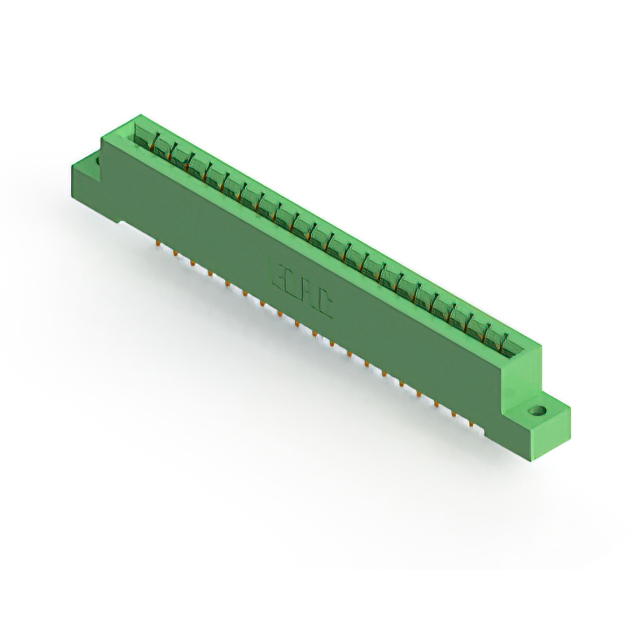

EDAC Inc. 333-021-542-102	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Wire Wrap	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21	0.128 "	3.25 mm

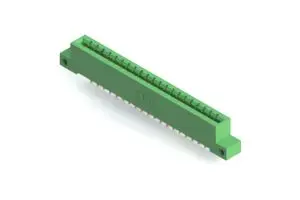

EDAC Inc. 333-021-542-112	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Wire Wrap	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Flush Mount Side Opening Unthreaded	0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21	0.128 "	3.25 mm

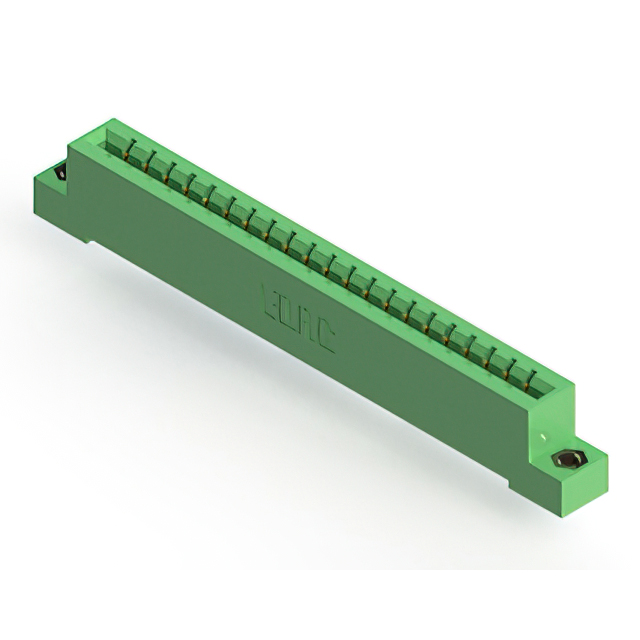

EDAC Inc. 333-021-524-107	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Solder	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Through Hole	Green	Cantilever	Copper Alloy	Female	21	21
EDAC Inc. 333-021-559-108	Polyester Thermoplastic	1	1	Single	-40 C	105 ░C	Wire Wrap	Gold	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Right Angle Through Hole	Green	Cantilever	Copper Alloy	Female	21	21
