EAS-8 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SPEAKR 25OHM 630MW TOP PORT 95DB
| Part | Shape | Impedance | Technology | Termination | Type | Power - Rated | Efficiency - dBA | Size / Dimension [diameter] | Size / Dimension [diameter] | Port Location | Efficiency - Type | Efficiency - Testing | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency Range [Max] | Frequency Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

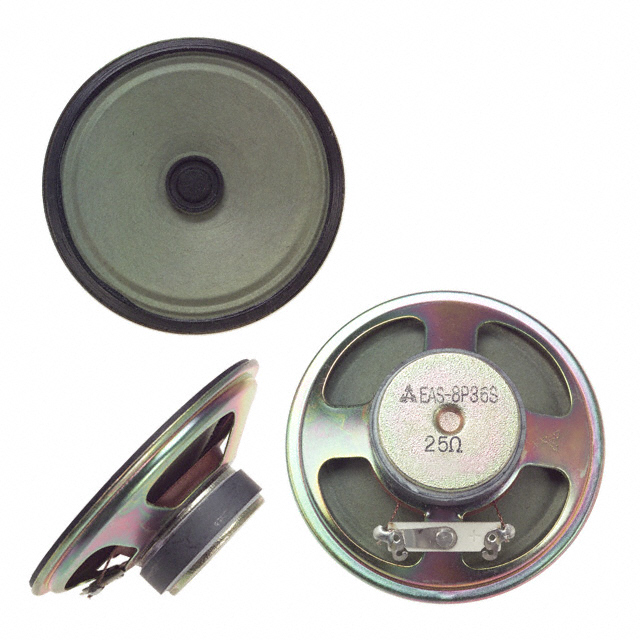

 Panasonic Electronic Components | Round | 25 Ohms | Magnetic | Solder Eyelet(s) | Full Range | 630 mW | 95 dBA | 3.032 in | 77 mm | Top | Sound Pressure Level (SPL) | 1W/500mm | 26 mm | 1.024 in | ||||

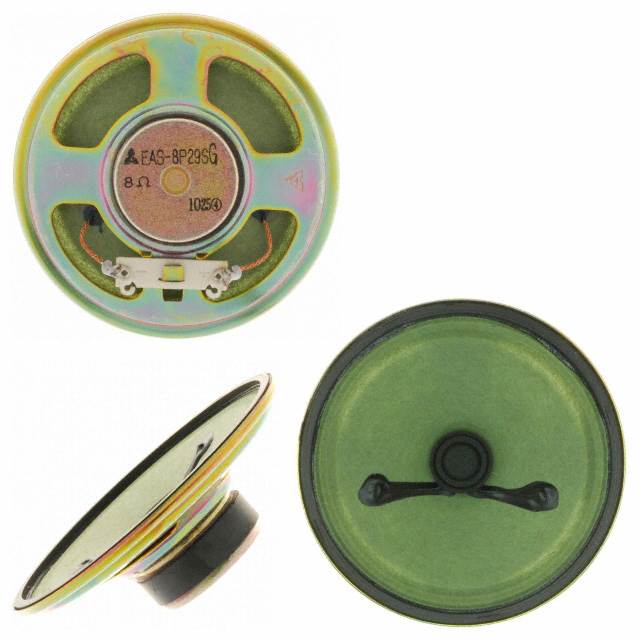

 Panasonic Electronic Components | Round | 8 Ohms | Magnetic | Solder Eyelet(s) | General Purpose | 630 mW | 93 dBA | 3.031 in | 77 mm | Top | Sound Pressure Level (SPL) | 1W/500mm | 0.945 " | 24 mm | 4 kHz | 185 Hz |
