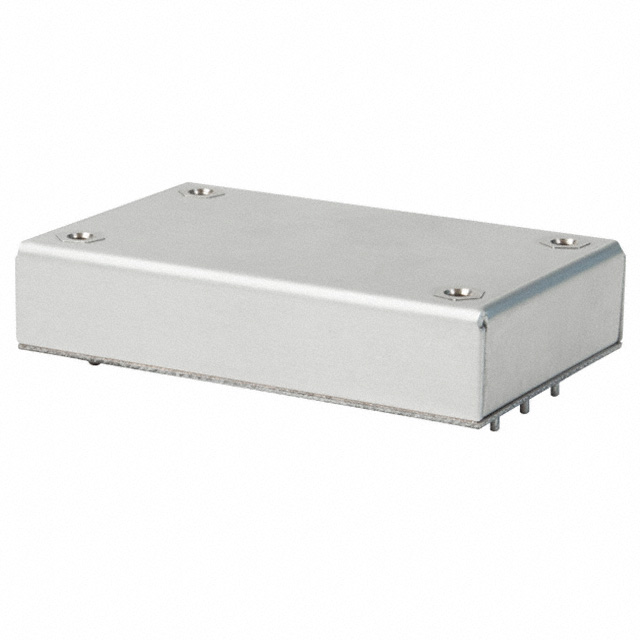

VQE50W Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 50W

Part	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Number of Outputs	Features	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Approval Agency	Efficiency	Current - Output (Max) [Max]	Package / Case	Applications	Voltage - Isolation
CUI Inc. VQE50W-Q48-S12	75 V	Isolated Module	12 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	18 V	Through Hole	50 W	EN UL	92 %	4.16 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q24-S48	36 V	Isolated Module	48 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Through Hole	50 W	EN UL	88.5 %	1.04 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q48-S3R3	75 V	Isolated Module	3.3 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	18 V	Through Hole	50 W	EN UL	90 %	10 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q48-S24	75 V	Isolated Module	24 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	18 V	Through Hole	50 W	EN UL	90.5 %	2.08 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q48-S48	75 V	Isolated Module	48 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	18 V	Through Hole	50 W	EN UL	89 %	1.04 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q48-S15	75 V	Isolated Module	15 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	18 V	Through Hole	50 W	EN UL	91 %	3.33 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q24-S3R3	36 V	Isolated Module	3.3 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Through Hole	50 W	EN UL	90.5 %	10 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q24-S5	36 V	Isolated Module	5 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Through Hole	50 W	EN UL	91.5 %	10 A	8-DIP Module	ITE (Commercial)	1.5 kV
CUI Inc. VQE50W-Q48-S5	75 V	Isolated Module	5 V	1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	-40 C	105 ░C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	18 V	Through Hole	50 W	EN UL	92 %	10 A	8-DIP Module	ITE (Commercial)	1.5 kV
