CLL4747 Series

Catalog

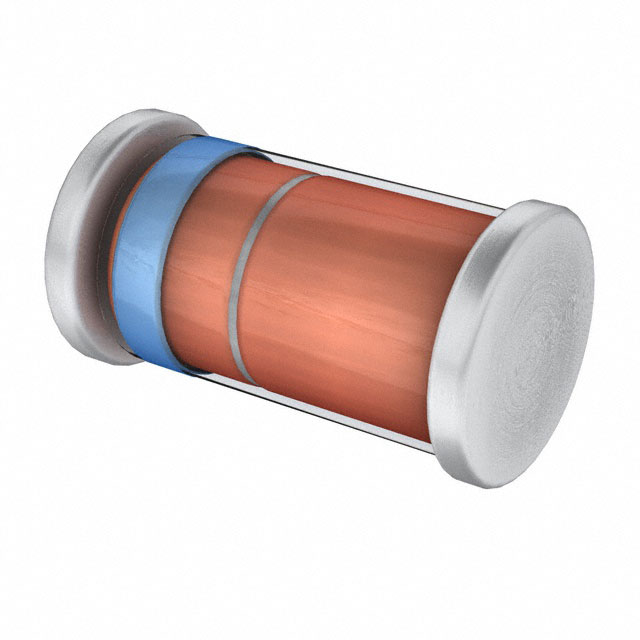

DIODE ZENER 20V 1W MELF

Part	Impedance (Max) (Zzt) [Max]	Current - Reverse Leakage @ Vr	Power - Max [Max]	Voltage - Forward (Vf) (Max) @ If	Voltage - Zener (Nom) (Vz)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Tolerance	Package / Case
Central Semiconductor Corp CLL4747A BK PBFREE	22 Ohms	5 µA	1 W	1.2 V	20 V	Surface Mount	-65 ░C	200 °C	MELF	5 %	DO-213AB MELF
Central Semiconductor Corp CLL4747A TR PBFREE	22 Ohms	5 µA	1 W	1.2 V	20 V	Surface Mount	-65 ░C	200 °C	MELF	5 %	DO-213AB MELF
