HM2P87 Series

Catalog

CONN HEADER 220POS 2MM PRESS-FIT

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating	Number of Positions Loaded	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Connector Type	Pitch [x]	Pitch [x]	Number of Positions	Connector Style	Number of Rows	Contact Finish Thickness
Amphenol ICC (FCI) HM2P87PK8111GF	1.5 A	-55 C	125 °C	Board Guide	500 V	All	Gold	30 Áin	0.76 Ám	Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	220	D 22
Amphenol ICC (FCI) HM2P87PKA1M8GFLF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms	All	Gold	30 Áin	0.76 Ám	Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	220	D 22
Amphenol ICC (FCI) HM2P87PD81A0N9LF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms	All	Gold			Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	176	D 22	8
Amphenol ICC (FCI) HM2P87PDH1K0N9LF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms	All	Gold			Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	176	D 22	8

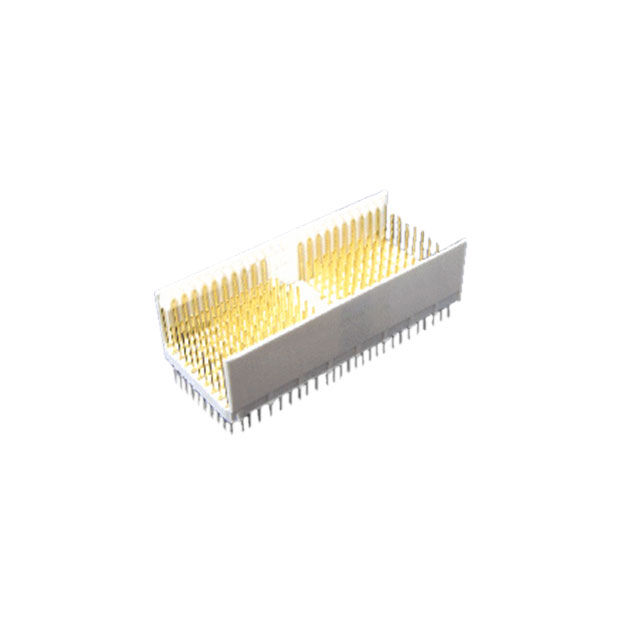

Amphenol ICC (FCI) HM2P87PDC1NAN9LF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms	All	Gold			Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	220	D 22
Amphenol ICC (FCI) HM2P87PA8110AALF	1.5 A	-55 C	125 °C		750 Vrms	All				Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	176	D 22	8
Amphenol ICC (FCI) HM2P87PDF1M0N9LF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms	All	Gold	30 Áin	0.76 Ám	Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	176	D 22	8
Amphenol ICC (FCI) HM2P87PK8190GFLF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms		Gold			Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	176	D 25	8
Amphenol ICC (FCI) HM2P87PME1P1GF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms	All	Gold	30 Áin	0.76 Ám	Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	220	D 22
Amphenol ICC (FCI) HM2P87PD81H5N9LF	1.5 A	-55 C	125 °C	Board Guide	750 Vrms	All	Gold			Press-Fit	Through Hole	Header Male Pins	0.079 in	2 mm	220	D 22		Flash
