CP Series

Catalog

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, CERAMIC PLATE, HIGH CURRENT, EPOXY, 16.4W, 30X15X3.2MM

Part	Size / Dimension [y]	Size / Dimension [x]	Number of Stages	Operating Temperature	Delta Tmax @ Th	Height [z]	Voltage - Max [Max]	Current - Max [Max]	Resistance	Qmax @ Th	Features

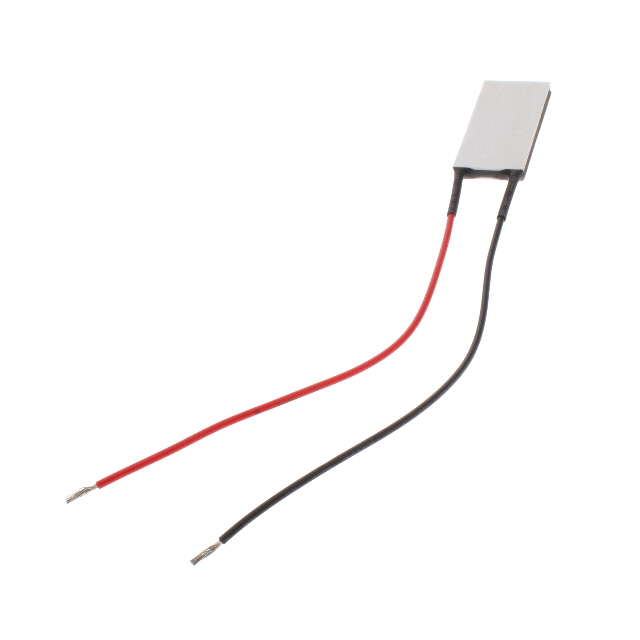

Laird Thermal Systems, Inc. 430036-508	15 mm	30 mm	1	80 °C	67 °C	3.2 mm	7.6 V	3.9 A	1.66 Ohms	16.6 W	Lead Wires Sealed - Epoxy
Laird Thermal Systems, Inc. 430848-513	40 mm	40 mm	1	80 °C	67 °C	3.5 mm	18.4 V	7.3 A	2.33 Ohms	79.2 W	Lead Wires Sealed - Epoxy
Laird Thermal Systems, Inc. 430163-503
Laird Thermal Systems, Inc. 430870-501

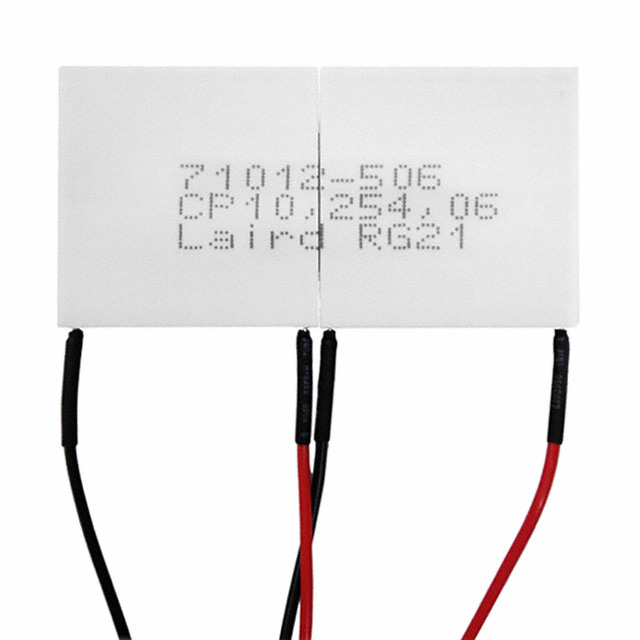

Laird Thermal Systems, Inc. 71012-506	29.72 mm	59.44 mm	1	80 °C	67 °C	3.58 mm	29 V	3 A	8.69 Ohms	52.9 W	Lead Wires Non-Sealed
Laird Thermal Systems, Inc. 430082-552

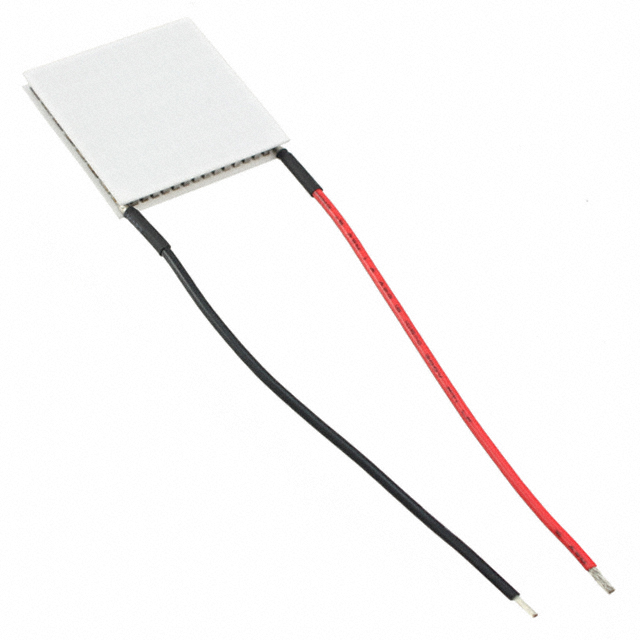

Laird Thermal Systems, Inc. 56610-502	39.88 mm	39.88 mm	1	80 °C	67 °C	4.7 mm	14.4 V	3.9 A	3.44 Ohms	33.4 W	Lead Wires Non-Sealed
Laird Thermal Systems, Inc. 387000573
Laird Thermal Systems, Inc. 56590-502	29.72 mm	29.72 mm	1	80 °C	67 °C	4.7 mm	8.6 V	3.9 A	1.92 Ohms	18.7 W	Lead Wires Non-Sealed

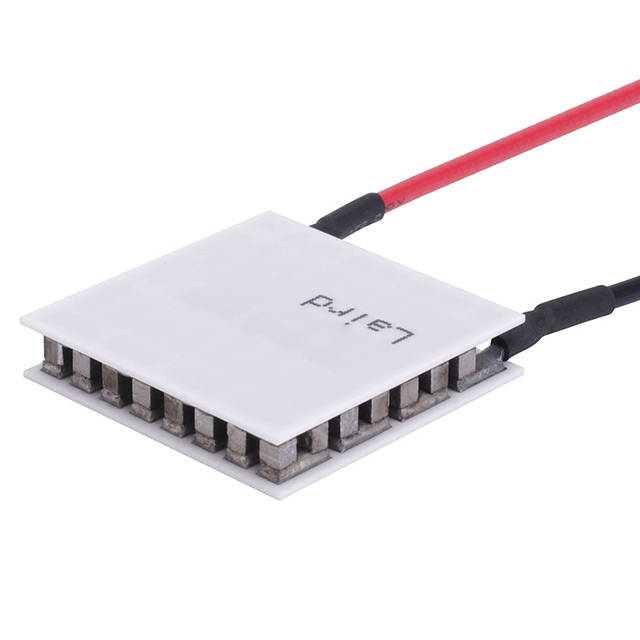

Laird Thermal Systems, Inc. 57125-501	29.72 mm	29.72 mm	1	80 °C	68 °C	4.57 mm	3.5 V	14 A	0.23 Ohms	29.3 W	Lead Wires Non-Sealed
