1742266 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

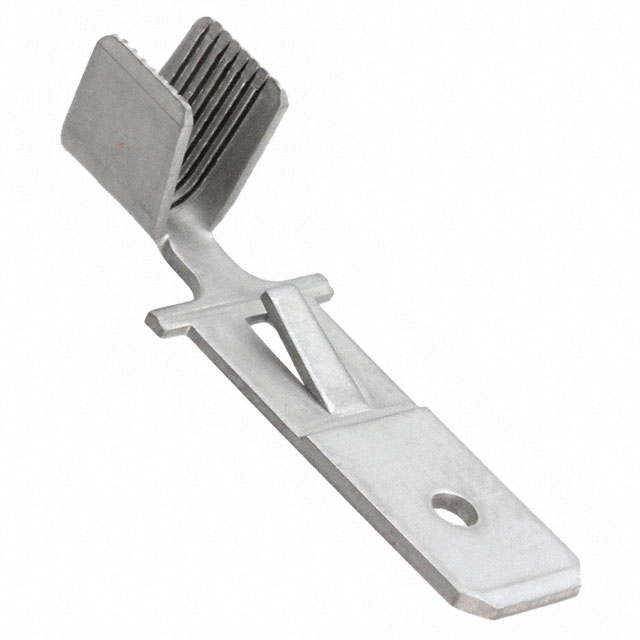

CONN QC TAB 7000-13000CMA 0.250
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Length - Overall [x] | Length - Overall [x] | Gender | Tab Thickness | Tab Thickness | Insulation | Contact Finish | Mounting Type | Tab Width | Tab Width | Termination | Terminal Type | Tab Length | Tab Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 13000 CMA | 7000 CMA | Brass | 1.005 in | 25.53 mm | Male | 0.032 in | 0.81 mm | Non-Insulated | Tin | Free Hanging (In-Line) | 6.35 mm | 0.25 in | Crimp | Standard | 0.625 in | 15.88 mm |
