820-22 Series

Catalog

CONN SPRING PISTON 48POS SMD

Part	Material	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Mounting Type	Row Spacing	Row Spacing	Connector Type	Pitch	Pitch	Contact Finish	Number of Contacts [custom]	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 820-22-048-30-001101	Copper Alloy	2	0.25 Ám	10 Áin	48	Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold
Mill-Max Manufacturing Corp. 820-22-054-30-001101	Copper Alloy	2	0.25 Ám	10 Áin	54	Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold

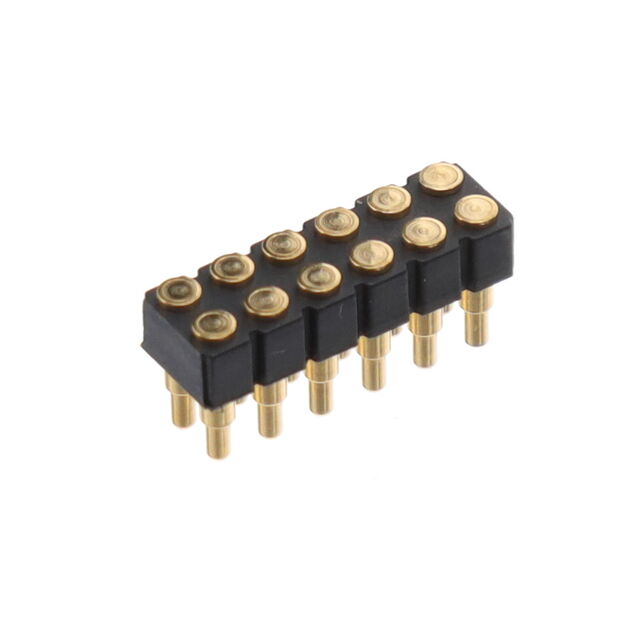

Mill-Max Manufacturing Corp. 820-22-012-30-001101	Copper Alloy	2	0.25 Ám	10 Áin		Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold	12

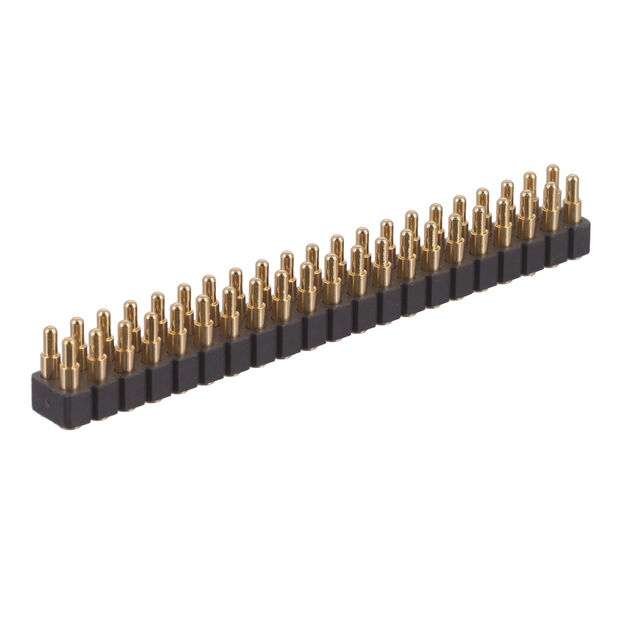

Mill-Max Manufacturing Corp. 820-22-042-30-001101	Copper Alloy	2	0.25 Ám	10 Áin		Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold		42
Mill-Max Manufacturing Corp. 820-22-050-30-001101	Copper Alloy	2	0.25 Ám	10 Áin	50	Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold

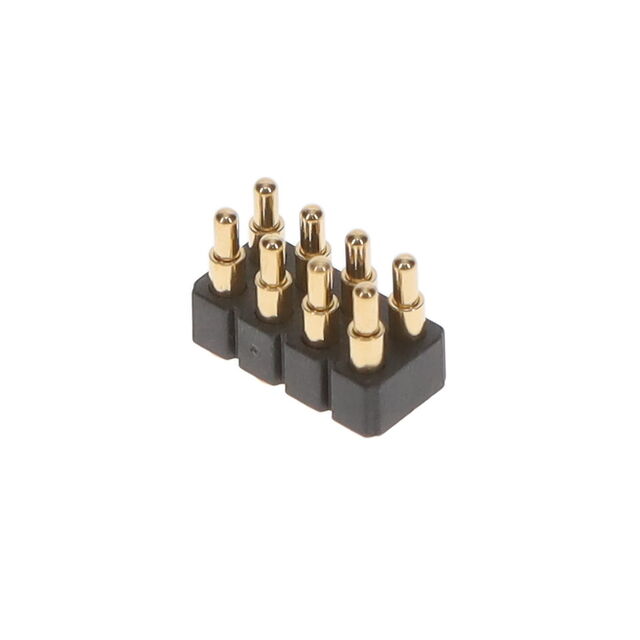

Mill-Max Manufacturing Corp. 820-22-008-30-001101	Copper Alloy	2	0.25 Ám	10 Áin	8	Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold
Mill-Max Manufacturing Corp. 820-22-010-30-001101	Copper Alloy	2	0.25 Ám	10 Áin	10	Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold
Mill-Max Manufacturing Corp. 820-22-018-30-001101	Copper Alloy	2	0.25 Ám	10 Áin		Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold
Mill-Max Manufacturing Corp. 820-22-046-30-001101	Copper Alloy	2	0.25 Ám	10 Áin	46	Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold
Mill-Max Manufacturing Corp. 820-22-068-30-001101	Copper Alloy	2	0.25 Ám	10 Áin	68	Surface Mount	2.54 mm	0.1 "	Piston	0.1 "	2.54 mm	Gold
