M2019SD Series
Manufacturer: NKK Switches
Beta
⌘K

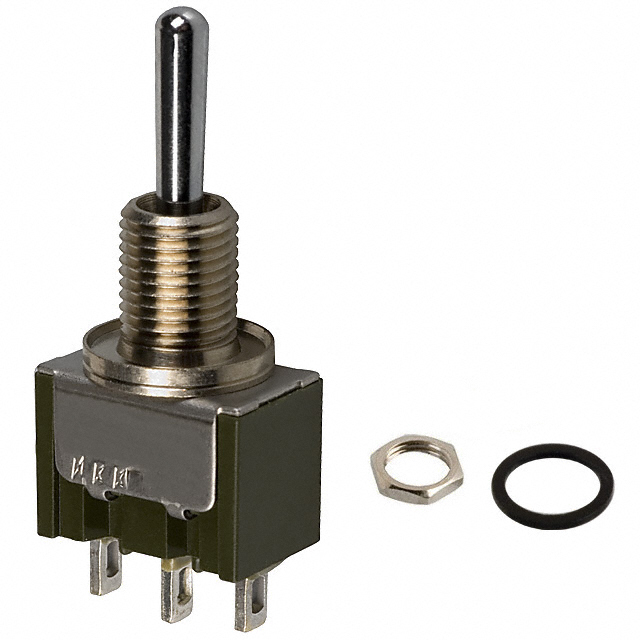

SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Actuator Type | Features | Switch Function | Bushing Thread | Ingress Protection | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Mounting Type | Circuit | Voltage Rating - AC | Termination Style | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 85 °C | -30 ░C | 3 A 6 A | Standard Round | Epoxy Sealed Terminals | On-Off-Mom | 1/4-40 | IP67 - Dust Tight Waterproof | 6.5 mm | 30 V | Panel Mount | SPDT | 125 V | PC Pin | Non-Illuminated |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 85 °C | -30 ░C | 3 A 6 A | Standard Round | Epoxy Sealed Terminals | On-Off-Mom | 1/4-40 | IP67 - Dust Tight Waterproof | 6.5 mm | 30 V | Panel Mount | SPDT | 125 V | Solder Lug | Non-Illuminated |
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 85 °C | -30 ░C | 0.4 VA | Standard Round | Epoxy Sealed Terminals | On-Off-Mom | 1/4-40 | IP67 - Dust Tight Waterproof | 6.5 mm | 28 V | Panel Mount | SPDT | 28 V | Solder Lug | Non-Illuminated |
