1734723 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

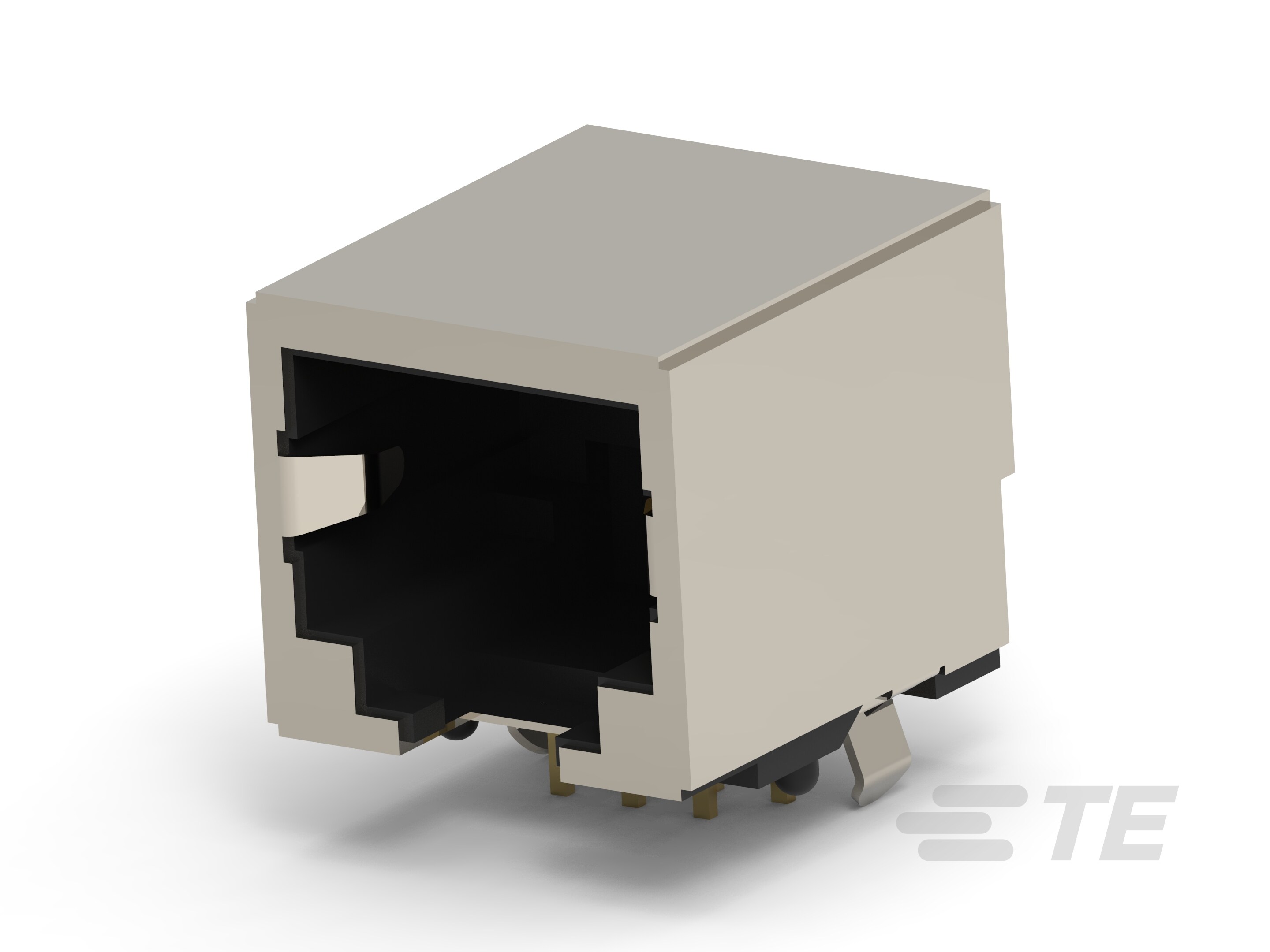

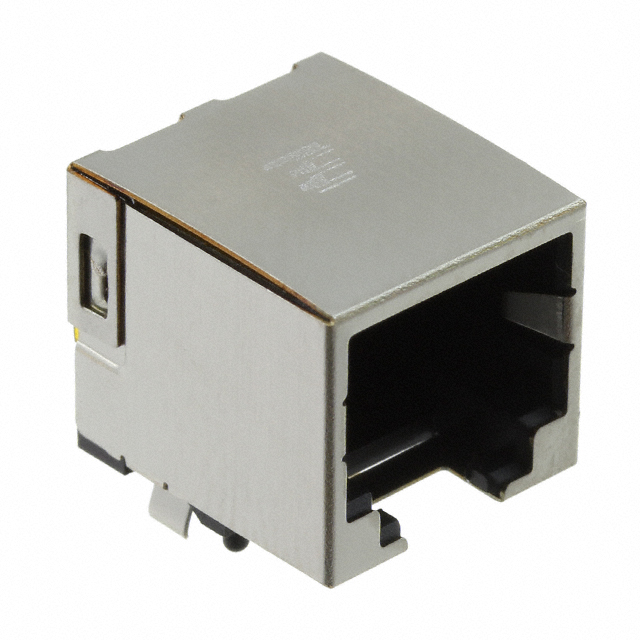

TELECOM AND DATACOM CONNECTOR, 2 CONTACT(S), RIGHT ANGLE, SOLDER TERMINAL, JACK
| Part | Housing Material | Contact Finish | Number of Ports | Number of Positions/Contacts | Orientation | Shielding | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Contact Material | Mounting Type | Connector Type | Number of Rows | Termination | LED Color | Number of Positions/Contacts | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Glass Filled Nylon 4/6 Polyamide (PA46) | Gold | 1 | 6p6c (RJ11 RJ12 RJ14 RJ25) | 90 ░ Angle | Unshielded | 1.27 µm | 50 µin | Down | Phosphor Bronze | Through Hole | Jack | 1 | Solder | Does Not Contain LED | ||
TE Connectivity Raychem Cable Protection | Glass Filled Nylon 4/6 Polyamide (PA46) | Gold | 1 | 90 ° | Shielded | 0.152 Ám | 6 Áin | Down | Phosphor Bronze | Through Hole | Jack | 1 | Solder | Does Not Contain LED | 2 6 | ||
 TE Connectivity Raychem Cable Protection | Glass Filled Nylon 4/6 Polyamide (PA46) | Gold | 1 | 6p6c (RJ11 RJ12 RJ14 RJ25) | 90 ° | Shielded | 0.152 Ám | 6 Áin | Down | Phosphor Bronze | Through Hole | Jack | 1 | Solder | Does Not Contain LED | Cat3 | |
TE Connectivity Raychem Cable Protection | Glass Filled Nylon 4/6 Polyamide (PA46) | Gold | 1 | 6p6c (RJ11 RJ12 RJ14 RJ25) | 90 ° | Shielded | 0.38 µm | 15 µin | Down | Phosphor Bronze | Through Hole | Jack | 1 | Solder | Does Not Contain LED |
