864-03 Series
Manufacturer: Qualtek
Beta
⌘K

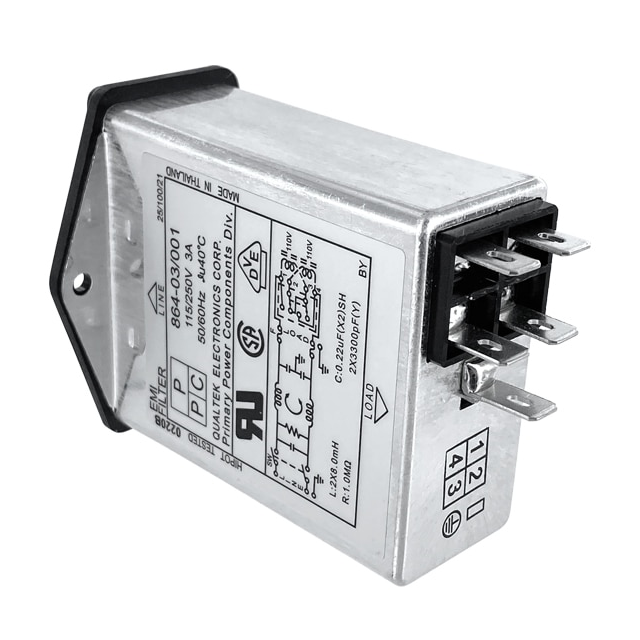

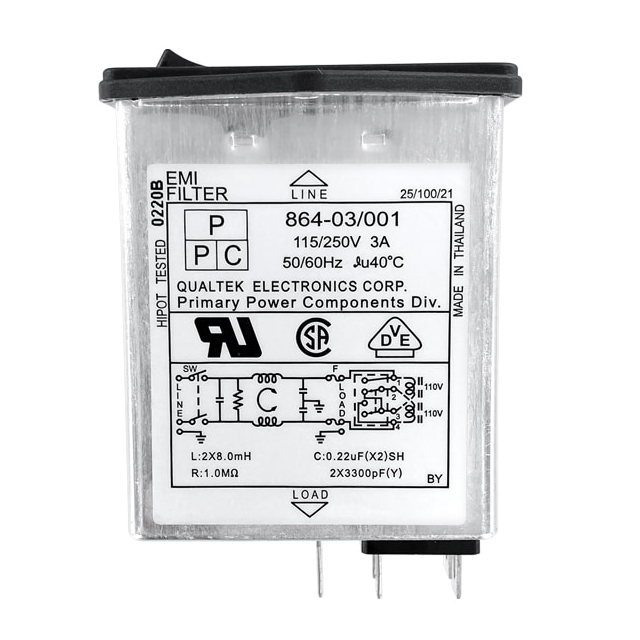

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Connector Type | Filter Type | Termination | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Switch Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Fuse Holder, Drawer | Current Rating - Appliance Inlet | Connector Style | Features | Accomodates a Fuse | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial | Quick Connect | 115 VAC | 250 VAC | Switch On-Off | 60.2 mm | 28.96 mm | Twin Fused | 3 A | IEC 320-C14 | Voltage Selector | Flange Panel Mount | CSA UL VDE |
