UB15SKW Series

Catalog

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Mechanical Life	Electrical Life	Mounting Type	Actuator Marking	Illumination Type, Color	Circuit	Type	Illumination Voltage (Nominal)	Voltage Rating - DC	Features	Termination Style	Actuator Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Color - Actuator/Cap

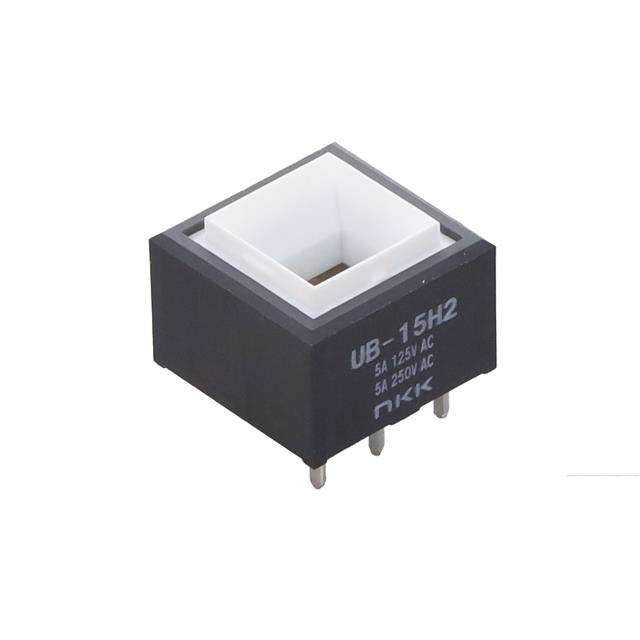

NKK Switches UB15SKW036F	1000000 Cycles	10000 Cycles	Through Hole	No Marking	Green LED	SPDT	Illuminated Standard	3.2 VDC	30 V	Process Sealed	PC Pin	Plunger for Cap	125 V	50 °C	-25 °C	5 A	On-Mom

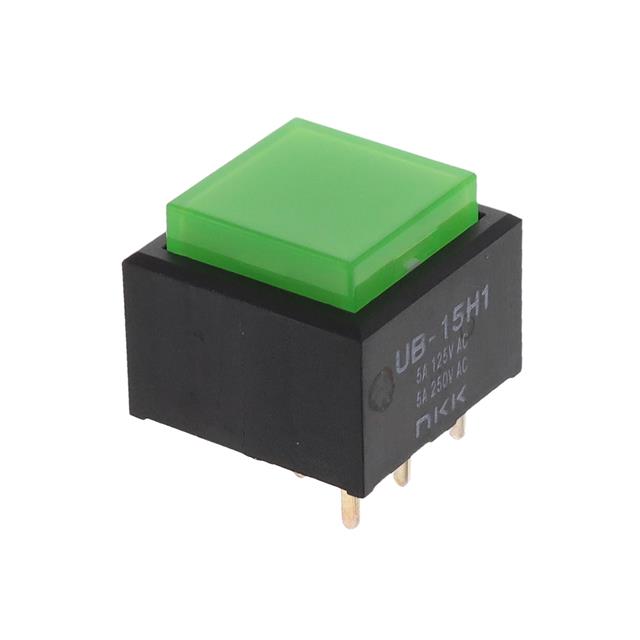

NKK Switches UB15SKW035F-FF	1000000 Cycles	10000 Cycles	Through Hole	No Marking	Green LED	SPDT	Illuminated Standard	2.1 VDC	30 V	Process Sealed	PC Pin	Button Square	125 V	50 °C	-25 °C	5 A	On-Mom	Green
NKK Switches UB15SKW035F-FB	1000000 Cycles	10000 Cycles	Through Hole	No Marking	Green LED	SPDT	Illuminated Standard	2.1 VDC	30 V	Process Sealed	PC Pin	Button Square	125 V	50 °C	-25 °C	5 A	On-Mom	Green

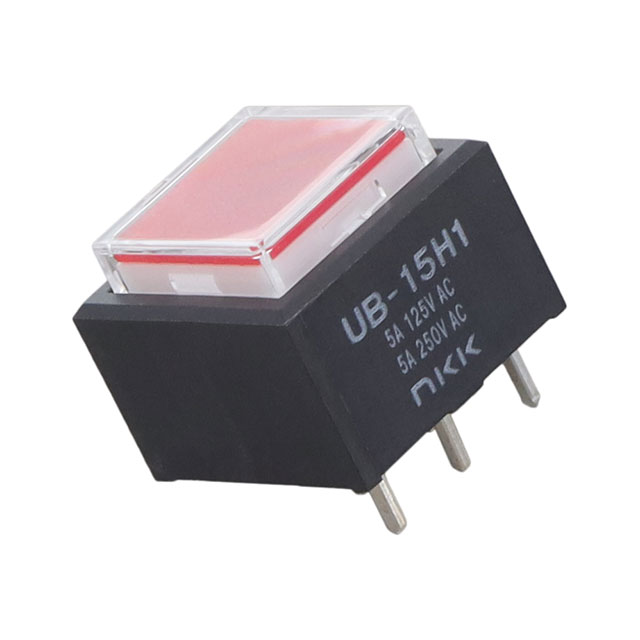

NKK Switches UB15SKW035C-JC	1000000 Cycles	10000 Cycles	Through Hole	No Marking	LED Red	SPDT	Illuminated Standard	1.85 VDC	30 V	Process Sealed	PC Pin	Button Square	125 V	50 °C	-25 °C	5 A	On-Mom	Clear
NKK Switches UB15SKW036B-JJ	1000000 Cycles	10000 Cycles	Through Hole	No Marking	LED White	SPDT	Illuminated Standard	2.9 VDC	30 V	Process Sealed	PC Pin	Button Square	125 V	50 °C	-25 °C	5 A	On-Mom	Clear

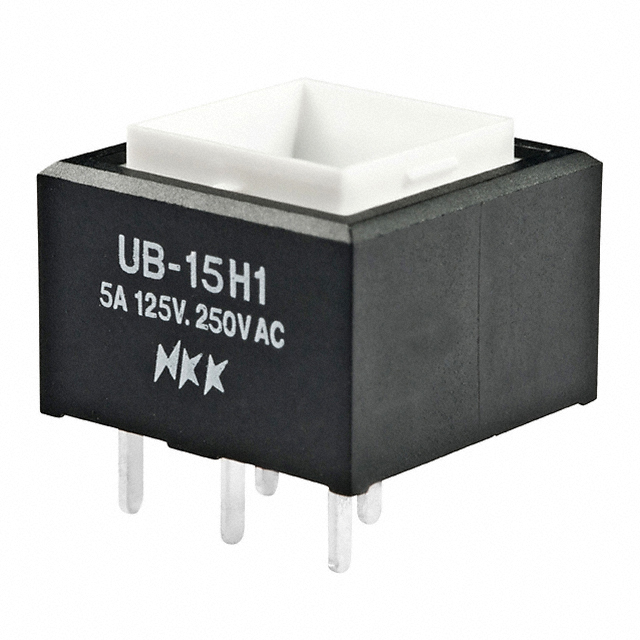

NKK Switches UB15SKW035D	1000000 Cycles	10000 Cycles	Through Hole	No Marking	Amber LED	SPDT	Illuminated Standard	2 VDC	30 V	Process Sealed	PC Pin	Plunger for Cap	125 V	50 °C	-25 °C	5 A	On-Mom

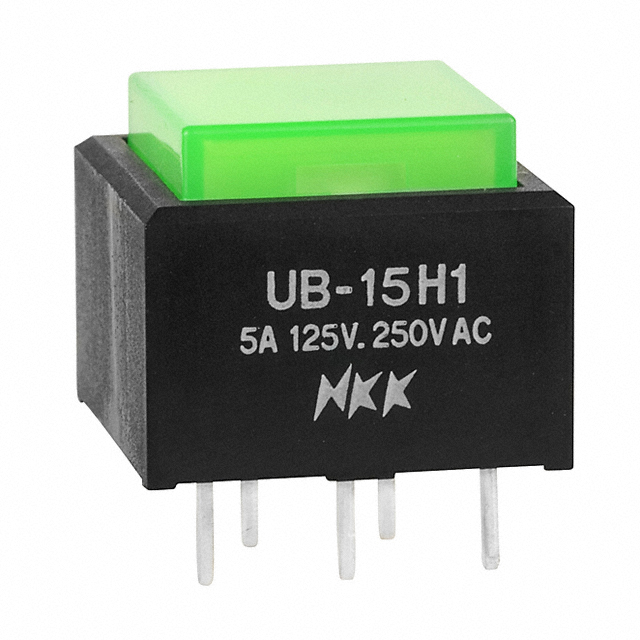

NKK Switches UB15SKW035F-FJ	1000000 Cycles	10000 Cycles	Through Hole	No Marking	Green LED	SPDT	Illuminated Standard	2.1 VDC	30 V	Process Sealed	PC Pin	Button Square	125 V	50 °C	-25 °C	5 A	On-Mom	Green
NKK Switches UB15SKW03N-C	1000000 Cycles	10000 Cycles	Through Hole	No Marking		SPDT	Standard		30 V	Process Sealed	PC Pin	Button Square	125 V	70 °C	-20 ░C	5 A	On-Mom	Red

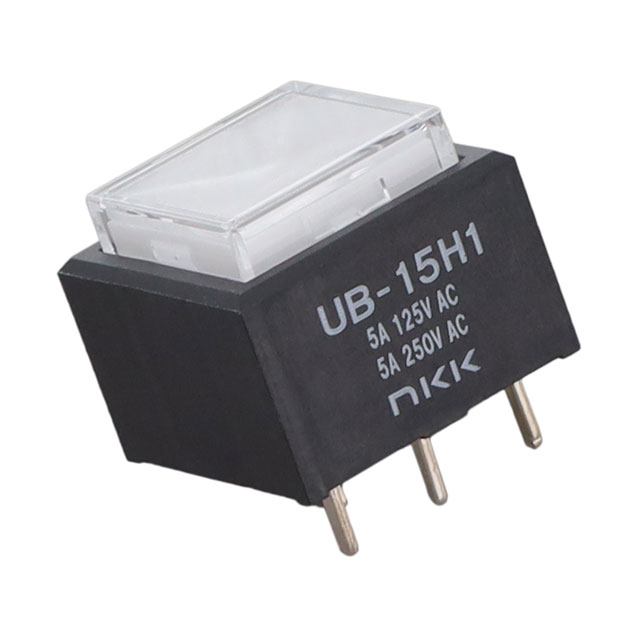

NKK Switches UB15SKW035D-JJ	1000000 Cycles	10000 Cycles	Through Hole	No Marking	Amber LED	SPDT	Illuminated Standard	2 VDC	30 V	Process Sealed	PC Pin	Button Square	125 V	50 °C	-25 °C	5 A	On-Mom	Clear
NKK Switches UB15SKW036G-JB	1000000 Cycles	10000 Cycles	Through Hole	No Marking	Blue LED	SPDT	Illuminated Standard	2.9 VDC	30 V	Process Sealed	PC Pin	Button Square	125 V	50 °C	-25 °C	5 A	On-Mom	Clear
