BFB1212 Series

Catalog

FAN BLOWER 120X32MM 12VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Termination	Noise	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Air Flow	Air Flow	RPM	Bearing Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Width [y]	Static Pressure	Static Pressure	Voltage - Rated	Approval Agency	Power (Watts)	Features

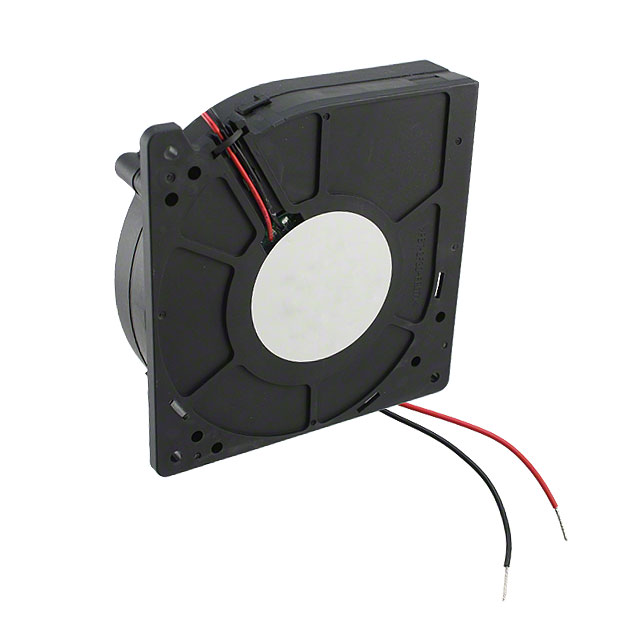

Delta Electronics BFB1212VH-TA50	Plastic	40 °C 50000 Hrs	1.47 A	5.5 VDC	13.8 VDC	Plastic	2 Wire Leads	57 dB	299.82 g	0.661 lb	-10 °C	60 °C	Blower	42.5 CFM	1.19 mł/min	3100 RPM	Ball	Square/Rounded	120 mm	120 mm	IP55 - Dust Protected Water Resistant	32 mm	1.85 in H2O	460.8 Pa	12 VDC	CE CSA UL VDE	17.64 W

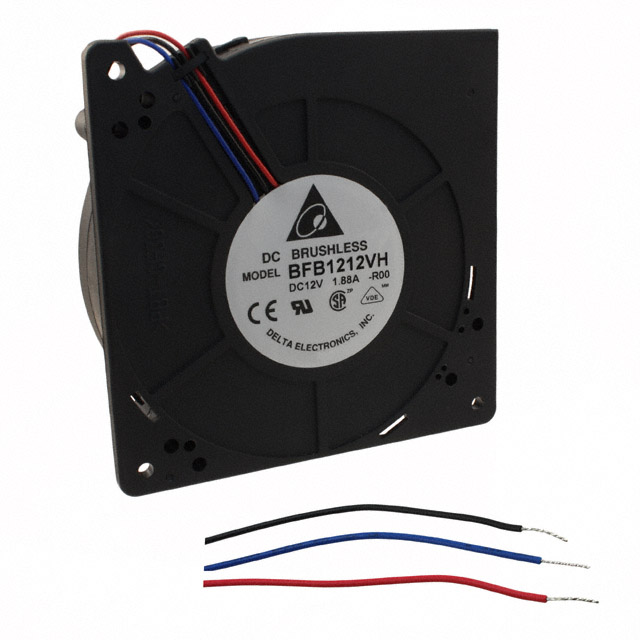

Delta Electronics BFB1212VH-R00	Plastic	40 °C 50000 Hrs	1.25 A	4 VDC	13.8 VDC	Plastic	3 Wire Leads	56.5 dB	230.42 g	0.508 lb	-10 °C	60 °C	Blower	39.6 CFM	1.11 m³/min	3100 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	1.3 in H2O	323.6 Pa	12 VDC	CE CSA UL VDE	15 W	Locked Rotor Sensor

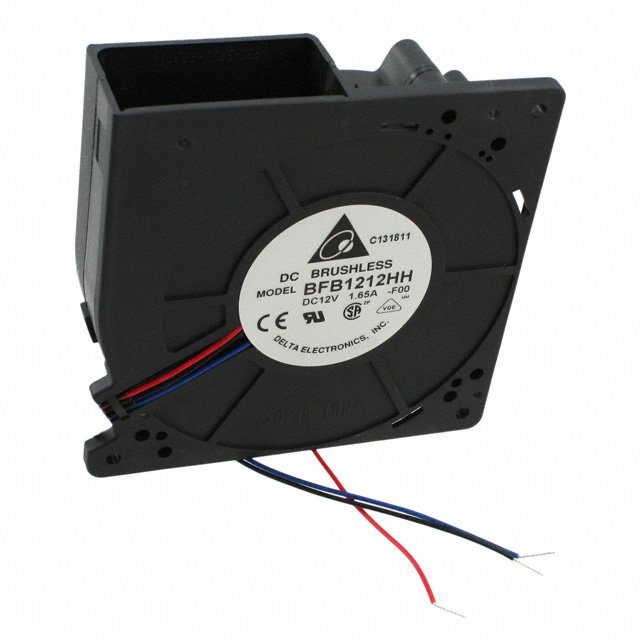

Delta Electronics BFB1212HH-F00	Plastic	40 °C 50000 Hrs	1.1 A	4 VDC	13.8 VDC	Plastic	3 Wire Leads	54 dB	230.42 g	0.508 lb	-10 °C	60 °C	Blower	32.5 CFM	0.91 mł/min	2800 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	1.063 in H2O	264.8 Pa	12 VDC	CE CSA UL VDE	13.2 W	Locked Rotor Protection Speed Sensor (Tach)

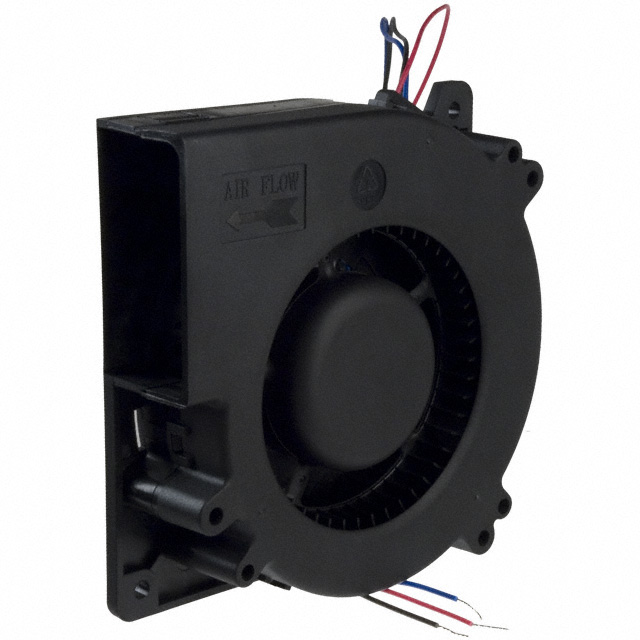

Delta Electronics BFB1212L-F00	Plastic	40 °C 50000 Hrs	400 mA	4 VDC	13.8 VDC	Plastic	3 Wire Leads	47 dB	230.42 g	0.508 lb	-10 °C	60 °C	Blower	24.7 CFM	0.692 m³/min	2100 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	0.551 in H2O	137.2 Pa	12 VDC	CE CSA UL VDE	4.8 W	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB1212GH-A	Plastic	40 °C 50000 Hrs	3.3 A	5.5 VDC	13.2 VDC	Plastic	2 Wire Leads	65 dB	299.82 g	0.661 lb	-10 °C	60 °C	Blower	60.4 CFM	1.69 m³/min	4400 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	4.094 in H2O	1019.8 Pa	12 VDC	CE CSA UL VDE	39.6 W

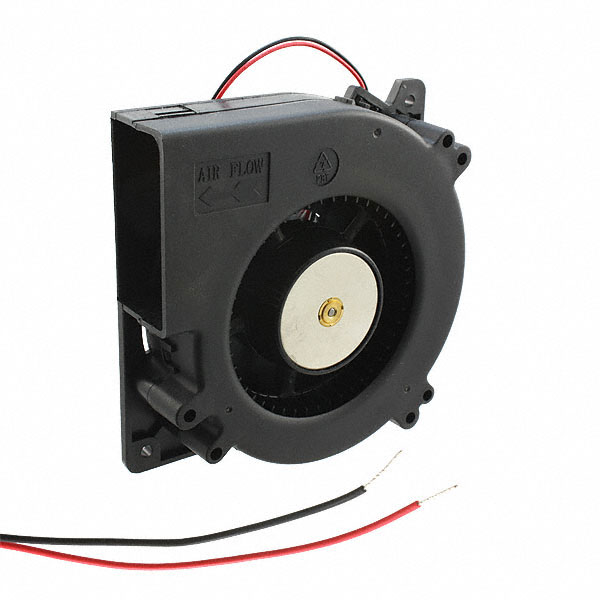

Delta Electronics BFB1212VH	Plastic	40 °C 50000 Hrs	1.25 A	4 VDC	13.8 VDC	Plastic	2 Wire Leads	56.5 dB	230.42 g	0.508 lb	-10 °C	60 °C	Blower	39.6 CFM	1.11 m³/min	3100 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	1.3 in H2O	323.6 Pa	12 VDC	CE CSA UL VDE	15 W
Delta Electronics BFB1212VH-A	Plastic	40 °C 50000 Hrs	1.47 A	5.5 VDC	13.8 VDC	Plastic	2 Wire Leads	57 dB	299.82 g	0.661 lb	-10 °C	60 °C	Blower	42.5 CFM	1.19 mł/min	3100 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	1.848 in H2O	460.3 Pa	12 VDC	CE CSA UL VDE	17.64 W
Delta Electronics BFB1212EH-AF00	Plastic	40 °C 50000 Hrs	2.37 A	5.5 VDC	13.8 VDC	Plastic	3 Wire Leads	62 dB(A)	299.82 g	0.661 lb	-10 °C	60 °C	Blower	54.9 CFM	1.54 mł/min	4000 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	3.485 in H2O	868.1 Pa	12 VDC	CE CSA UL VDE	28.44 W	Locked Rotor Protection Speed Sensor (Tach)

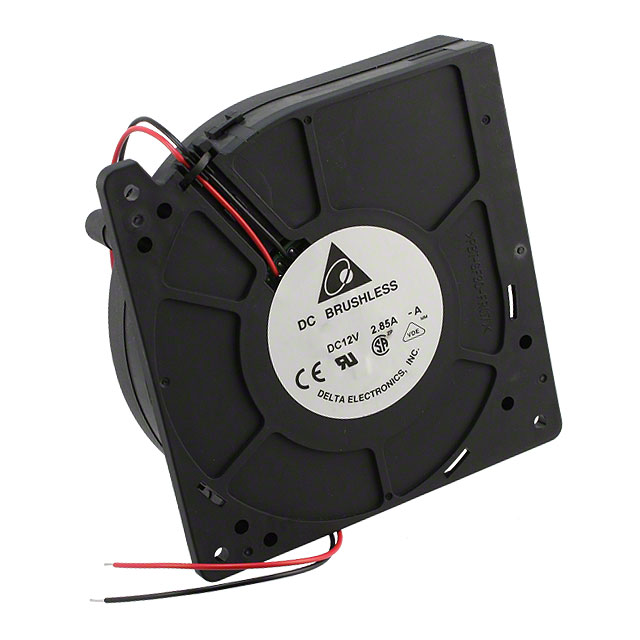

Delta Electronics BFB1212EH-A	Plastic	40 °C 50000 Hrs	2.37 A	5.5 VDC	13.8 VDC	Plastic	2 Wire Leads	62 dB(A)	299.82 g	0.661 lb	-10 °C	60 °C	Blower	54.9 CFM	1.54 mł/min	4000 RPM	Ball	Square/Rounded	120 mm	120 mm		32 mm	3.485 in H2O	868.1 Pa	12 VDC	CE CSA UL VDE	28.44 W
