CXM-7-30 Series

Catalog

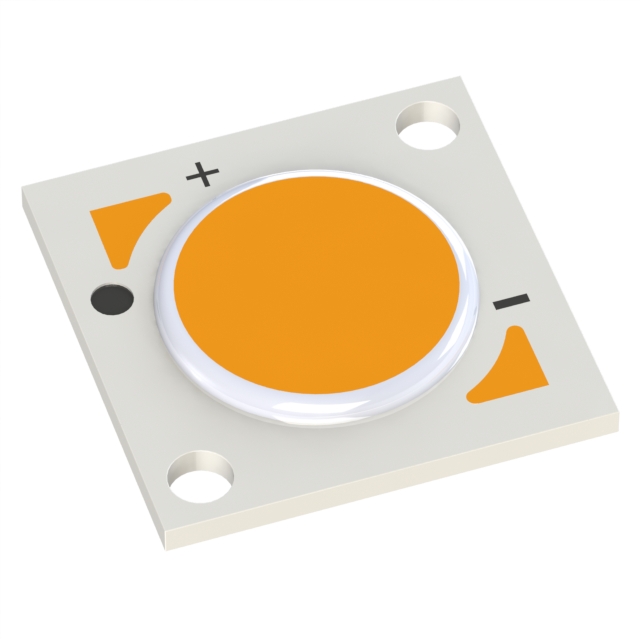

LED COB CXM-7 WARM WHT SQU 3000K

Part	Lumens/Watt @ Current - Test	Height [z]	Luminous Flux @ Current/Temperature	Lens Type	Color	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Configuration	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Current - Max [Max]	Type	Temperature - Test	Voltage - Forward (Vf) (Typ)	Current - Test	CCT (K)
Luminus Devices Inc. CXM-7-30-80-36-AA00-F2-2	113 lm/W	1.37 mm	633 lm	Flat	Warm White	7.5 mm	80	Square	3000 K	13 mm	13 mm	120 °	350 mA	Chip On Board (COB)	85 °C	35 V
Luminus Devices Inc. CXM-7-30-90-18-AA00-F2-2	98 lm/W	1.37 mm	550 lm	Flat	Warm White	7.5 mm	90	Square	3000 K	13 mm	13 mm	120 °	700 mA	Chip On Board (COB)	85 °C	17.5 V	320 mA
Luminus Devices Inc. CXM-7-30-80-12-AA00-F2-2		1.37 mm	650 lm	Flat	Warm White	7.5 mm	80	Square	3000 K	13 mm	13 mm	120 °		Chip On Board (COB)	85 °C	12 V
Luminus Devices Inc. CXM-7-30-80-12-AA00-F2-3		1.37 mm	650 lm	Flat	Warm White	7.5 mm	80	Square	3000 K	13 mm	13 mm	120 °		Chip On Board (COB)	85 °C	12 V		3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-7-30-80-18-AA02-F2-2	116 lm/W	1.37 mm	650 lm	Flat	Warm White	7.5 mm	80	Square	3000 K	13 mm	13 mm	120 °	700 mA	Chip On Board (COB)	85 °C	17.5 V	320 mA
Luminus Devices Inc. CXM-7-30-80-9-AA02-F2-3	115 lm/W	1.37 mm	650 lm	Flat	Warm White	7.5 mm	80	Square	3000 K	13 mm	13 mm	120 °	1.4 A	Chip On Board (COB)	85 °C	8.8 V	640 mA	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-7-30-80-18-AA00-F2-3	116 lm/W	1.37 mm	650 lm	Flat	Warm White	7.5 mm	80	Square	3000 K	13 mm	13 mm	120 °	700 mA	Chip On Board (COB)	85 °C	17.5 V	320 mA	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-7-30-80-18-AA00-F2-2	116 lm/W	1.37 mm	650 lm	Flat	Warm White	7.5 mm	80	Square	3000 K	13 mm	13 mm	120 °	700 mA	Chip On Board (COB)	85 °C	17.5 V	320 mA
Luminus Devices Inc. CXM-7-30-90-36-AA02-F2-3
Luminus Devices Inc. CXM-7-30-95-9-AA00-F2-2	92 lm/W	1.37 mm	520 lm	Flat	Warm White	7.5 mm	95	Square	3000 K	13 mm	13 mm	120 °	1.4 A	Chip On Board (COB)	85 °C	8.8 V	640 mA
