IL-AG5-4 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER VERT 4POS 2.5MM
| Part | Applications | Mated Stacking Heights | Mounting Type | Connector Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Number of Rows | Insulation Material | Contact Material | Contact Length - Post | Contact Length - Post | Contact Shape | Contact Length - Mating | Contact Length - Mating | Insulation Height [custom] | Insulation Height | Contact Finish - Post | Number of Positions | Style | Insulation Color | Current Rating (Amps) | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Termination | Shrouding | Features | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

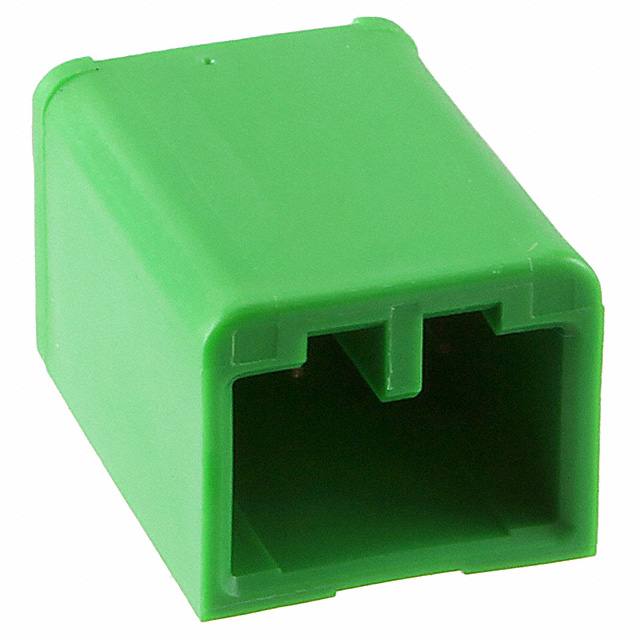

 JAE Electronics | Automotive | 28.2 mm | Through Hole | Header | Male Pin | 85 °C | -40 C | Push-Pull | 1 | Polybutylene Terephthalate (PBT) | Brass | 0.138 in | 3.5 mm | Square | 0.331 in | 8.4 mm | 0.717 in | 18.2 mm | Tin | 4 | Board to Cable/Wire | Green | 3 A | All | 2.5 mm | 0.098 in | 3.5 mm | 0.138 in | Solder | Shrouded - 4 Wall | ||

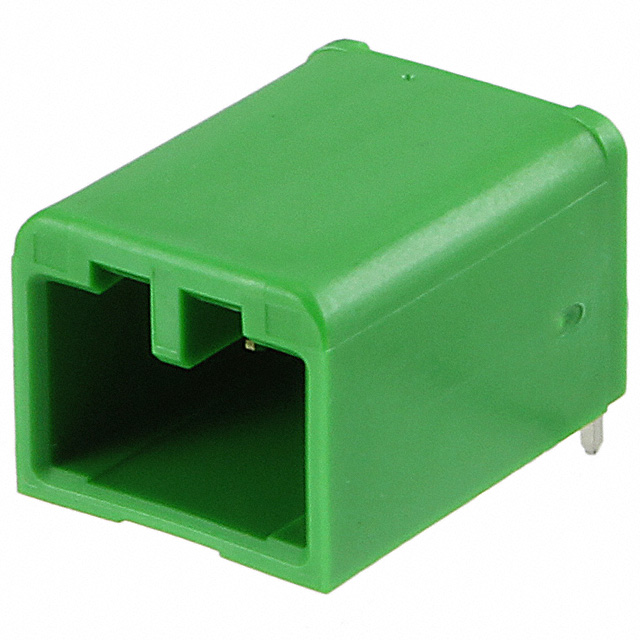

 JAE Electronics | Automotive | Right Angle Through Hole | Header | Male Pin | 85 °C | -40 C | Push-Pull | 1 | Polybutylene Terephthalate (PBT) | Brass | 0.138 in | 3.5 mm | Square | 0.331 in | 8.4 mm | 11 mm | Tin | 4 | Board to Cable/Wire | Green | 3 A | All | 2.5 mm | 0.098 in | Solder | Shrouded - 4 Wall | Board Guide | 0.433 " |
