325-082 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 82POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Gender | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Card Type | Termination | Color | Pitch | Pitch | Card Thickness | Card Thickness | Number of Positions/Bay/Row | Contact Finish | Contact Type | Flange Feature | Mounting Type | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

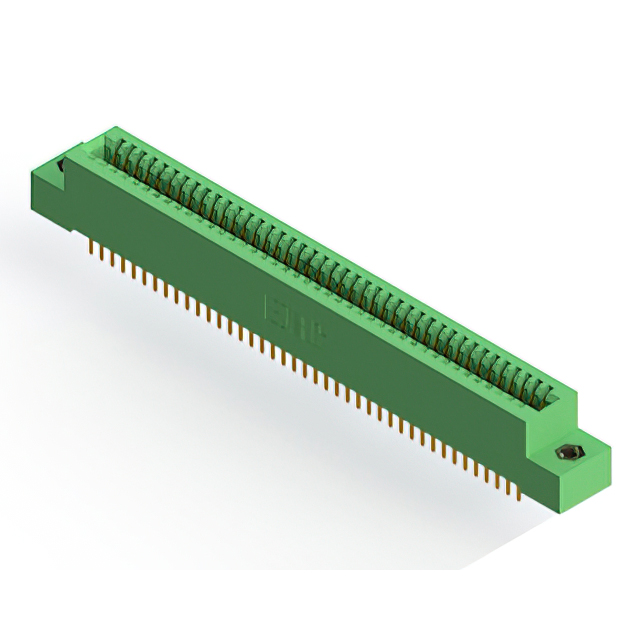

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Copper Alloy | Female | Dual | -65 ░C | 125 °C | 82 | Non Specified - Dual Edge | Solder | Green | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 41 | Gold | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 2 | ||

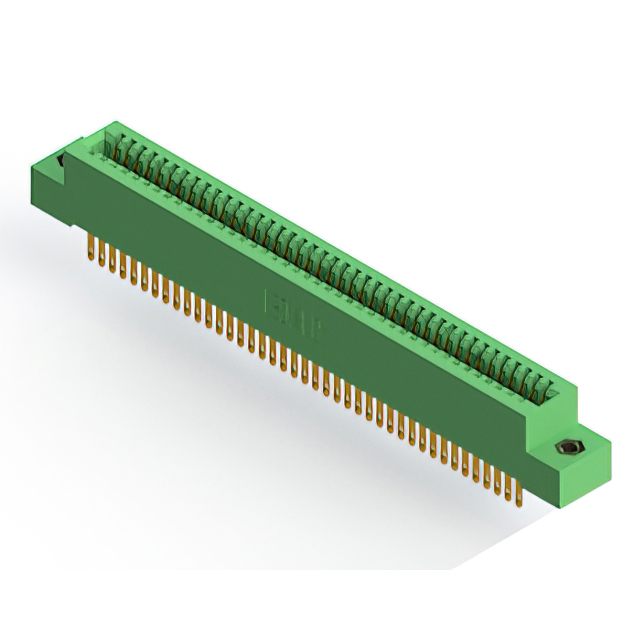

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Copper Alloy | Female | Dual | -65 ░C | 125 °C | 82 | Non Specified - Dual Edge | Solder Eyelet(s) | Green | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 41 | Gold | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 2 | ||

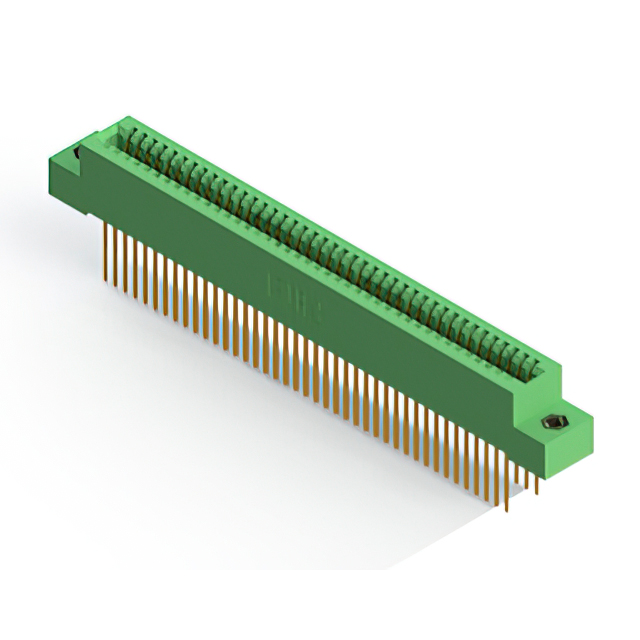

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Copper Alloy | Female | Dual | -65 ░C | 125 °C | 82 | Non Specified - Dual Edge | Solder | Green | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 41 | Gold | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 2 | ||

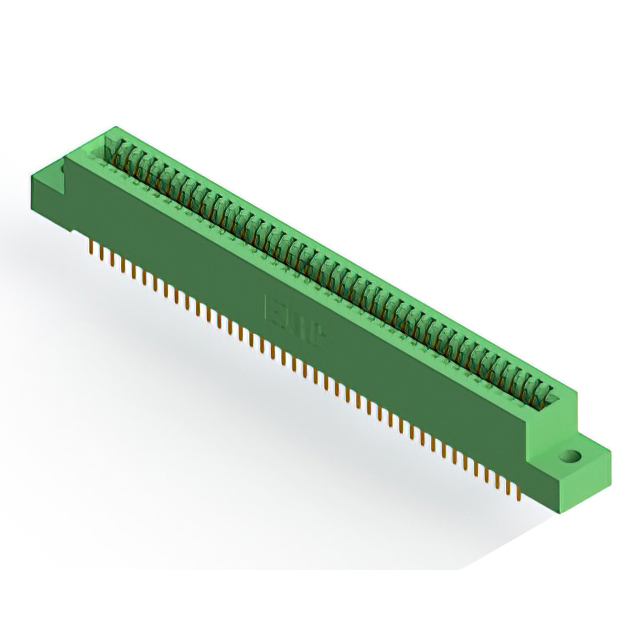

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Copper Alloy | Female | Dual | -65 ░C | 125 °C | 82 | Non Specified - Dual Edge | Solder | Green | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 41 | Gold | Cantilever | Flush Mount Top Opening Unthreaded | Through Hole | 2 | 0.16 " | 4.06 mm |
