M5010064 Series
Manufacturer: Sensata-Crydom
Beta
⌘K

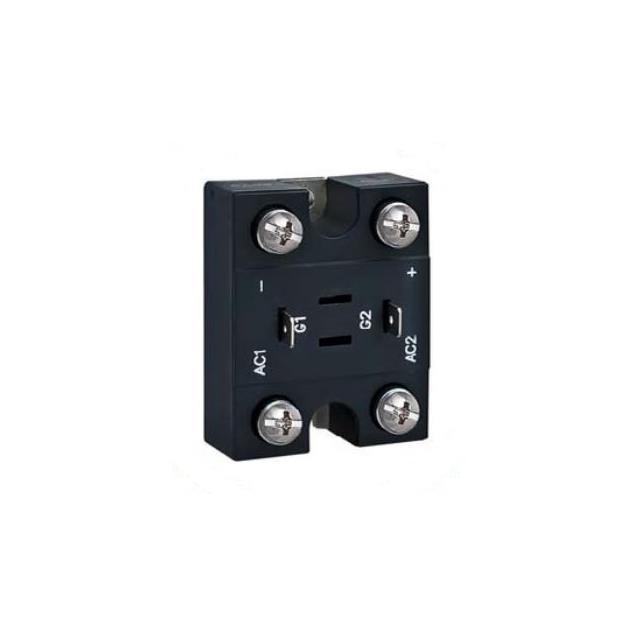

M SERIES POWER MODULE
| Part | Voltage - Off State | Number of SCRs, Diodes [custom] | Number of SCRs, Diodes [custom] | Current - Gate Trigger (Igt) (Max) [Max] | Structure | Current - Non Rep. Surge 50, 60Hz (Itsm) | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 1 kV | 2 | 2 | 150 mA | Bridge Single Phase - SCRs/Diodes (Layout 1) | 1500 A | -40 C | 125 °C | Module | Chassis Mount |
