M66 Series

Manufacturer: Quectel

Catalog

CELLULAR MODULE, GPRS, GSM, 3.3V TO 4.6V, 17.7MM X 15.8MM X 2.3MM

Part	Serial Interfaces	Antenna Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Frequency	Package / Case	RF Family/Standard	Current - Receiving	Mounting Type	Protocol	Utilized IC / Part
Quectel M66DSFATEA-04-STDN	UART	Antenna Not Included	3.3 V	4.6 V	-109 dBm	85 °C	-40 C	85.6 kbps	1.8 GHz 1.9 GHz 850 MHz 900 MHz	52-SMD Module	Bluetooth Cellular	1.3 mA	Surface Mount	Bluetooth v3.0 GPRS GSM
Quectel M66FB-03-STD	UART	Antenna Not Included	3.3 V	4.6 V	-109 dBm	85 °C	-40 C	85.6 kbps	1.8 GHz 1.9 GHz 850 MHz 900 MHz	52-SMD Module	Bluetooth Cellular	1.3 mA	Surface Mount	Bluetooth v3.0 GPRS GSM	MT6261M
Quectel M66FATEA-04-STDN	UART	Antenna Not Included	3.3 V	4.6 V	-109 dBm	85 °C	-40 C	85.6 kbps	1.8 GHz 1.9 GHz 850 MHz 900 MHz	52-SMD Module	Bluetooth Cellular	1.3 mA	Surface Mount	Bluetooth v3.0 GPRS GSM
Quectel M66FA-04-STDN	UART	Antenna Not Included	3.3 V	4.6 V	-109 dBm	85 °C	-40 C	85.6 kbps	1.8 GHz 1.9 GHz 850 MHz 900 MHz	52-SMD Module	Bluetooth Cellular	1.3 mA	Surface Mount	Bluetooth v3.0 GPRS GSM	MT6261D

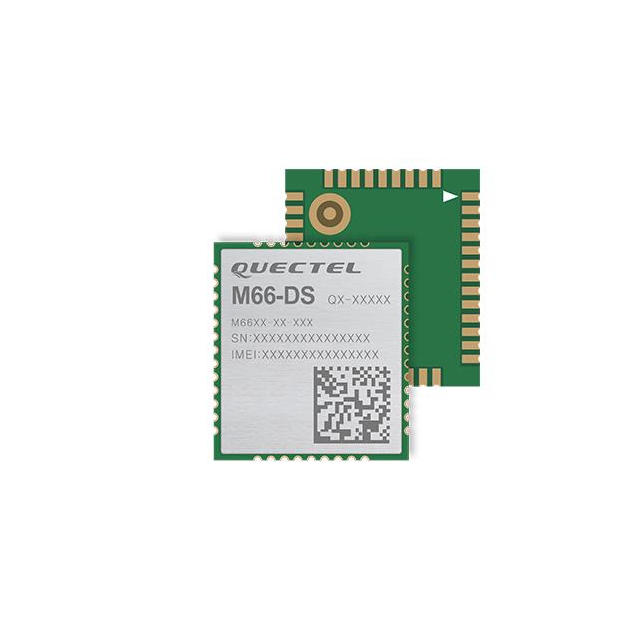

Quectel M66DSFA-04-STDN	ADC PCM SDIO	Antenna Not Included	3.3 V	4.6 V	-109 dBm	85 °C	-40 C	85.6 kbps	1.8 GHz 1.9 GHz 850 MHz 900 MHz	52-SMD Module	Cellular	1.3 mA	Surface Mount	GPRS GSM	MT6261D
Quectel M66FB-03-BT	UART	Antenna Not Included	3.3 V	4.6 V	-109 dBm	85 °C	-40 C	85.6 kbps	1.8 GHz 1.9 GHz 850 MHz 900 MHz	52-SMD Module	Bluetooth Cellular	1.3 mA	Surface Mount	Bluetooth v3.0 GPRS GSM	MT6261M
Quectel M66FBTEA-03-STD	UART	Antenna Not Included	3.3 V	4.6 V	-109 dBm	85 °C	-40 C	85.6 kbps	1.8 GHz 1.9 GHz 850 MHz 900 MHz	52-SMD Module	Bluetooth Cellular	1.3 mA	Surface Mount	Bluetooth v3.0 GPRS GSM
