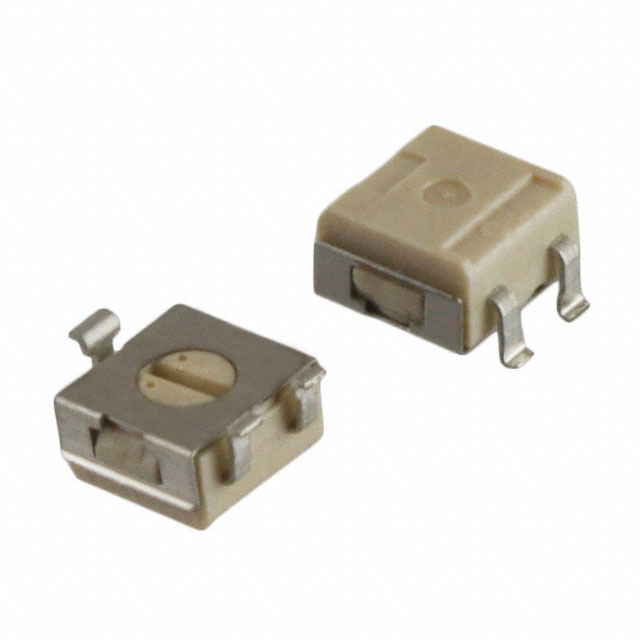

3314R Series

Catalog

TRIMMER 20K OHM 0.25W GW BOT ADJ

Part	Adjustment Type	Number of Turns	Tolerance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistance	Resistive Material

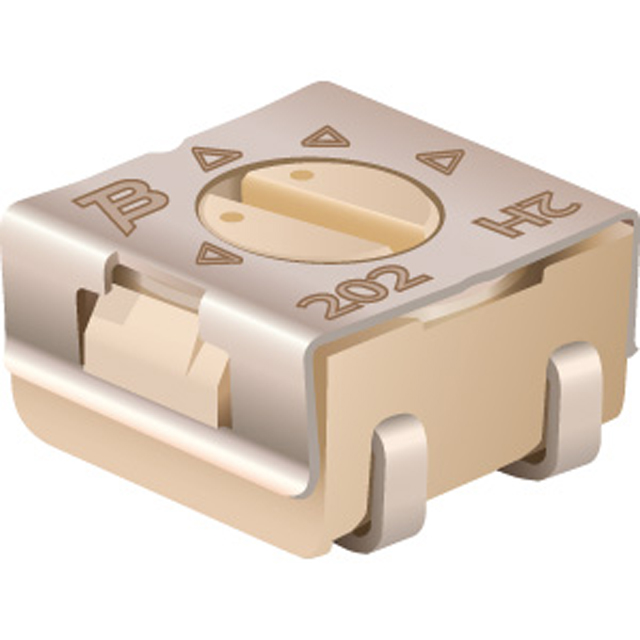

Bourns Inc. 3314R-2-203E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	20 kOhms	Cermet
Bourns Inc. 3314R-2-103E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	10000 Ohms	Cermet
Bourns Inc. 3314R-1-203E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	20 kOhms	Cermet
Bourns Inc. 3314R-1-200E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	20 Ohms	Cermet
Bourns Inc. 3314R-1-472E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	4.7 kOhms	Cermet
Bourns Inc. 3314R-1-202E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	2 kOhms	Cermet
Bourns Inc. 3314R-1-105E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	1 MOhms	Cermet
Bourns Inc. 3314R-1-100E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	10 Ohms	Cermet
Bourns Inc. 3314R-1-204E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	200000 Ohms	Cermet
Bourns Inc. 3314R-1-101E	Bottom Adjustment	1	20 %	Surface Mount	0.177 "	0.177 in	Face	4.5 mm	4.5 mm	Gull Wing	100 ppm/°C	0.25 W	0.25 W	100 Ohms	Cermet
