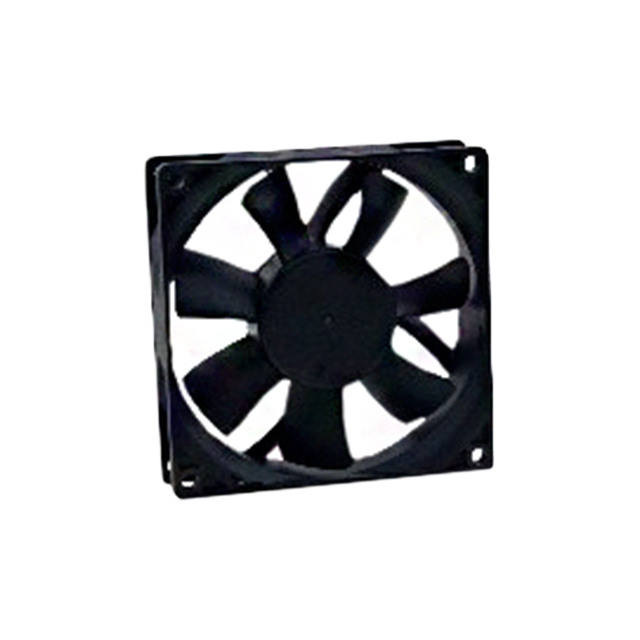

MR9225 Series

Catalog

FAN AXIAL 92X25MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	RPM	Air Flow	Air Flow	Noise	Static Pressure	Static Pressure	Features	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Width [y]	Weight [custom]	Weight [custom]	Bearing Type	Termination	Voltage - Rated
Mechatronics Fan Group MR9225E24B1-FSR	0.31 A	Plastic	Plastic	4400 RPM	2.77 m³/min	99 CFM	50.8 dB(A)	0.49 in H2O	122.1 Pa	Auto Restart Speed Sensor (Tach)	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	3 Wire Leads	24 VDC
Mechatronics Fan Group MR9225M24B2-FSR	190 mA	Plastic	Plastic	3600 RPM	2.27 m³/min	81 CFM	45.1 dB(A)	0.33 in H2O	82.2 Pa	Auto Restart Locked Rotor Sensor	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	3 Wire Leads	24 VDC
Mechatronics Fan Group MR9225M24B1+6-FSR	190 mA	Plastic	Plastic	3600 RPM	2.27 m³/min	81 CFM	45.1 dB(A)	0.33 in H2O	82.2 Pa	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	4 Wire Leads	24 VDC
Mechatronics Fan Group MR9225E24B1+6-FSR	0.31 A	Plastic	Plastic	4400 RPM	2.77 m³/min	99 CFM	50.8 dB(A)	0.49 in H2O	122.1 Pa	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	4 Wire Leads	24 VDC
Mechatronics Fan Group MR9225H24B2-FSR	0.25 A	Plastic	Plastic	4000 RPM	2.52 m³/min	90 CFM	48 dB	0.4 in H2O	99.6 Pa	Auto Restart Locked Rotor Sensor	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	3 Wire Leads	24 VDC
Mechatronics Fan Group MR9225X24B2-FSR	0.42 A	Plastic	Plastic	4800 RPM	3 m³/min	107 CFM	53 dB	0.58 in H2O	144.5 Pa	Auto Restart Locked Rotor Sensor	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	3 Wire Leads	24 VDC
Mechatronics Fan Group MR9225X24B1-FSR	0.42 A	Plastic	Plastic	4800 RPM	3 m³/min	107 CFM	53 dB	0.58 in H2O	144.5 Pa	Auto Restart Speed Sensor (Tach)	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	3 Wire Leads	24 VDC
Mechatronics Fan Group MR9225L24B-FSR	110 mA	Plastic	Plastic	3000 RPM	1.9 m³/min	68 CFM	40.9 dB(A)	0.23 in H2O	57.3 Pa	Auto Restart	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	2 Wire Leads	24 VDC
Mechatronics Fan Group MR9225M24B1-FSR	190 mA	Plastic	Plastic	3600 RPM	2.27 m³/min	81 CFM	45.1 dB(A)	0.33 in H2O	82.2 Pa	Auto Restart Speed Sensor (Tach)	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	3 Wire Leads	24 VDC
Mechatronics Fan Group MR9225L24B1+6-FSR	110 mA	Plastic	Plastic	3000 RPM	1.9 m³/min	68 CFM	40.9 dB(A)	0.23 in H2O	57.3 Pa	Auto Restart PWM Control Speed Sensor (Tach)	Tubeaxial	92 mm	92 mm	CE cUL TUV UL	25 mm	0.264 lb	119.75 g	Ball	4 Wire Leads	24 VDC
