TG-5511CA Series

Manufacturer: EPSON

Catalog

TG-5511CA-81N 19.2000M0: TCXO MH

Part	Frequency	Frequency Stability	Voltage - Supply	Type	Current - Supply (Max) [Max]	Package / Case	Mounting Type	Output	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
EPSON TG-5511CA-81N 19.2000M0	19.2 MHz	28 ppm	3.3 V	TCXO	7 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "
EPSON TG-5511CA-92N 25.6000M0	25.6 MHz	28 ppm	3.3 V	TCXO	7 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "
EPSON TG-5511CA-82N 38.4000M0	38.4 MHz	28 ppm	3.3 V	TCXO	9 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "
EPSON TG-5511CA-91N 19.4400M0	19.44 MHz	28 ppm	3.3 V	TCXO	7 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "
EPSON TG-5511CA-90N 25.0000M0	25 MHz	28 ppm	3.3 V	TCXO	7 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "
EPSON TG-5511CA-78N 49.1520M0	49.152 MHz	28 ppm	3.3 V	TCXO	10 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "

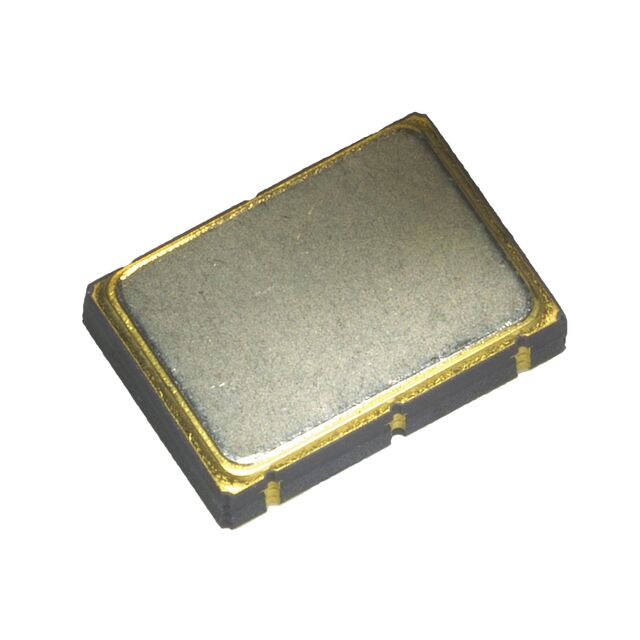

EPSON TG-5511CA-76N 30.7200M0	30.72 MHz	28 ppm	3.3 V	TCXO	9 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "
EPSON TG-5511CA-96N 38.8800MB	38.88 MHz	28 ppm	3.3 V	TCXO	9 mA	4-SMD No Lead	Surface Mount	CMOS	4-SMD (7x5)	85 °C	-40 C	Crystal	0.067 in	1.7 mm	5 mm	7 mm	0.197 "	0.276 "
