TFLS Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 50A 32VAC 32VDC
| Part | Color | Response Time | Fuse Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Current Rating (Amps) | Mounting Type | Package / Case | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Voltage Rating - AC | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

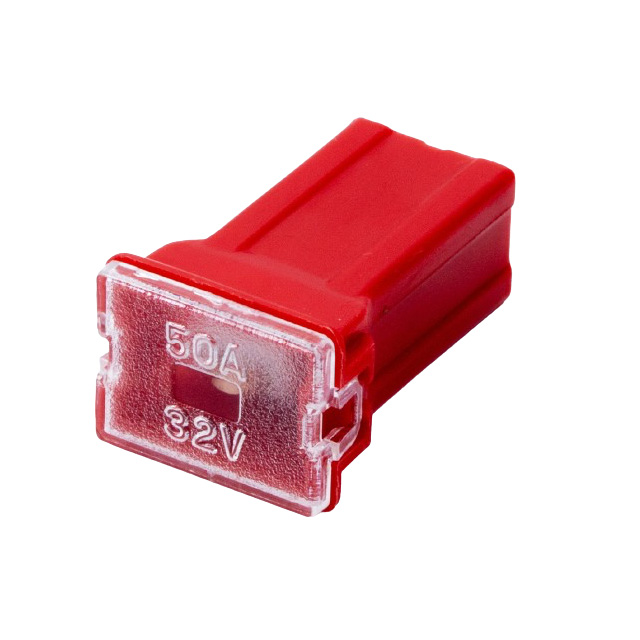

 OptiFuse | Red | Fast Blow | Automotive | 26.9 mm | 0.492 " | 12.5 mm | 16.2 mm | 1.059 " | 0.638 " | 50 A | Requires Holder | Auto Link | 1 kA | 32 V | 32 V | ISO SAE |

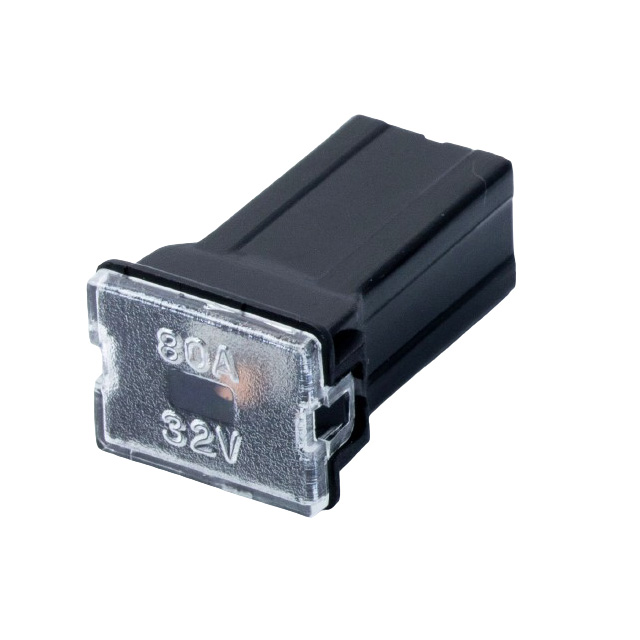

 OptiFuse | Black | Fast Blow | Automotive | 26.9 mm | 0.492 " | 12.5 mm | 16.2 mm | 1.059 " | 0.638 " | 80 A | Requires Holder | Auto Link | 1 kA | 32 V | 32 V | ISO SAE |

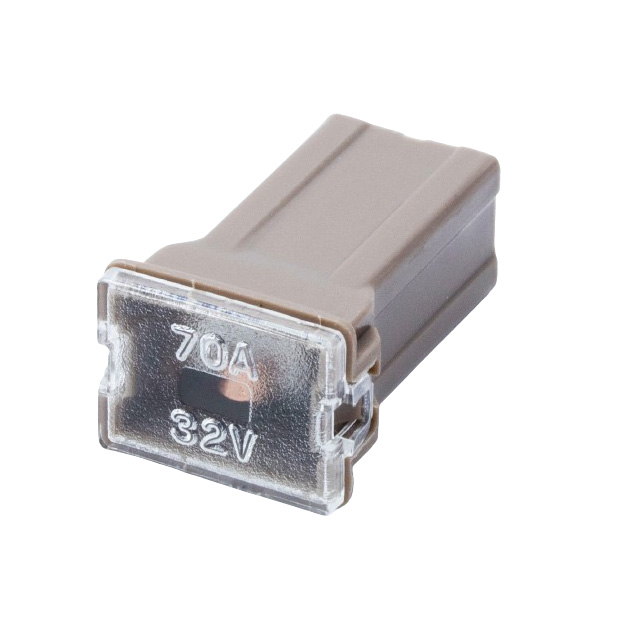

 OptiFuse | Brown | Fast Blow | Automotive | 26.9 mm | 0.492 " | 12.5 mm | 16.2 mm | 1.059 " | 0.638 " | 70 A | Requires Holder | Auto Link | 1 kA | 32 V | 32 V | ISO SAE |

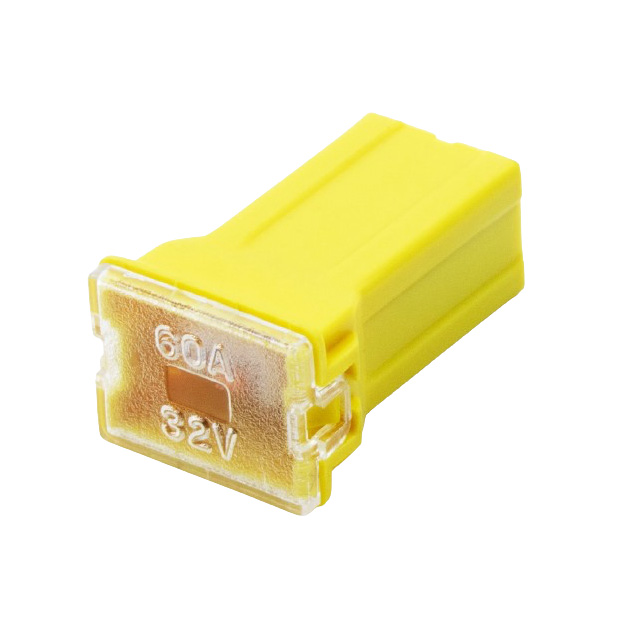

 OptiFuse | Yellow | Fast Blow | Automotive | 26.9 mm | 0.492 " | 12.5 mm | 16.2 mm | 1.059 " | 0.638 " | 60 A | Requires Holder | Auto Link | 1 kA | 32 V | 32 V | ISO SAE |

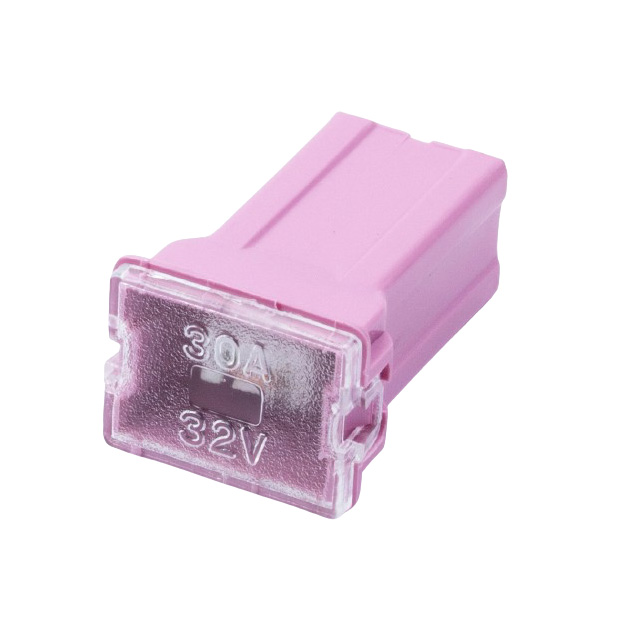

 OptiFuse | Pink | Fast Blow | Automotive | 26.9 mm | 0.492 " | 12.5 mm | 16.2 mm | 1.059 " | 0.638 " | 30 A | Requires Holder | Auto Link | 1 kA | 32 V | 32 V | ISO SAE |
