9066 Series
Manufacturer: Belden Inc.
Beta
⌘K

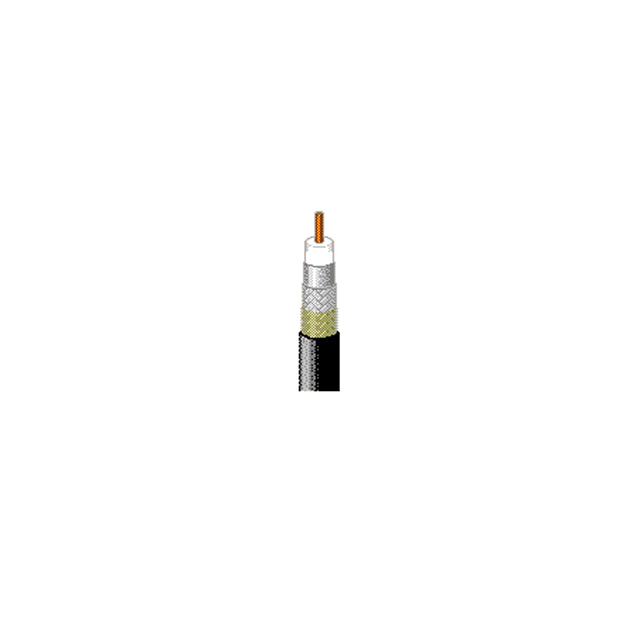

COAX 75 OHM RG6 18AWG DB
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | VoP, Velocity of Propagation | Shield Material | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage [custom] | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket Color | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Wire Gauge | Conductor Strand | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam Polyethylene (FPE) | -55 C | 80 °C | 83 | Aluminum | Copper Coated Steel | 0.18 in | 4.57 mm | 60 % 100 % | Polyethylene (PE) | 304.8 m | 1000 ft | Orange | Braid Foil | Coaxial | 0.27 " | 6.86 mm | 75 Ohms | 18 AWG | Solid | RG-6 |
