M225-520 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN HEADER VERT 26POS 2MM
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Style | Number of Rows [custom] | Contact Shape | Fastening Type | Insulation Height | Insulation Height | Features | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Connector Type | Insulation Color | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Type | Number of Positions Loaded | Mounting Type | Contact Material | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

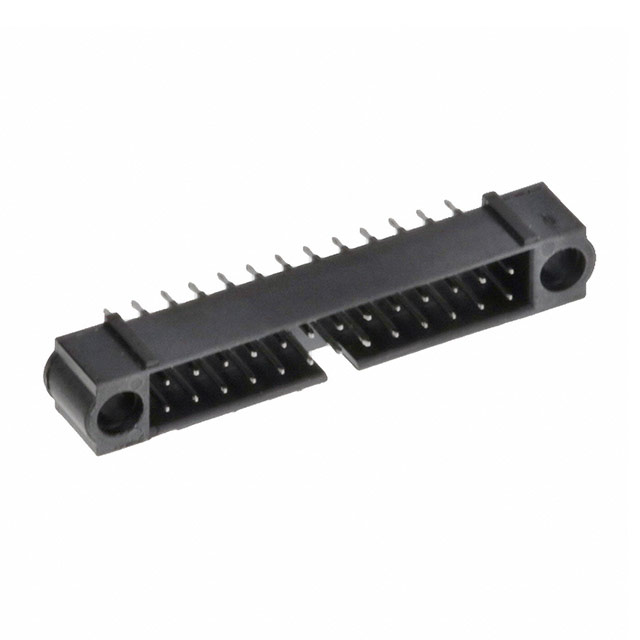

 Harwin Inc. | 118.1 µin | 3 µm | 0.13 " | 3.3 mm | UL94 V-0 | -55 C | 125 °C | Solder | Board to Cable/Wire | 2 | Circular | Push-In | 5.6 mm | 0.22 in | Mating Flange Polarizing Key | Shrouded - 4 Wall | 2 mm | 0.079 in | 3 A | Plug | Black | 0.079 " | 2 mm | 26 | Male Pin | All | Through Hole | Phosphor Bronze | Polyphenylene Sulfide (PPS) Glass Filled | 118.1 µin | 3 µm | Tin | |

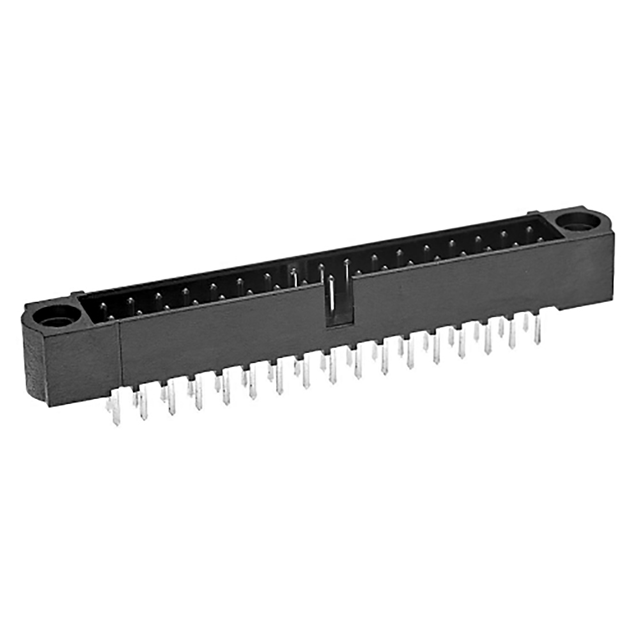

 Harwin Inc. | 118.1 µin | 3 µm | 0.13 " | 3.3 mm | UL94 V-0 | -55 C | 125 °C | Solder | Board to Cable/Wire | 2 | Circular | Push-In | 5.6 mm | 0.22 in | Mating Flange Polarizing Key | Shrouded - 4 Wall | 2 mm | 0.079 in | 3 A | Plug | Black | 0.079 " | 2 mm | Male Pin | All | Through Hole | Phosphor Bronze | Polyphenylene Sulfide (PPS) Glass Filled | 118.1 µin | 3 µm | Tin | 34 |
