HS16-1 Series

Catalog

SWITCH ROTARY

Part	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Mounting Type	Current Rating (Amps)	Number of Poles per Deck	Actuator Type	Actuator Type [diameter]	Number of Positions [Max]	Number of Positions [Min]	Angle of Throw	Circuit per Deck	Voltage Rating - AC	Contact Material	Depth Behind Panel [z]	Number of Decks [custom]	Index Stops	Termination Style	Contact Timing
NKK Switches HS16-1SN-AT431

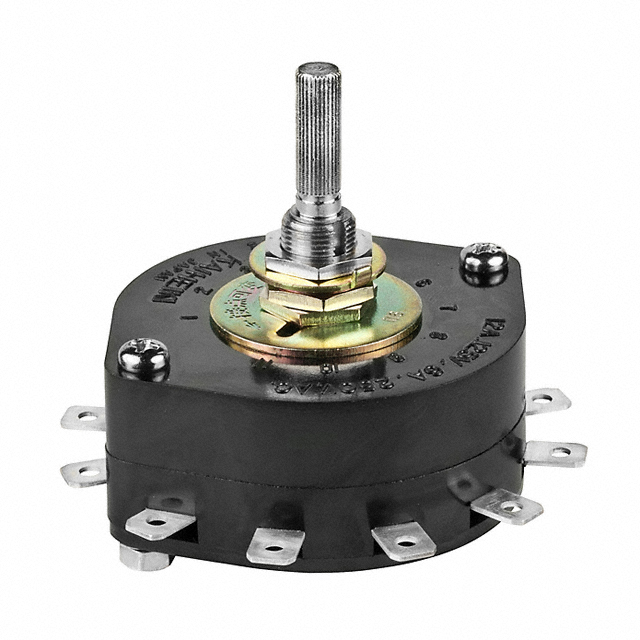

NKK Switches HS16-1S	10.3 mm	15 mm	Panel Mount	12 A	1	Knurled	6 mm	11	2	30 °	SP11T	125 V	Phosphor Bronze	31.5 mm	1	Adjustable	Solder Lug	Shorting (MBB)
NKK Switches HS16-1N-AT431
NKK Switches HS16-1SN	10.3 mm	15 mm	Panel Mount	12 A	1	Flatted	6 mm	11	2	30 °	SP11T	125 V	Phosphor Bronze	31.5 mm	1	Adjustable	Solder Lug	Shorting (MBB)
NKK Switches HS16-1N	10.3 mm	15 mm	Panel Mount	12 A	1	Flatted	6 mm	11	2	30 °	SP11T	125 V	Phosphor Bronze	31.5 mm	1	Adjustable	Solder Lug	Non-Shorting (BBM)

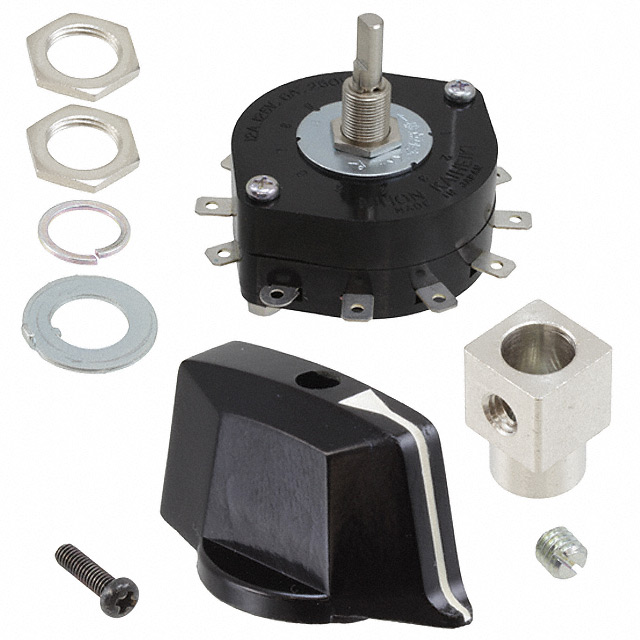

NKK Switches HS16-1N-AT432	10.3 mm	15 mm	Panel Mount	12 A	1	Knob		11	2	30 °	SP11T	125 V	Phosphor Bronze	31.5 mm	1	Adjustable	Solder Lug	Non-Shorting (BBM)
