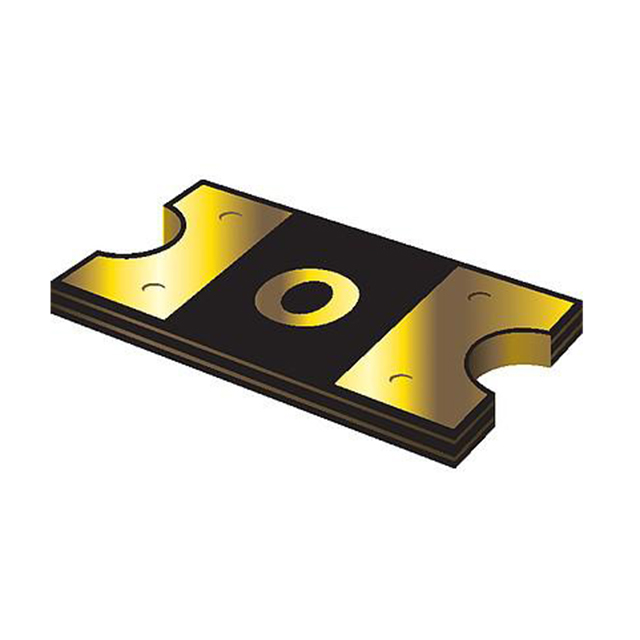

PFNF.075 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PTC RESET FUSE 6V 750MA 1206
| Part | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Resistance - Initial (Ri) (Min) [Min] | Current - Trip (It) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Hold (Ih) (Max) [Max] | Time to Trip | Resistance - Post Trip (R1) (Max) [Max] | Voltage - Max [Max] | Current - Max [Max] | Thickness (Max) [Max] | Thickness (Max) [Max] | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | cURus TUV | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 100 mOhms | 1.5 A | 85 °C | -40 C | 1206 (3216 Metric) Concave | 750 mA | 100 ms | 400 mOhms | 6 V | 100 A | 0.7 mm | 0.028 in | Polymeric | Surface Mount |
