746611 Series

Catalog

CONN DIP HDR IDC 14POS VERT

Part	Number of Positions Loaded	Features	Number of Rows [custom]	Cable Termination	Color	Contact Finish	Mounting Type	Number of Positions	Board-Side Pitch	Board-Side Pitch	Wire Gauge [Min] [custom]	Wire Gauge [custom]	Wire Gauge [Max] [custom]	Wire Gauge [custom]	Row Spacing	Row Spacing	Connector Type	Cable Pitch	Cable Pitch	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 746611-2	All	Feed Through	2	IDC	Black	Gold	Through Hole	14	2.54 mm	0.1 "	26 AWG	Solid Stranded	30 AWG	28 AWG	0.3 in	7.62 mm	DIP Header Ribbon Cable	1.27 mm	0.05 in	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 746611-9	All	Feed Through	2	IDC	Black	Gold	Through Hole	18	2.54 mm	0.1 "	26 AWG	Solid Stranded	30 AWG	28 AWG	0.3 in	7.62 mm	DIP Header Ribbon Cable	1.27 mm	0.05 in	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 746611-1	All	Feed Through	2	IDC	Black	Gold	Through Hole	8	2.54 mm	0.1 "	26 AWG	Solid Stranded	30 AWG	28 AWG	0.3 in	7.62 mm	DIP Header Ribbon Cable	1.27 mm	0.05 in	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 746611-3	All	Feed Through	2	IDC	Black	Gold	Through Hole	16	2.54 mm	0.1 "	26 AWG	Solid Stranded	30 AWG	28 AWG	0.3 in	7.62 mm	DIP Header Ribbon Cable	1.27 mm	0.05 in	30 Áin	0.76 Ám

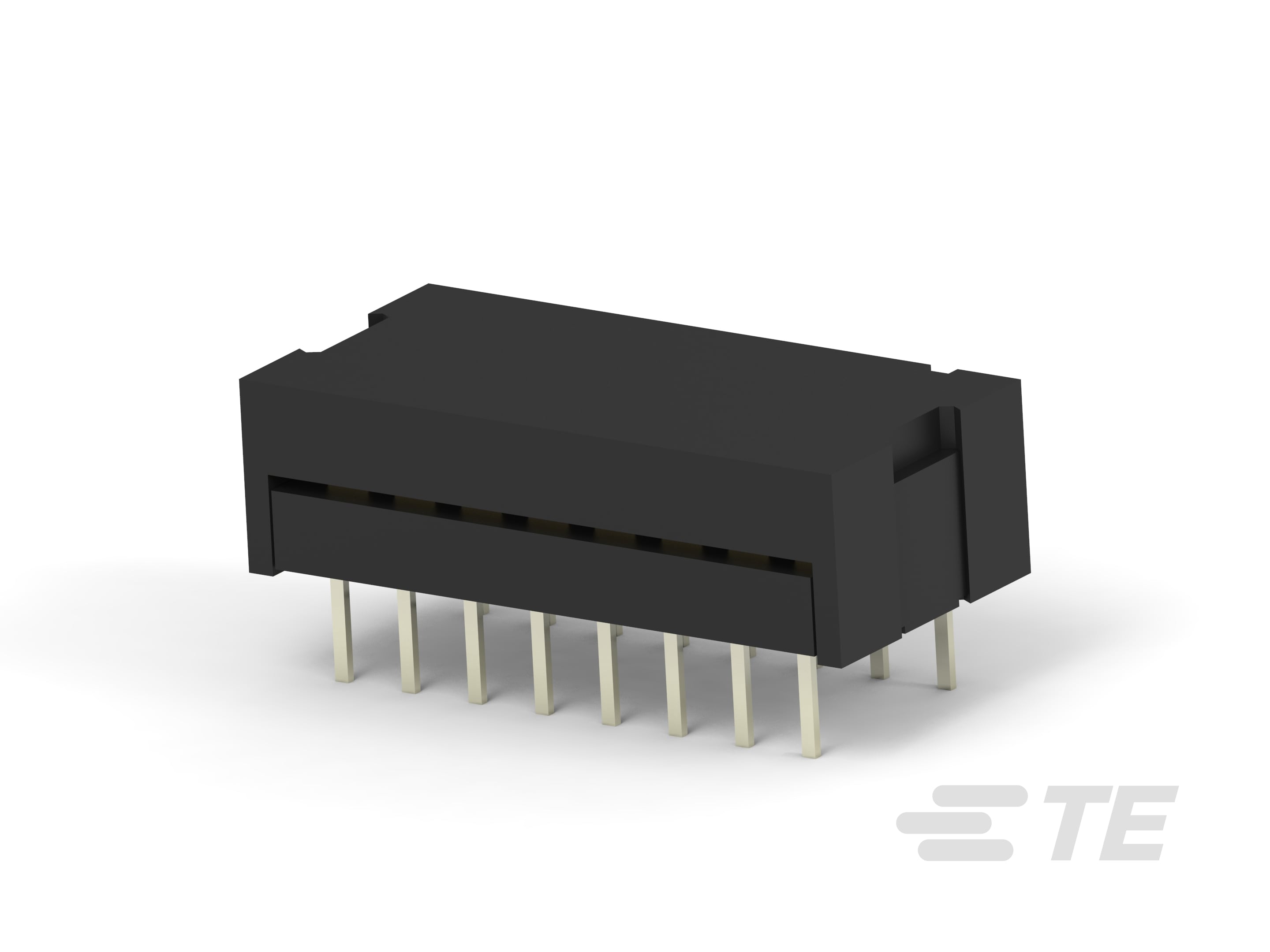

TE Connectivity AMP Connectors 746611-6	All	Feed Through	2	IDC	Black	Gold	Through Hole	16	2.54 mm	0.1 "	26 AWG	Solid Stranded	30 AWG	28 AWG	0.3 in	7.62 mm	DIP Header Ribbon Cable	1.27 mm	0.05 in	30 Áin	0.76 Ám

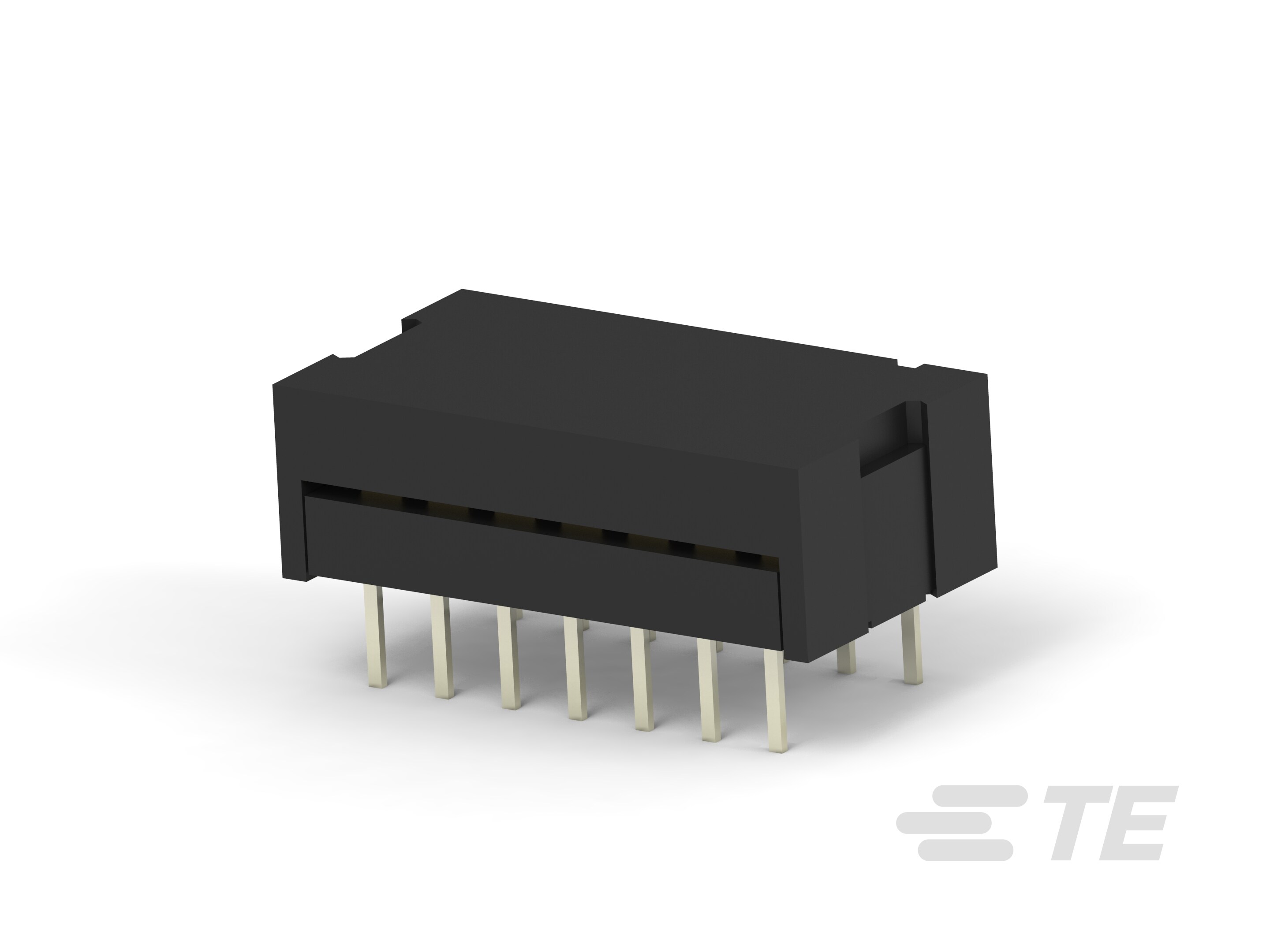

TE Connectivity AMP Connectors 746611-8	All	Feed Through	2	IDC	Black	Gold	Through Hole	14	2.54 mm	0.1 "	26 AWG	Solid Stranded	30 AWG	28 AWG	0.3 in	7.62 mm	DIP Header Ribbon Cable	1.27 mm	0.05 in	30 Áin	0.76 Ám
