88723 Series
Manufacturer: Belden Inc.
Beta
⌘K

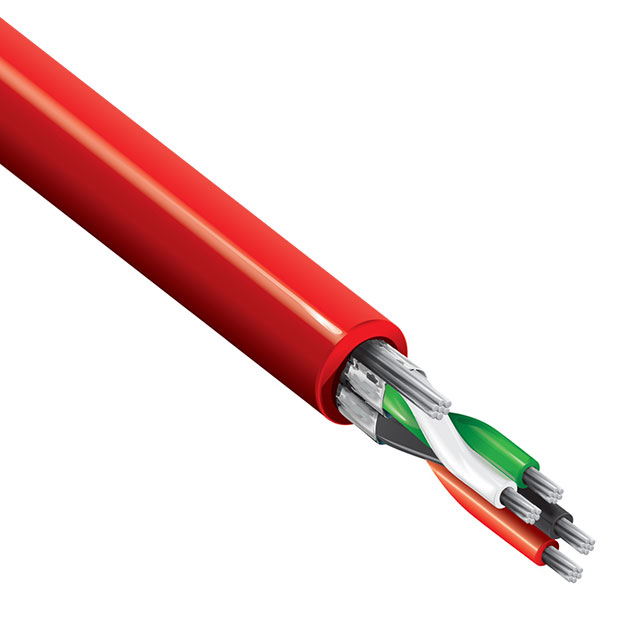

MULTI-PAIR 4COND 22AWG RED
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Insulation | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Cable Type | Usage | Jacket Color | Conductor Material | Shield Type | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 30 AWG | 7 | Drain Wire | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | 3.76 mm | 0.148 " | 22 AWG | -70 °C | 200 °C | UL Style CMP | Multi-Pair | Audio Control Instrumentation | Red | Copper Tinned | Foil | 4 | ||
Belden Inc. | Aluminum | 100 % | 30 AWG | 7 | Drain Wire | 0.014 in | 0.356 mm | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) | 3.76 mm | 0.148 " | 22 AWG | -70 °C | 200 °C | UL Style CMP | Multi-Pair | Red | Copper Tinned | Foil | 4 | 152.4 m | 500 ft |
