PPPN132 Series

Catalog

CONN HDR 26P 0.079 GOLD PCB R/A

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height [z]	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Contact Type	Number of Positions Loaded	Termination	Fastening Type	Number of Rows [custom]	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Height	Insulation Height	Current Rating (Amps)

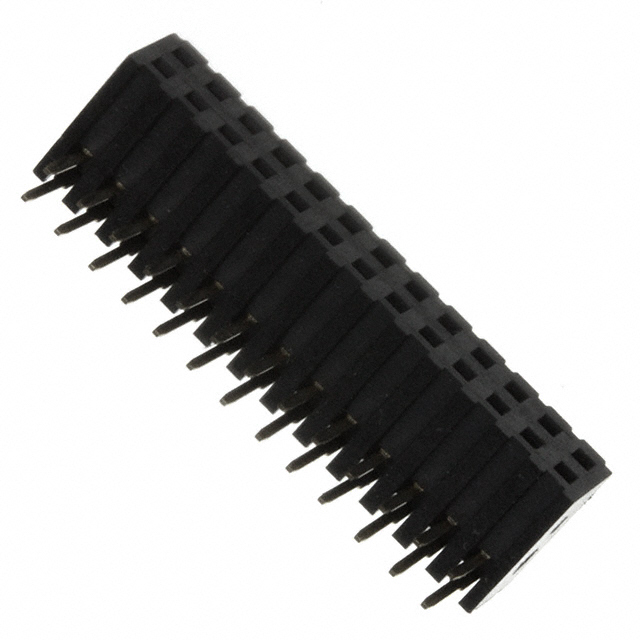

Sullins Connector Solutions PPPN132FJFN	Square	Phosphor Bronze	Flash	Polyester	0.079 "	2 mm	4.85 mm	0.191 in	Gold	Black	Gold	Female Socket	All	Solder	Push-Pull	2	Right Angle Through Hole	UL94 V-0	-40 C	105 ░C	0.118 in	3 mm	Header	2 mm	0.079 in	Flash	26
Sullins Connector Solutions PPPN132AFCN	Square	Phosphor Bronze	Flash	Polyester	0.079 "	2 mm	4.3 mm		Gold	Black	Gold	Female Socket	All	Solder	Push-Pull	2	Through Hole	UL94 V-0	-40 C	105 ░C	0.094 in	2.4 mm	Header	2 mm	0.079 in	Flash	26	0.169 "
Sullins Connector Solutions PPPN132FFKS	Square	Phosphor Bronze	Flash	Polyester	0.079 "	2 mm	0.173 in		Gold	Black	Gold	Female Socket	All	Solder	Push-Pull	2	Surface Mount	UL94 V-0	-40 C	105 ░C			Header	2 mm	0.079 in	Flash	26		4.4 mm	2 A
