FW20A Series

Catalog

RESFUS AX WW 20R 2W 5% /AMMO PACK

Part	Supplier Device Package	Features	Resistance	Temperature Coefficient	Power (Watts)	Package / Case	Composition	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]

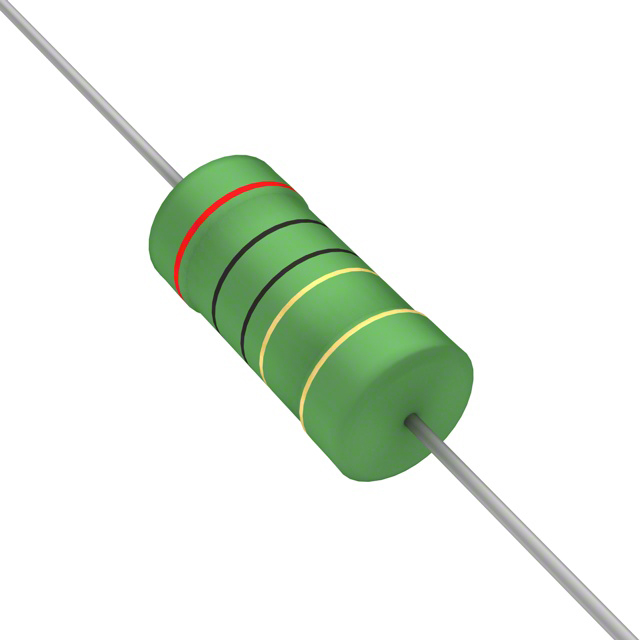

Bourns Inc. FW20A20R0JA	Axial	Fusible Safety	20 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
Bourns Inc. FW20A4R70JA	Axial	Fusible Safety	4.7 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
Bourns Inc. FW20A18R0JA	Axial	Fusible Safety	18 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
Bourns Inc. FW20A5R60JA	Axial	Fusible Safety	5.6 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
Bourns Inc. FW20A15R0JA	Axial	Fusible Safety	15 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
Bourns Inc. FW20A6R20JA	Axial	Fusible Safety	6.2 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in

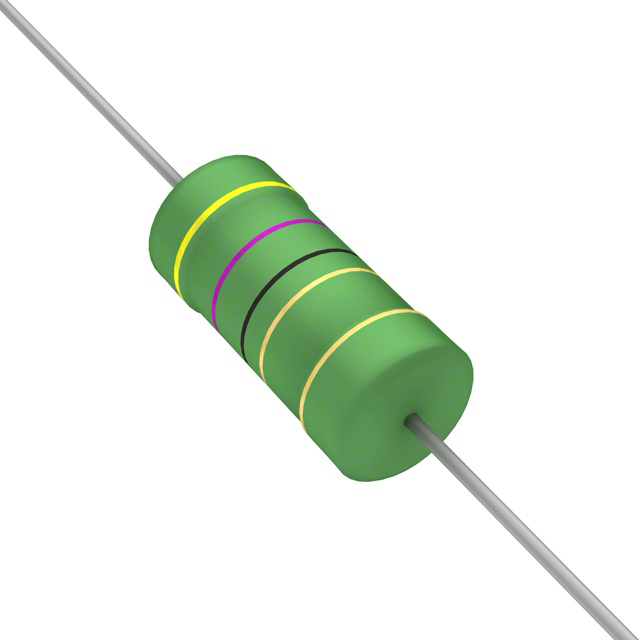

Bourns Inc. FW20A47R0JA	Axial	Fusible Safety	47 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
Bourns Inc. FW20A7R50JA	Axial	Fusible Safety	7.5 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
Bourns Inc. FW20A1000JA	Axial	Fusible Safety	100 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in

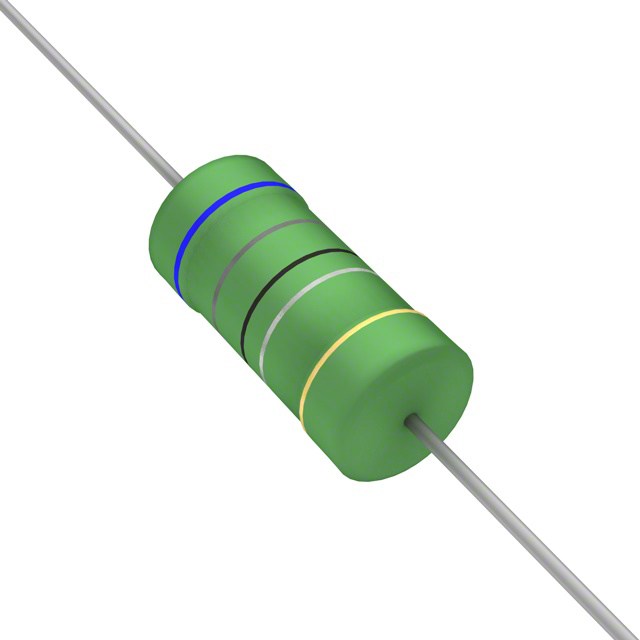

Bourns Inc. FW20A6R80JA	Axial	Fusible Safety	6.8 Ohms	200 ppm/°C	2 W	Axial	Wirewound	2	155 C	-55 C	5 %	0.236 in	6 mm	12 mm	0.472 in
