M2029TJ Series
Manufacturer: NKK Switches
Beta
⌘K

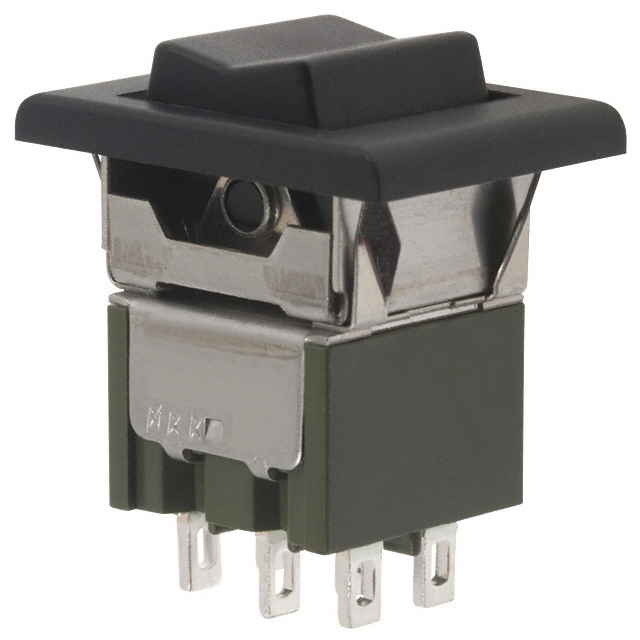

SWITCH ROCKER DPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage Rating - AC | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Approval Agency | Actuator Marking | Mounting Type | Termination Style | Actuator Type | Voltage Rating - DC | Circuit | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | 85 °C | -30 ░C | Epoxy Sealed Terminals | 125 V | On-Off-Mom | 15.9 mm | 13.1 mm | 3 A 6 A | CSA UL | No Marking | Panel Mount Snap-In | Solder Lug | Paddle | 30 V | DPDT | Black |
 NKK Switches | 25000 Steps | 50000 Cycles | 85 °C | -30 ░C | Epoxy Sealed Terminals | 125 V | On-Off-Mom | 15.9 mm | 13.1 mm | 3 A 6 A | CSA UL | No Marking | Panel Mount Snap-In | Solder Lug | Concave | 30 V | DPDT | Black |
