292250 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER R/A 5POS 2MM

Part	Termination	Shrouding	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Contact Finish - Post	Contact Material	Mounting Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Type	Style	Applications	Voltage Rating	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Number of Rows	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Connector Type	Number of Positions

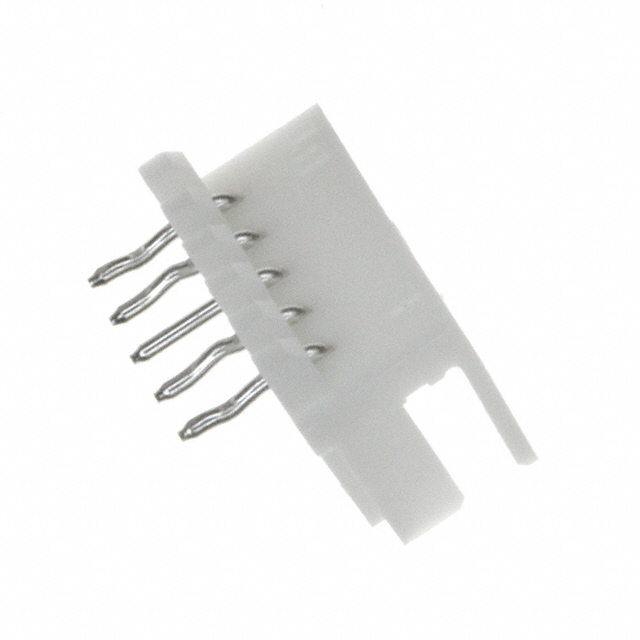

TE Connectivity Raychem Cable Protection 292250-5	Kinked Pin Solder	Shrouded - 4 Wall	5.8 mm	0.228 in	3.2 mm	0.126 in	Polyamide (PA66) Nylon 6/6	Tin	Brass	Through Hole Right Angle	Natural	0.079 in	2 mm	Detent Lock	Male Pin	Board to Cable/Wire	General Purpose	125 VAC	Varies by Wire Gauge	4.2 mm	0.165 in	1	All	UL94 V-0	Square	Header

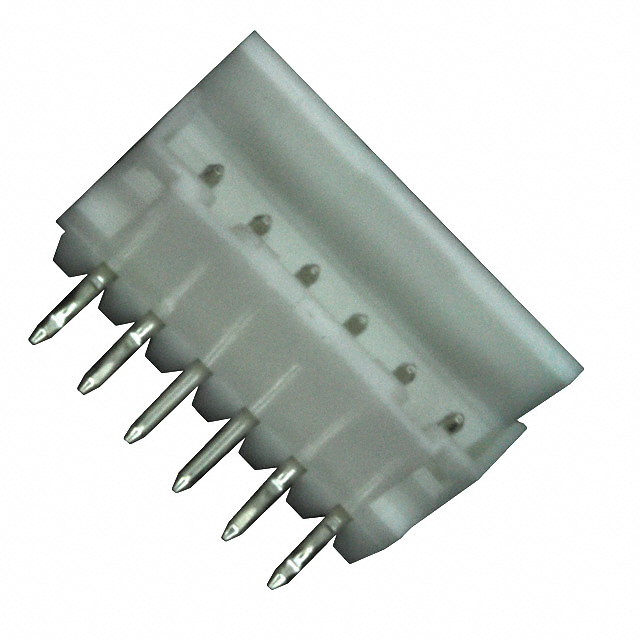

TE Connectivity Raychem Cable Protection 292250-6	Kinked Pin Solder	Shrouded - 4 Wall	5.8 mm	0.228 in	3.2 mm	0.126 in	Polyamide (PA66) Nylon 6/6	Tin	Brass	Through Hole Right Angle	Natural	0.079 in	2 mm	Detent Lock	Male Pin	Board to Cable/Wire	General Purpose	125 VAC	Varies by Wire Gauge	4.2 mm	0.165 in	1	All	UL94 V-0	Square	Header	6

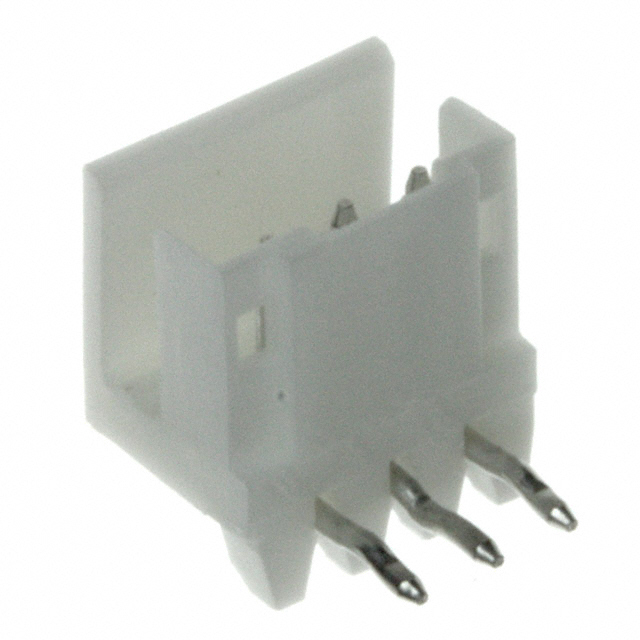

TE Connectivity Raychem Cable Protection 292250-3	Kinked Pin Solder	Shrouded - 4 Wall	5.8 mm	0.228 in	3.2 mm	0.126 in	Polyamide (PA66) Nylon 6/6	Tin	Brass	Through Hole Right Angle	Natural	0.079 in	2 mm	Detent Lock	Male Pin	Board to Cable/Wire	General Purpose	125 VAC	Varies by Wire Gauge	4.2 mm	0.165 in	1	All	UL94 V-0	Square	Header

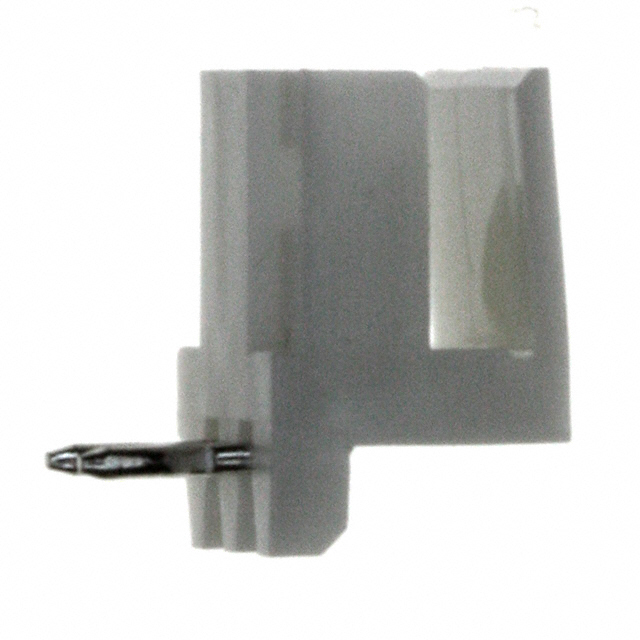

TE Connectivity Raychem Cable Protection 292250-2	Kinked Pin Solder	Shrouded - 4 Wall	5.8 mm	0.228 in	3.2 mm	0.126 in	Polyamide (PA66) Nylon 6/6	Tin	Brass	Through Hole Right Angle	Natural	0.079 in	2 mm	Detent Lock	Male Pin	Board to Cable/Wire	General Purpose	125 VAC	Varies by Wire Gauge	4.2 mm	0.165 in	1	All	UL94 V-0	Square	Header	2
TE Connectivity Raychem Cable Protection 2-292250-4	Kinked Pin Solder	Shrouded - 4 Wall	5.8 mm	0.228 in	3.2 mm	0.126 in	Polyamide (PA66) Nylon 6/6	Tin	Brass	Through Hole Right Angle	Blue	0.079 in	2 mm	Detent Lock	Male Pin	Board to Cable/Wire	General Purpose	125 VAC	Varies by Wire Gauge	4.2 mm	0.165 in	1	All	UL94 V-0	Square	Header	4

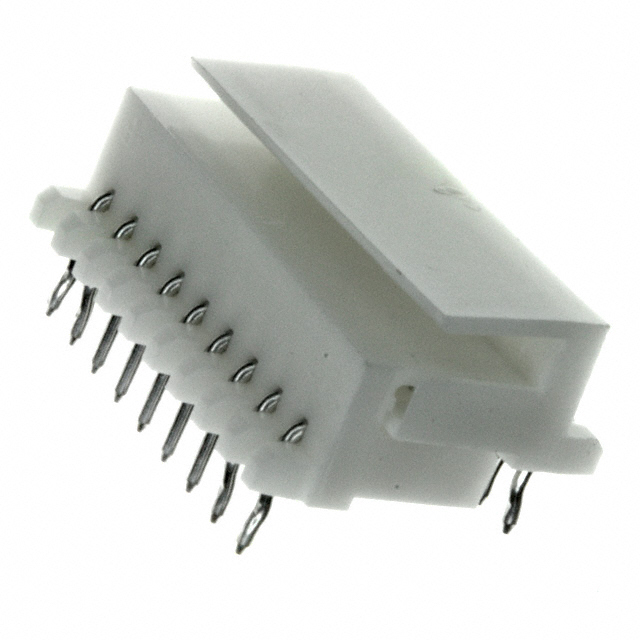

TE Connectivity Raychem Cable Protection 292250-9	Kinked Pin Solder	Shrouded - 4 Wall	5.8 mm	0.228 in	3.2 mm	0.126 in	Polyamide (PA66) Nylon 6/6	Tin	Brass	Through Hole Right Angle	Natural	0.079 in	2 mm	Detent Lock	Male Pin	Board to Cable/Wire	General Purpose	125 VAC	Varies by Wire Gauge	4.2 mm	0.165 in	1	All	UL94 V-0	Square	Header	9
TE Connectivity Raychem Cable Protection 1-292250-0	Kinked Pin Solder	Shrouded - 4 Wall	5.8 mm	0.228 in	3.2 mm	0.126 in	Polyamide (PA66) Nylon 6/6	Tin	Brass	Through Hole Right Angle	Natural	0.079 in	2 mm	Detent Lock	Male Pin	Board to Cable/Wire	General Purpose	125 VAC	Varies by Wire Gauge	4.2 mm	0.165 in	1	All	UL94 V-0	Square	Header	10
