810 Series

Catalog

CMC 4MH 1.7A 2LN TH

Part	Height (Max) [Max] [z]	Height (Max) [z]	Number of Lines	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	DC Resistance (DCR) (Max)	Current Rating (Max) [Max]	Height (Max) [Max] [z]	Size / Dimension [y]

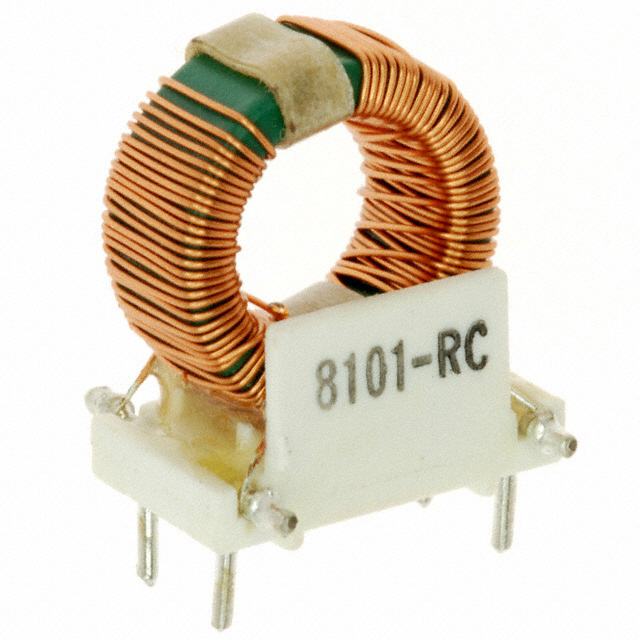

Bourns Inc. 8101	0.9 in	22.86 mm	2	1 kHz 4 mH	173 mOhm	Through Hole	10.8 mm	0.76 "	19.3 mm	0.425 in	-55 C	105 ░C	Vertical 4 PC Pin

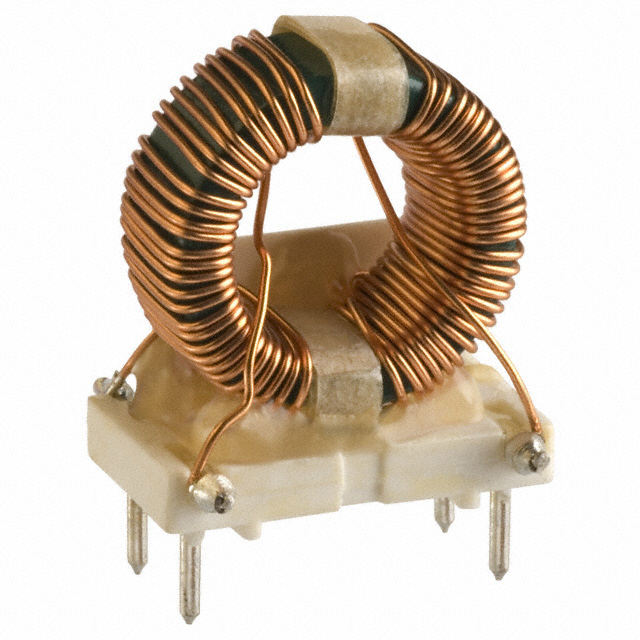

Bourns Inc. 8102	0.9 in	22.86 mm	2	1 kHz 2.5 mH		Through Hole	10.8 mm	0.76 "	19.3 mm	0.425 in	-55 C	105 ░C	Vertical 4 PC Pin	90 mOhm	2.4 A
Bourns Inc. 8104	1.2 in		2	10 mH	170 mOhm	Through Hole		1.2 in	30.48 mm	0.6 in	-55 C	105 ░C	Vertical 4 PC Pin		2.4 A	30.48 mm	15.24 mm
