LS1561 Series

Catalog

SWITCH ROCKER SPDT 15A 125V

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Actuator Marking	Mounting Type	Voltage Rating - DC	Termination Style	Color - Actuator/Cap	Actuator Type	Illumination Voltage (Nominal)	Switch Function	Circuit	Illumination Type, Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Carling Technologies LS1561-33-BL-BL-006	50000 Cycles	-17.8 °C	65.6 °C	125 V	15 A	No Marking	Panel Mount Snap-In	28 V	Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved) - Illuminated	6 VAC	On-Off-On	SPDT	Green Incandescent	36.83 mm	21.08 mm
Carling Technologies LS1561-13-BL-BL-012	50000 Cycles	-17.8 °C	65.6 °C	125 V	15 A	No Marking	Panel Mount Snap-In	28 V	Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved) - Illuminated	12 VAC/DC	On-Off-On	SPDT	Clear Green Incandescent Red	36.83 mm	21.08 mm

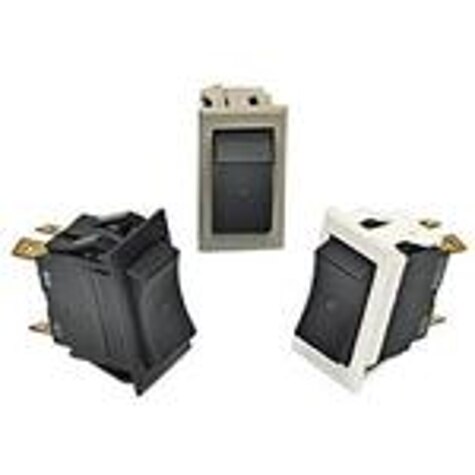

Carling Technologies LS1561-31-BL-BL-012	50000 Cycles	-17.8 °C	65.6 °C	125 V	15 A	No Marking	Panel Mount Snap-In	28 V	Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved) - Illuminated	12 VAC/DC	On-Off-On	SPDT	Clear Green Incandescent Red	36.83 mm	21.08 mm
Carling Technologies LS1561-33-BL-BL-012	50000 Cycles	-17.8 °C	65.6 °C	125 V	15 A	No Marking	Panel Mount Snap-In	28 V	Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved) - Illuminated	12 VAC/DC	On-Off-On	SPDT	Clear/Green Incandescent	36.83 mm	21.08 mm
Carling Technologies LS1561-11-BL-BL-012	50000 Cycles	-17.8 °C	65.6 °C	125 V	15 A	No Marking	Panel Mount Snap-In	28 V	Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved) - Illuminated	12 VAC/DC	On-Off-On	SPDT	Clear/Red Incandescent	36.83 mm	21.08 mm
