ECQ-UAAF224 Series

Catalog

CAP FILM 0.22UF 20% 275VAC RAD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Package / Case	Ratings	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Capacitance	Applications	Mounting Type	Voltage Rating - AC

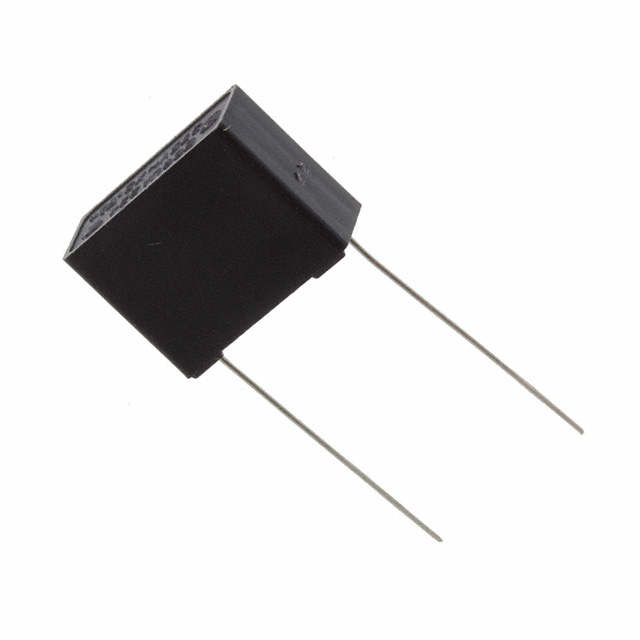

Panasonic Industrial Automation Sales ECQ-UAAF224S1	-40 °C	110 °C	20 %	17.5 mm	7.5 mm	0.295 in	0.689 in	Metallized Polypropylene (PP)	Radial	AEC-Q200 X2	15 mm	0.591 in	0.571 in	14.5 mm	PC Pins	0.22 µF	Automotive EMI RFI Suppression	Through Hole	275 V

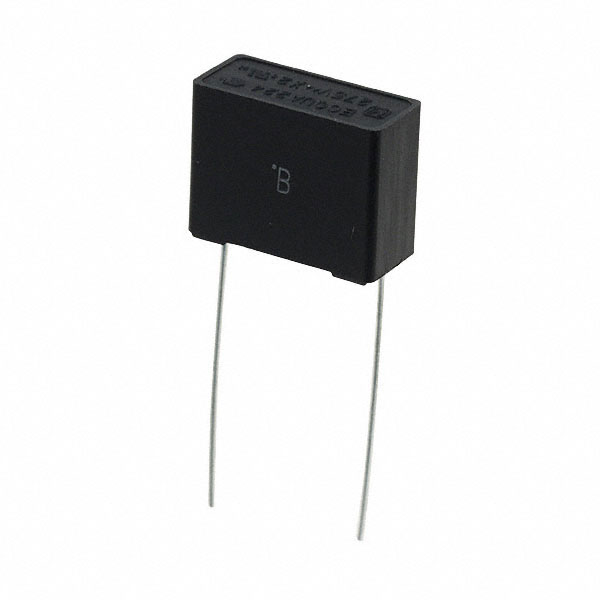

Panasonic Industrial Automation Sales ECQ-UAAF224M	-40 °C	110 °C	20 %	17.5 mm	7.5 mm	0.295 in	0.689 in	Metallized Polypropylene (PP)	Radial	X2	15 mm	0.591 in	0.571 in	14.5 mm	PC Pins	0.22 µF	EMI RFI Suppression	Through Hole	275 V

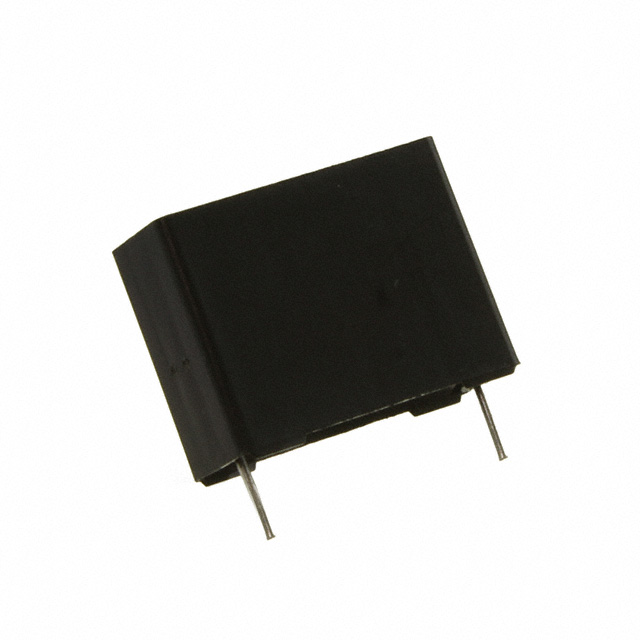

Panasonic Industrial Automation Sales ECQ-UAAF224TA	-40 °C	110 °C	10 %	17.5 mm	7.5 mm	0.295 in	0.689 in	Metallized Polypropylene (PP)	Radial	AEC-Q200 X2	15 mm	0.591 in	0.571 in	14.5 mm	PC Pins	0.22 µF	Automotive EMI RFI Suppression	Through Hole	275 V
