320665 Series

Catalog

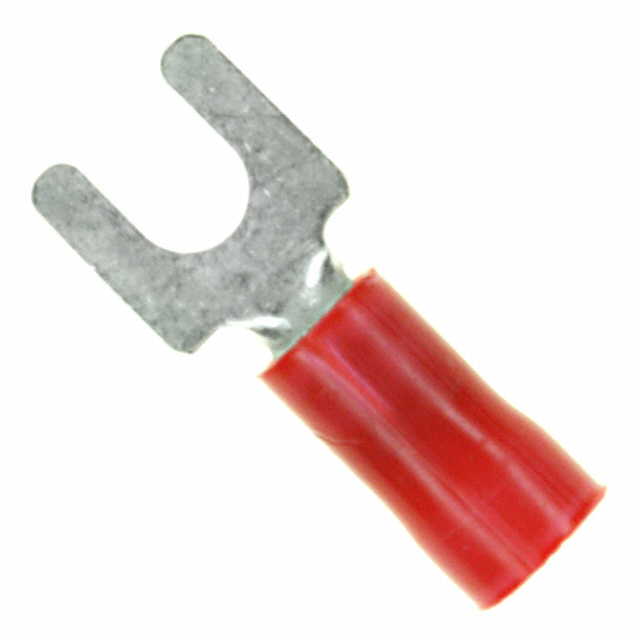

CONN SPADE TERM 16-22AWG #6 RED

Part	Color	Stud/Tab Size	Contact Material	Length - Overall [x]	Length - Overall [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Mounting Type	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Features	Material - Insulation	Termination	Length - Termination	Length - Termination	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity Raychem Cable Protection 8-320665-1	Red	6 Stud	Copper	19.43 mm	0.765 in	3.68 mm	0.145 in	Free Hanging (In-Line)	0.203 in	5.16 mm	0.297 in	7.54 mm	Insulated	Standard	22 AWG	16 AWG	Serrated Termination	Poly-Vinyl Chloride (PVC)	Crimp	10.57 mm	0.416 in	0.14 in	0.105 in	3.56 mm	2.67 mm
