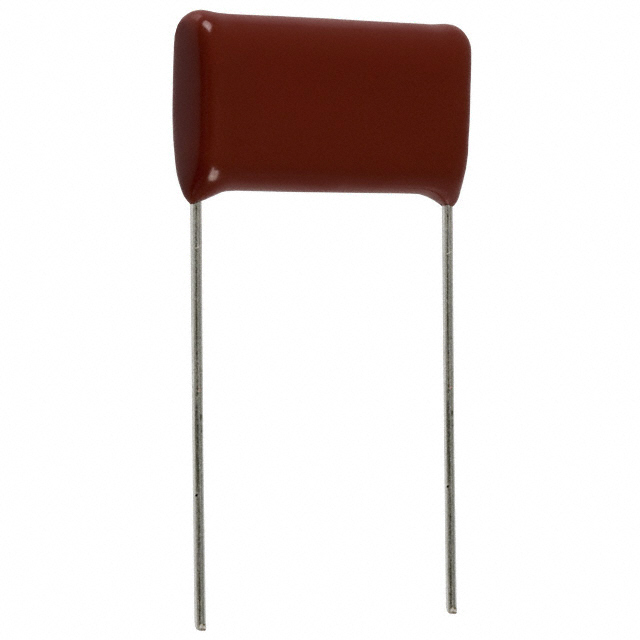

ECQ-E4564 Series

Catalog

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PET, RADIAL BOX - 2 PIN, 0.56 ΜF, ± 10%, 200 V, 400 V

Part	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Voltage Rating - DC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Tolerance	Package / Case	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Applications
Panasonic Electronic Components ECQ-E4564KF	PC Pins	0.669 "	17 mm	400 V	Through Hole	-40 C	105 ░C	Polyester Metallized	10 %	Radial	560 nF	6.5 mm	26 mm	0.256 "	1.024 in	0.886 in	22.5 mm	General Purpose
Panasonic Electronic Components ECQ-E4564JFB	PC Pins	0.827 "	21 mm	400 V	Through Hole	-40 C	105 ░C	Polyester Metallized	5 %	Radial	560 nF	6.5 mm	26 mm	0.256 "	1.024 in	0.591 in	15 mm	General Purpose
Panasonic Electronic Components ECQ-E4564JF	PC Pins	0.669 "	17 mm	400 V	Through Hole	-40 C	105 ░C	Polyester Metallized	5 %	Radial	560 nF	6.5 mm	26 mm	0.256 "	1.024 in	0.886 in	22.5 mm	General Purpose
