2928 Series

Catalog

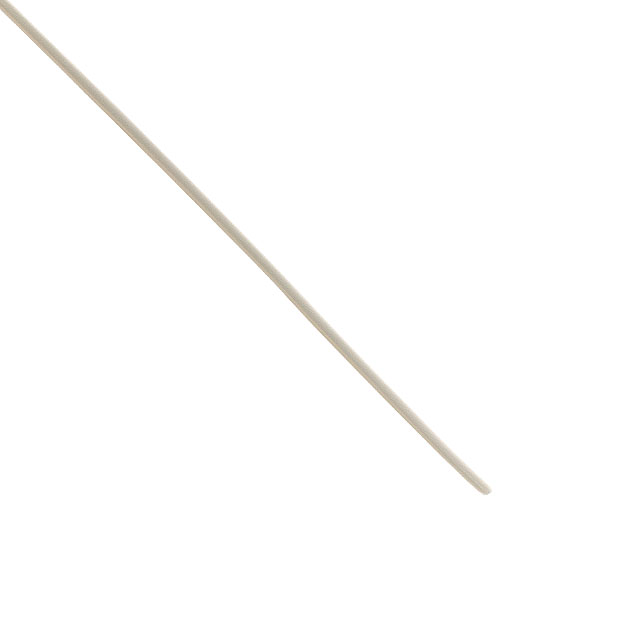

HOOK-UP STRND 28AWG WHITE 100'

Part	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Voltage	Conductor Material	Features	Jacket Color	Length	Length
ALPHA WIRE 2928 WH005	UL Style 11540	300 °C	-150 °C	30.5 m	100 ft	Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant
ALPHA WIRE 2928 SL005	UL Style 11540	300 °C	-150 °C	30.5 m	100 ft	Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant	Slate
ALPHA WIRE 2928 YL001	UL Style 11540	300 °C	-150 °C			Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant	Yellow	1000 ft	304.8 m
ALPHA WIRE 2928 BK001	UL Style 11540	300 °C	-150 °C			Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant	Black	1000 ft	304.8 m
ALPHA WIRE 2928 VI001	UL Style 11540	300 °C	-150 °C			Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant	Violet	1000 ft	304.8 m
ALPHA WIRE 2928 WH001	UL Style 11540	300 °C	-150 °C			Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant		1000 ft	304.8 m
ALPHA WIRE 2928 BL001	UL Style 11540	300 °C	-150 °C			Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant	Blue	1000 ft	304.8 m
ALPHA WIRE 2928 OR001	UL Style 11540	300 °C	-150 °C			Hook-Up	0.004 in	0.09 mm	0.58 mm	0.023 in	36 AWG	7	28 AWG	600 V	Copper Nickel Coated	Chemical Resistant High Temperature UV Resistant	Orange	1000 ft	304.8 m
