2406858 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

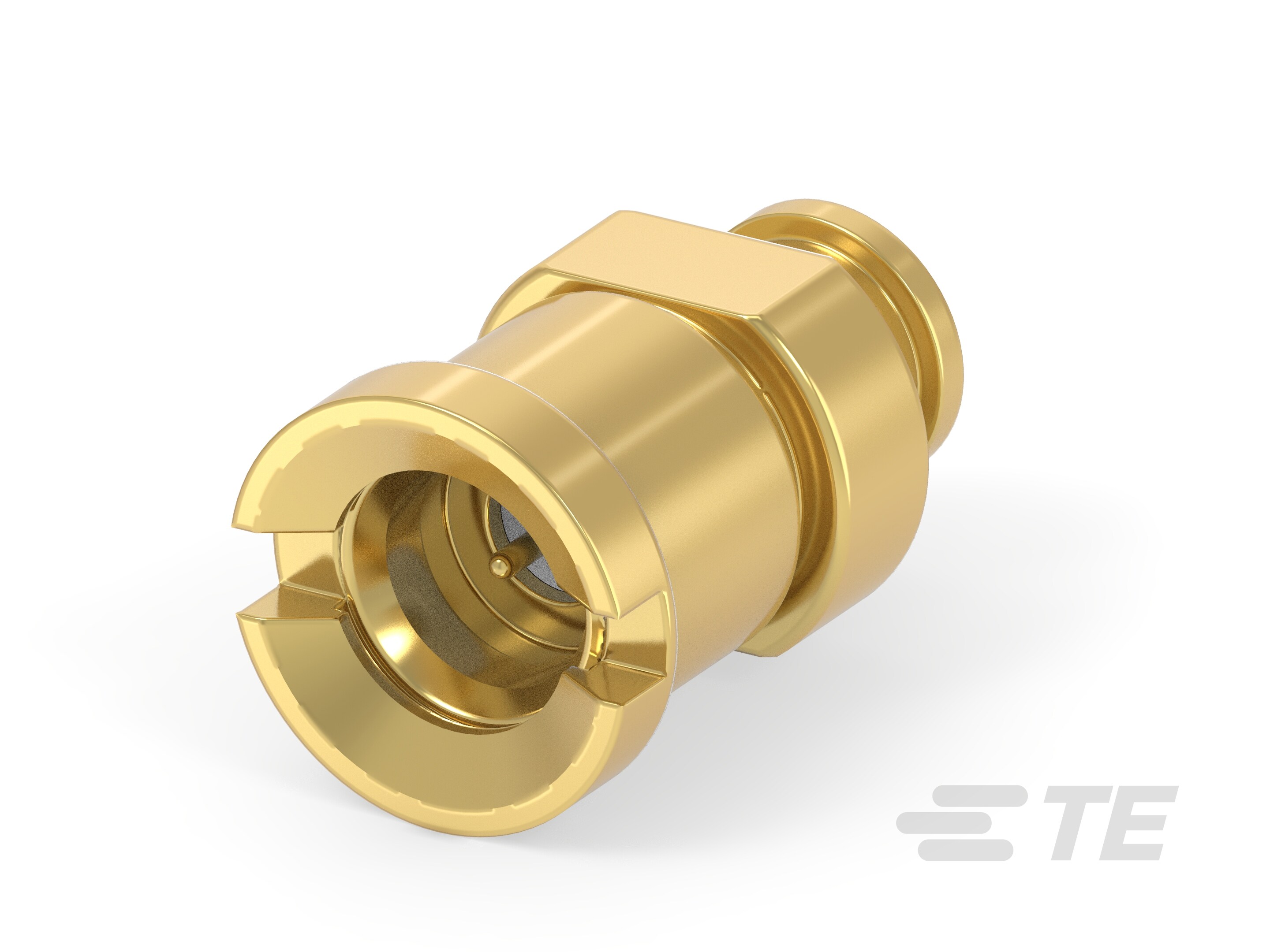

SMP PLUG LD ST SOLDER PTSRB-085 CABLE
| Part | Connector Type | Frequency - Max [Max] | Mounting Type | Fastening Type | Center Contact Material | Body Finish | Number of Ports | Body Material | Voltage Rating | Cable Group | Contact Termination | Housing Color | Mating Cycles | Shield Termination | Operating Temperature [Max] | Operating Temperature [Min] | Impedance | Dielectric Material | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pin Plug | 40 GHz | Free Hanging (In-Line) | Snap-On | Beryllium Copper | Gold | 1 | Brass | 175 VDC | RG-405 (.085" Semi Rigid) | Solder | Gold | 500 | Solder | 125 °C | -40 °C | 50 Ohms | Polytetrafluoroethylene (PTFE) | Gold |
