PPPC022 Series

Catalog

CONN HDR 4POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Post	Contact Type	Number of Rows [custom]	Termination	Mounting Type	Contact Finish - Mating	Voltage Rating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

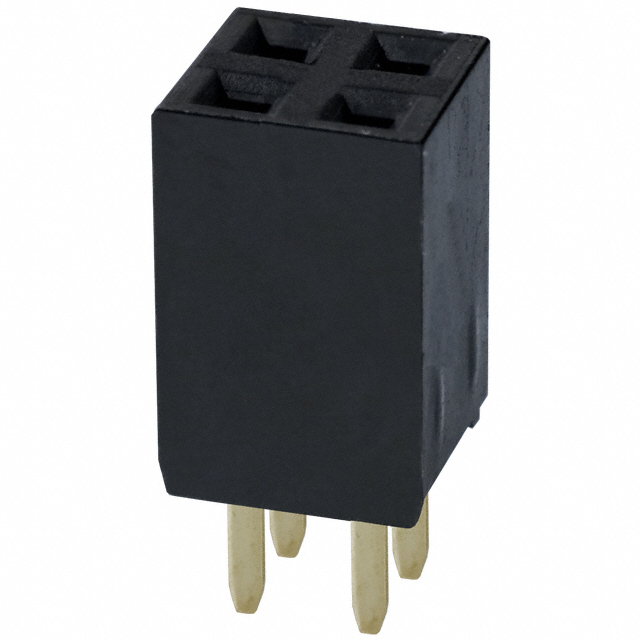

Sullins Connector Solutions PPPC022LFBN	Polyester	Square	Flash	Phosphor Bronze	0.1 "	2.54 mm	Push-Pull	0.126 "	3.2 mm	0.335 "	8.51 mm	Black	Gold	Female Socket	2	Solder	Through Hole	Gold	250 V	UL94 V-0	0.1 in	2.54 mm	All	3 A	4	Flash	Header	-40 C	105 ░C

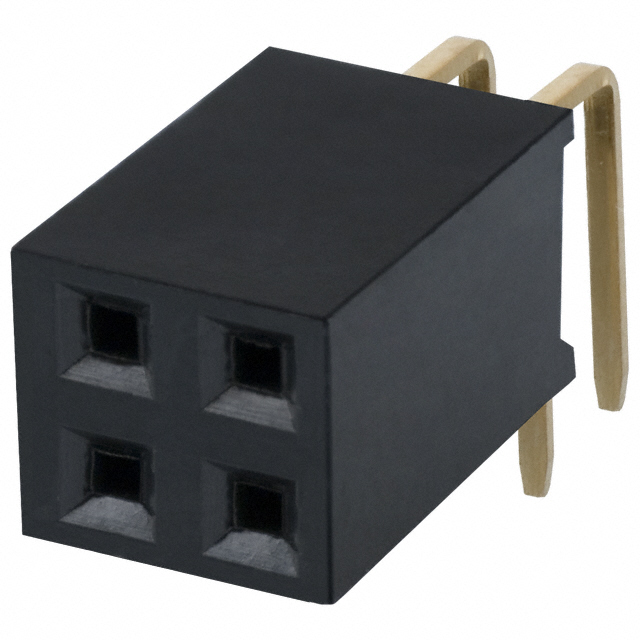

Sullins Connector Solutions PPPC022LJBN	Polyester	Square	Flash	Phosphor Bronze	0.1 "	2.54 mm	Push-Pull					Black	Gold	Female Socket	2	Solder	Right Angle Through Hole	Gold	250 V	UL94 V-0	0.1 in	2.54 mm	All	3 A	4	Flash	Header	-40 C	105 ░C	0.2 in	5.08 mm	0.124 in	3.15 mm
