1546931 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK HDR 14POS VERT 5MM

Part	Type	Contact Mating Finish	Color	Number of Levels	Voltage - UL	Material Flammability Rating	Termination Style	Positions Per Level	Header Orientation	Mounting Type	Features	Contact Material	Current - UL	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Number of Positions	Housing Material
TE Connectivity Raychem Cable Protection 1-1546931-4	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	14	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm	14

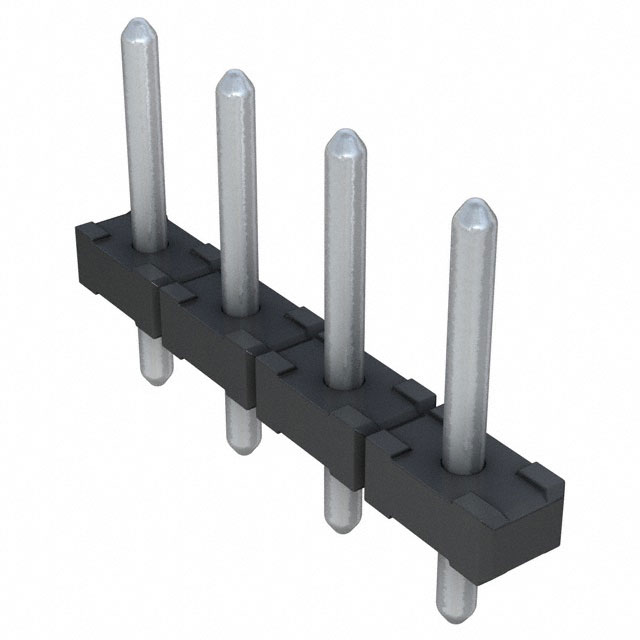

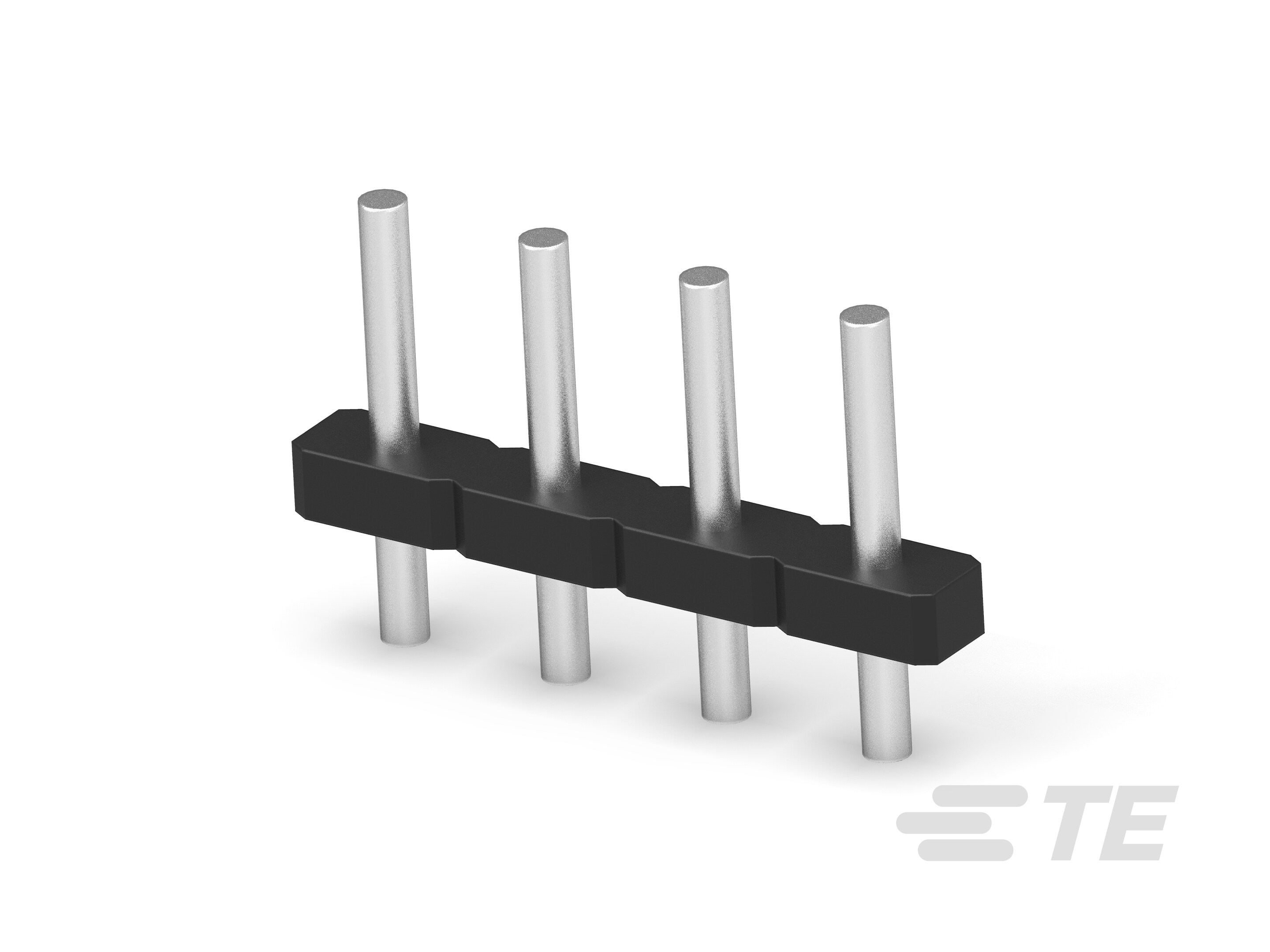

TE Connectivity Raychem Cable Protection 1546931-4	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	4	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm	4
TE Connectivity Raychem Cable Protection 1-1546931-9	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	19	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm	19

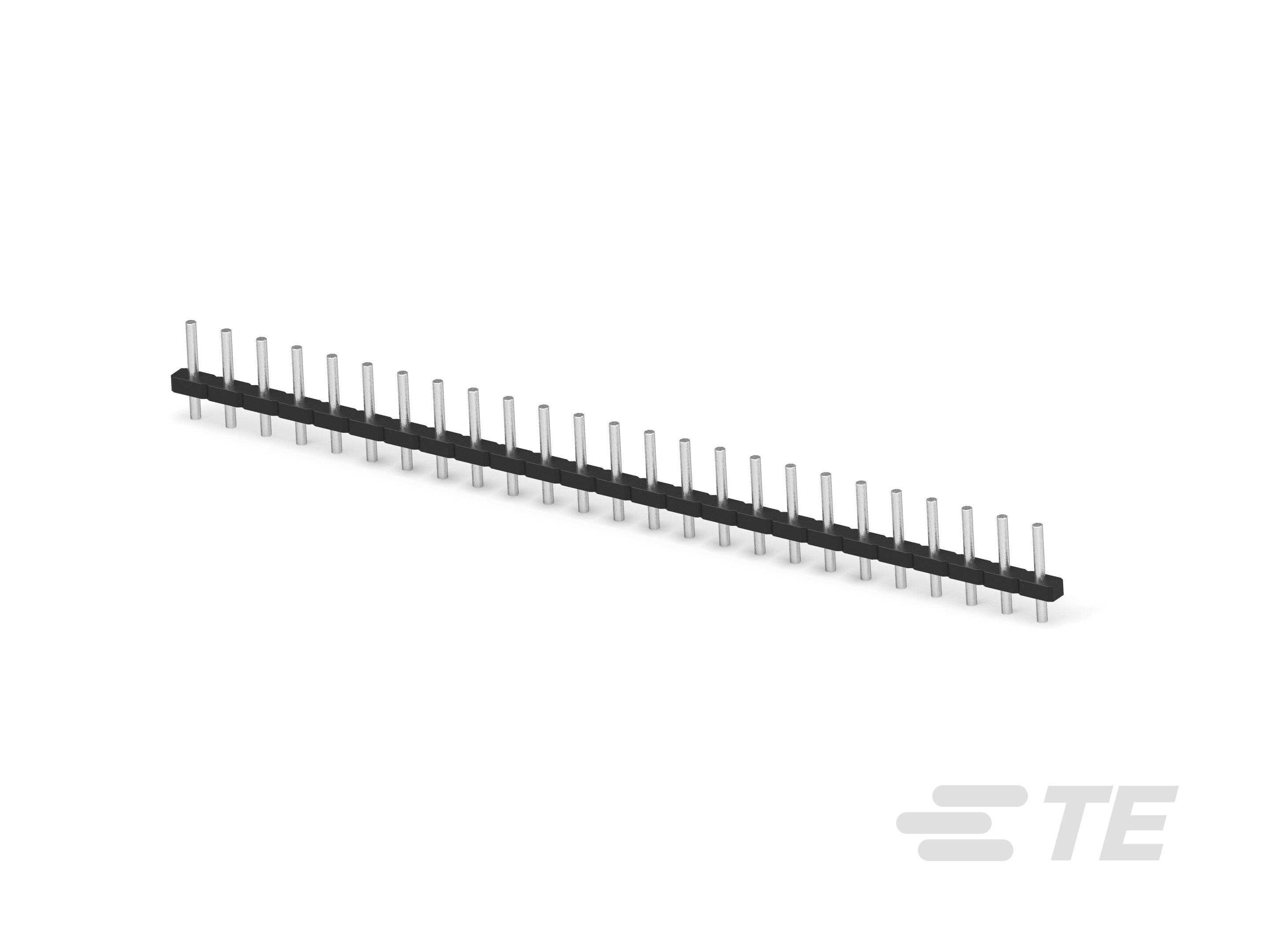

TE Connectivity Raychem Cable Protection 2-1546931-5	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	25	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-1546931-2	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	12	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm	12
TE Connectivity Raychem Cable Protection 1-1546931-7	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	17	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1546931-7	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	7	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm	7
TE Connectivity Raychem Cable Protection 3-1546931-2	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	3	Vertical	Through Hole	Side Stacking (Interlocking)	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm		Polyamide (PA) Nylon

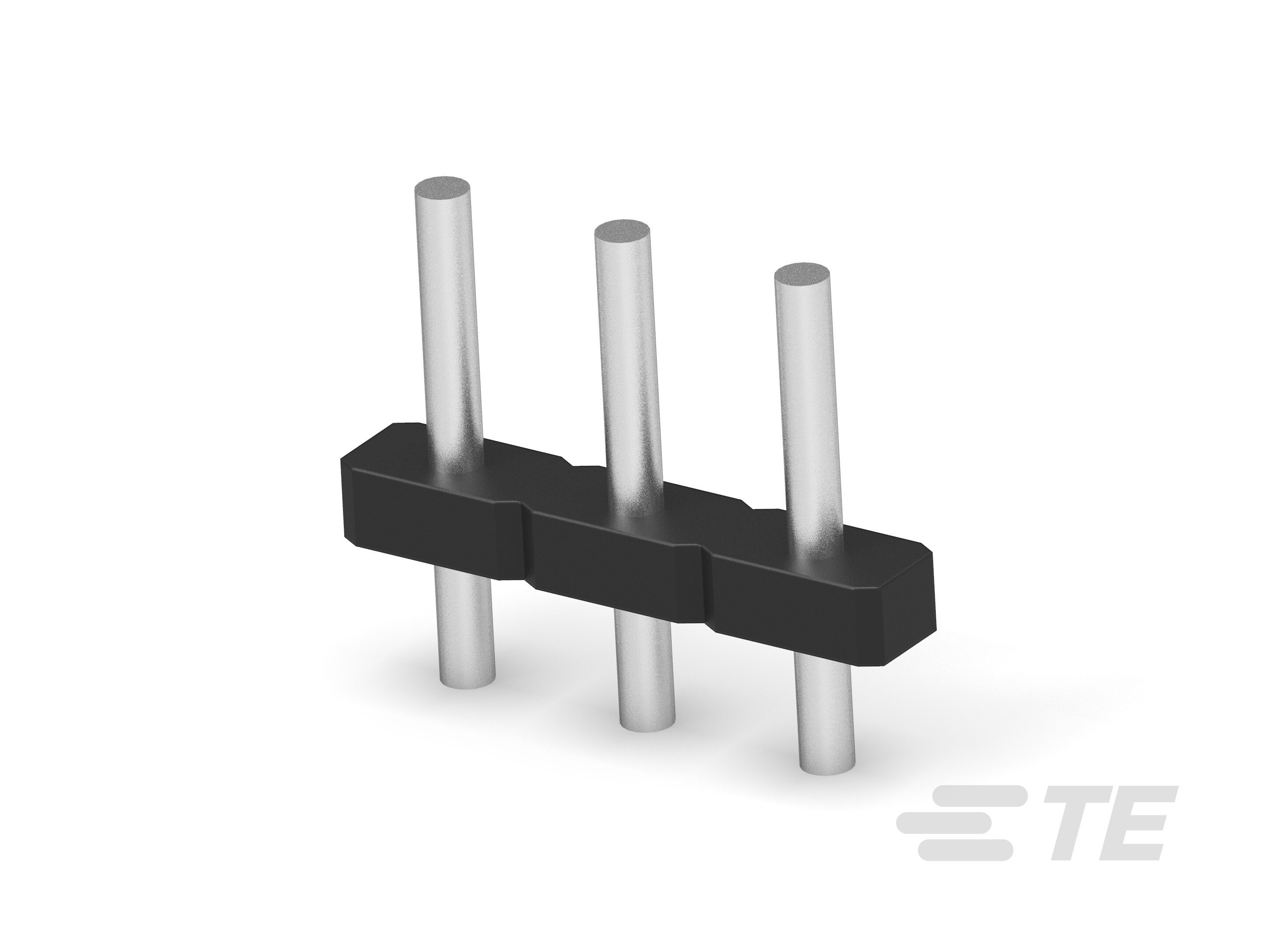

TE Connectivity Raychem Cable Protection 1546931-3	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	3	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-1546931-0	Header Male Pins Unshrouded	Tin	Black	1	300 V	UL94 V-0	Solder	10	Vertical	Through Hole	Side Stacking	Brass	12 A	3.5 mm	0.138 in	5 mm	0.197 in	0.079 in	2 mm	10
