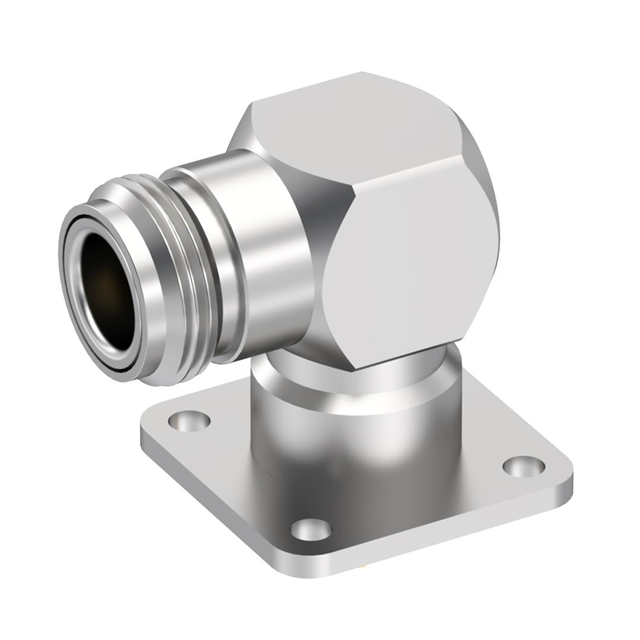

R16165 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
N F RA SQF C50
| Part | Voltage Rating | Dielectric Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Mating Cycles | Connector Style | Connector Type | Impedance | Center Contact Material | Frequency - Max [Max] | Mounting Type | Fastening Type | Contact Termination | Number of Ports | Shield Termination | Mounting Feature | Insertion Loss | Body Finish | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1400 V | Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | Brass | 500 | N Type | Female Socket Jack | 50 Ohms | Beryllium Copper | 11 GHz | Panel Mount Right Angle | Threaded | Solder Cup | 1 | Solder | Flange | |||
 Radiall USA, Inc. | 1400 V | Polytetrafluoroethylene (PTFE) | Gold | 155 C | -55 C | Brass | 500 | N Type | Female Socket Jack | 50 Ohms | Beryllium Copper | 11 GHz | Panel Mount Right Angle | Threaded | Solder Cup | 1 | Solder | Flange | 0.15 dB | White Bronze | Silver |
