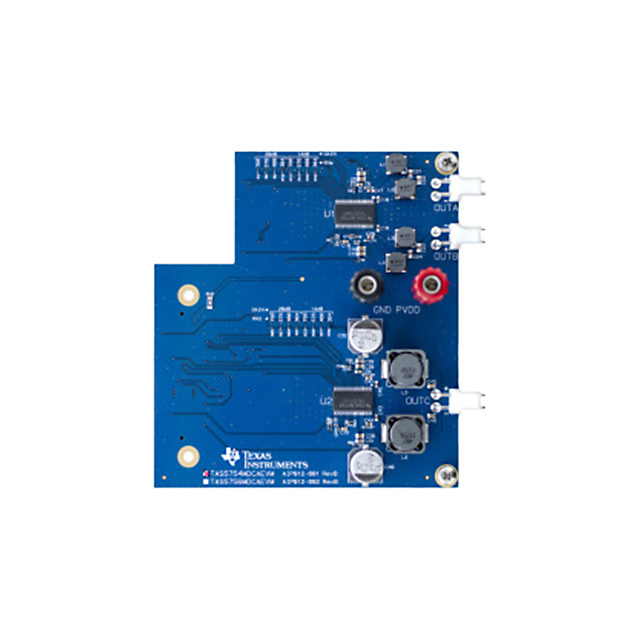

TAS5756M Series
30-W stereo, 40-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier
Manufacturer: Texas Instruments
Catalog
30-W stereo, 40-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier
Key Features
• Flexible Audio I/O ConfigurationSupports I2S, TDM, LJ, RJ Digital Input8 kHz to 192 kHz Sample Rate SupportStereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) OperationBD Amplifier ModulationSupports 3-Wire Digital Audio Interface (No MCLK required)High-Performance Closed-Loop Architecture (PVDD = 12V, RSPK= 8 Ω, SPK_GAIN = 20 dBV)Idle Channel Noise = 56 µVrms (A-Wtd)THD+N = 0.006 % (at 1 W, 1 kHz)SNR = 104 A-Wtd (Ref. to THD+N = 1%)PurePath HybridFlow Processing ArchitectureSeveral Configurable MiniDSP Programs (called HybridFlows)Download Time <100 ms (typ)Advanced Audio Processing AlgorithmsCommunication FeaturesSoftware Mode Control via I2C PortTwo Address Select Pins – Up to 4 DevicesRobustness and Reliability FeaturesClock Error, DC, and Short-Circuit ProtectionOver Temperature and Overcurrent ProtectionFlexible Audio I/O ConfigurationSupports I2S, TDM, LJ, RJ Digital Input8 kHz to 192 kHz Sample Rate SupportStereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) OperationBD Amplifier ModulationSupports 3-Wire Digital Audio Interface (No MCLK required)High-Performance Closed-Loop Architecture (PVDD = 12V, RSPK= 8 Ω, SPK_GAIN = 20 dBV)Idle Channel Noise = 56 µVrms (A-Wtd)THD+N = 0.006 % (at 1 W, 1 kHz)SNR = 104 A-Wtd (Ref. to THD+N = 1%)PurePath HybridFlow Processing ArchitectureSeveral Configurable MiniDSP Programs (called HybridFlows)Download Time <100 ms (typ)Advanced Audio Processing AlgorithmsCommunication FeaturesSoftware Mode Control via I2C PortTwo Address Select Pins – Up to 4 DevicesRobustness and Reliability FeaturesClock Error, DC, and Short-Circuit ProtectionOver Temperature and Overcurrent Protection
Description
AI
The TAS5756M device is a high-performance, stereo closed-loopamplifier with integrated audio processor with architecture. To convertfrom digital to analog, the device uses a high performance DAC withBurr-Brown mixed signal heritage.It requires only two power supplies; one DVDD for low-voltage circuitry and one PVDD forhigh-voltage circuitry. It is controlled by a software control port using standardI2C communication. In the family, theTAS5756M uses traditional BD modulation, ensuring low distortion characteristics. The TAS5754M uses1SPW modulation to reduce output ripple current, the expense of slightly higher distortion.
The unique HybridFlow architecture allows the system designer tochoose from several configurable DSP programs that are specifically designed for use in popularaudio end equipment such as bluetooth (BT) speakers, sound bars, docking stations, and subwoofers.This architecture combines the flexibility of a fully programmable device with the fast downloadtime and ease of use of a fixed-function ROM device.
An optimal mix of thermal performance and device cost is provided in the90 mΩ rDS(on)of the output MOSFETs. Additionally, athermally enhanced 48-Pin HTSSOP provides excellent operation in the elevated ambienttemperatures found in modern consumer electronic devices.
The TAS5756M device is a high-performance, stereo closed-loopamplifier with integrated audio processor with architecture. To convertfrom digital to analog, the device uses a high performance DAC withBurr-Brown mixed signal heritage.It requires only two power supplies; one DVDD for low-voltage circuitry and one PVDD forhigh-voltage circuitry. It is controlled by a software control port using standardI2C communication. In the family, theTAS5756M uses traditional BD modulation, ensuring low distortion characteristics. The TAS5754M uses1SPW modulation to reduce output ripple current, the expense of slightly higher distortion.
The unique HybridFlow architecture allows the system designer tochoose from several configurable DSP programs that are specifically designed for use in popularaudio end equipment such as bluetooth (BT) speakers, sound bars, docking stations, and subwoofers.This architecture combines the flexibility of a fully programmable device with the fast downloadtime and ease of use of a fixed-function ROM device.
An optimal mix of thermal performance and device cost is provided in the90 mΩ rDS(on)of the output MOSFETs. Additionally, athermally enhanced 48-Pin HTSSOP provides excellent operation in the elevated ambienttemperatures found in modern consumer electronic devices.
